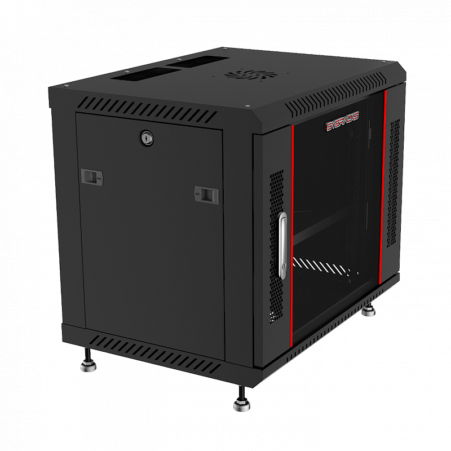

9U 24" Depth Wall Mount 19" Enclosure SRW 9.600

195 USD
3 reviews
Transit within 4-6 business days

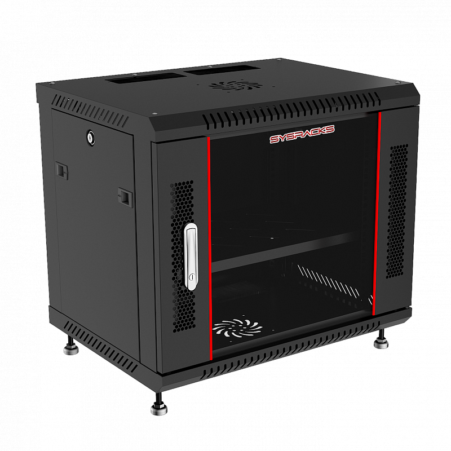

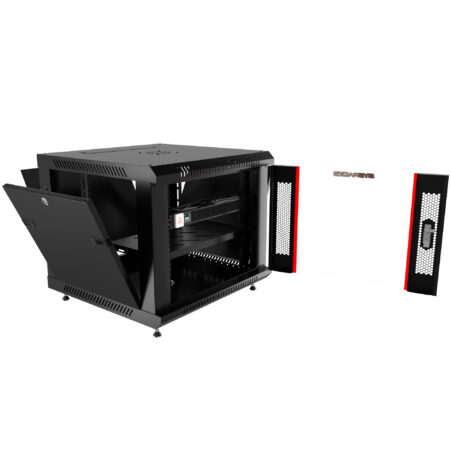

19" Wall Mount Server Rack Cabinet 9U (24"w x24"d x20"h) (600x600x501mm.) (WxDxH), Glass Door (1 PDU, 1 fan, 1 shelf, 4 feet, 2 brush cable entries)

Availability

In Stock

Weight

49 lbs

Width

24 in

Depth

24 in (600mm)

Front door

Glass

Size of package(-s)

27*27*10

Color

Height

9U

Rail-to-rail max distance

20 in (508mm)

Quantity of all packages

1pcs

Product information

Benefits
Overview
Instructions & Downloads
Specifications
Shipping cost estimation
Reviews(0)
  • Incredible Kit contents (1 PDU, 1 fan, 2 Brash cable inputs, 1 fix shelf, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs).
  • Active ventilation in base model
  • Brush strip panel for cable entry
  • Flat and compact packaging
  • Convenient to assemble design

Clear and simple installation

Design and Distinguishing Features The front door is equipped with effective perforation aimed at eliminating heated air from the server cabinet and ensuring optimal airflow distribution. The ultimate goal is to cool the hardware in a befitting way. The convenient snap lock not only gives the product a great look but also makes it much easier to access various parts of the equipment. The presence of a brush-type cable inlet guarantees almost one hundred percent protection of expensive components. It is capable of filtering a wide range of difficult-to-detect electrically conductive particles and foreign objects, including dust. Lockable, removable panels, along with doors, supplied together with a kit of two keys, provide a high level of security. Unauthorized persons won’t be able to perform any manipulations with your equipment or use your confidential data. Still, any employee having the appropriate authority will be in a position to easily install or update the equipment, as well as perform various maintenance tasks. Flexible, customizable mounting rails fitted with U-marking and special square orifices will allow you to harmoniously place a variety of devices and accessories within the internal space of your server room. The brand of the device being installed doesn’t matter. U-marking significantly simplifies and accelerates the pace of the installation process. Its availability also provides you with an opportunity to accurately determine the most suitable location for your equipment. The presence of 4 standing legs will allow you to turn your wall-mounted server cabinet into a full-fledged floor-standing model. However, you mustn’t exceed the defined load limit values, i.e., up to 133 pounds. You’ll be pleasantly surprised by the mounting kit supplied together with the server cabinet. You’ll receive 20 pieces of efficient M6 screws and nuts. The optimal external depth of 24 inches enables you to successfully install a broad spectrum of hardware, more specifically: audiovisual equipment, digital video recorders, routers, connecting panels, telecommunications equipment, etc. That’s why your future projects will be implemented without much hassle. You’ll be able to refit your server room at any time. The standard version of the 9U server cabinet with a depth of 24 inches, or 600 mm, is supplied with the following components:
  • Cooler in the upper part of the product

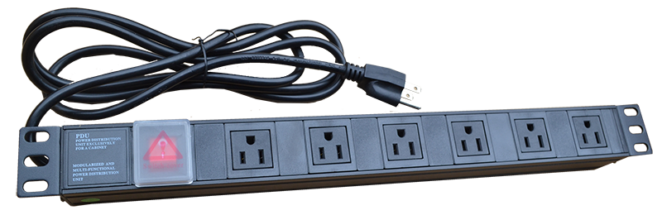

  • Power distribution unit

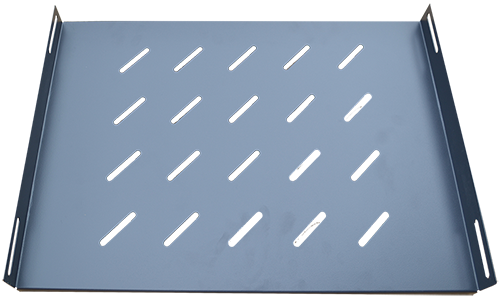

  • Firmly fixed shelf
  • 4 adjustable standing feet

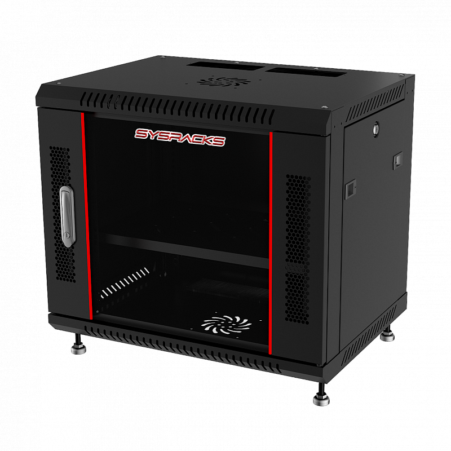

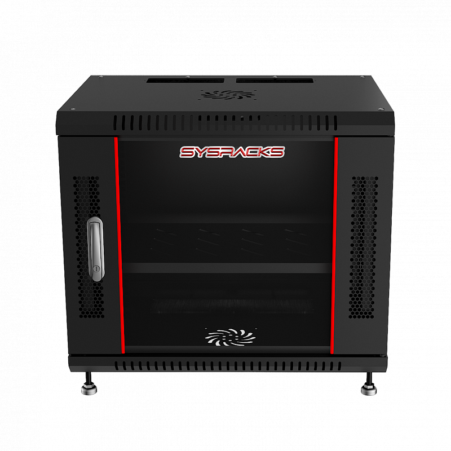

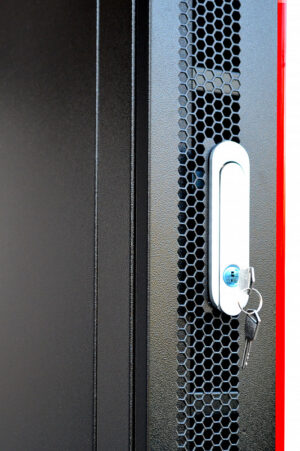

  • Front door made of glass and placed in a special metal frame equipped with perforation holes

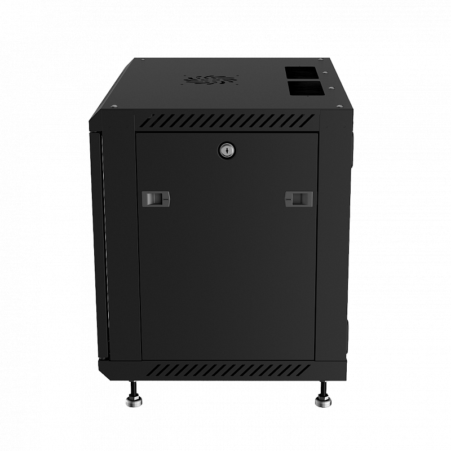

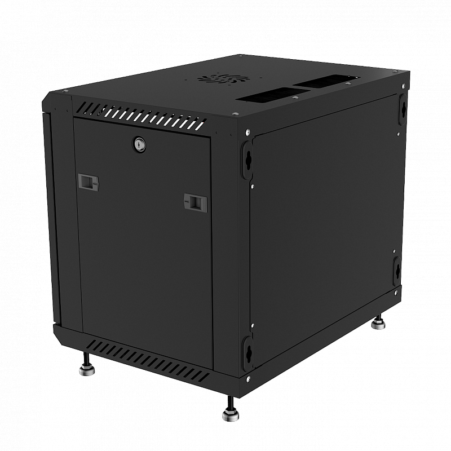

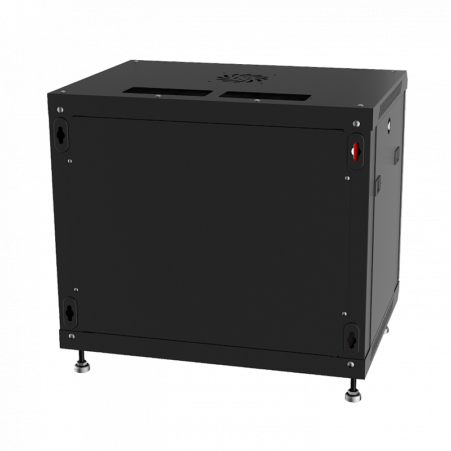

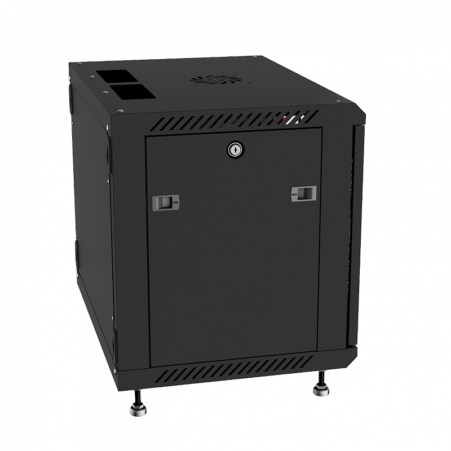

  • Easily lockable and removable doors and panels

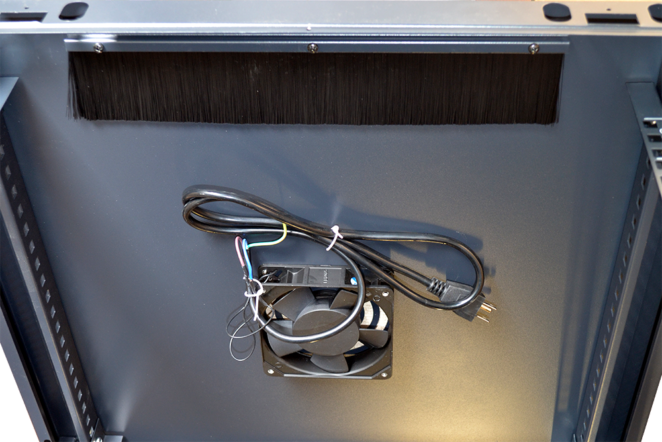

  • Brush-type panel for inserting cables, both in the upper and lower parts

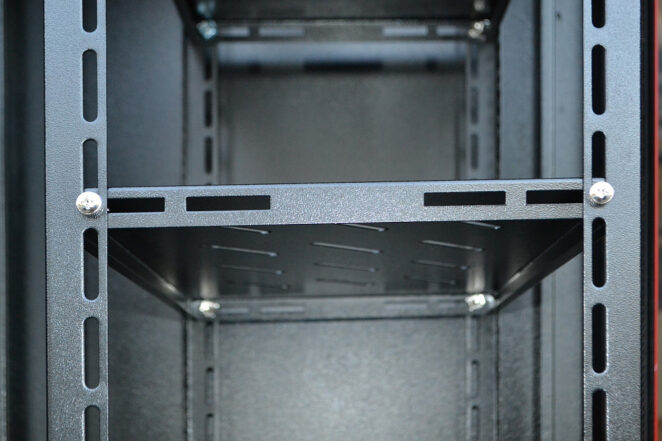

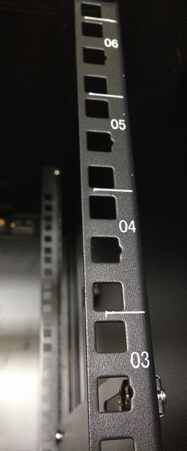

  • Convenient mounting rails fitted with U-marking

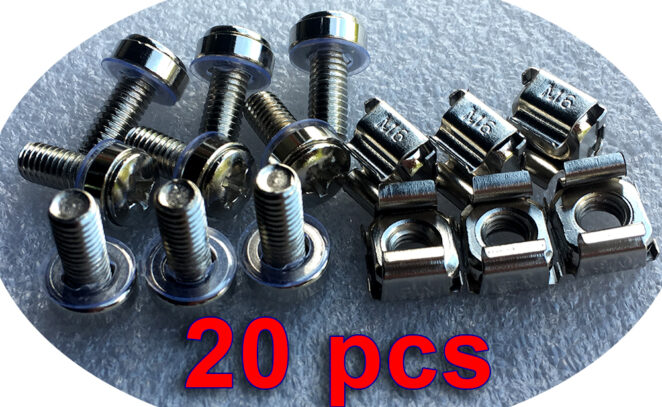

  • Set of mounting fixtures, 20 pcs.
Dimensions: 9U 24”X24”X20” The internal depth from the door to the rear panel is 24 inches. Device color: Black.

• Height of the enclosure: 9U (501 mm)
• Width: 24″(600mm);
• Depth: 24″(600mm)
Framework:

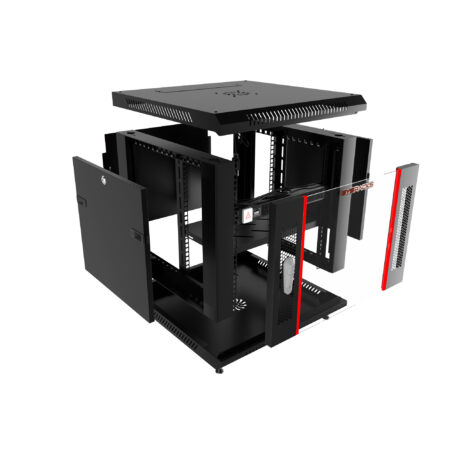

• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Kit contents: (1 PDU, 1 fans, 2 Brash cable entry, 1 fix shelf, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs)
