- Incredible Kit contents (1 PDU, 1 fan, 2 Brash cable inputs, 1 fix shelf, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs).
- Active ventilation in base model
- Brush strip panel for cable entry
- Flat and compact packaging
- Convenient to assemble design
Clear and simple installation

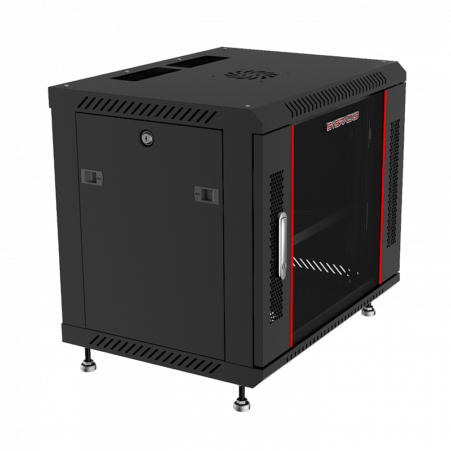

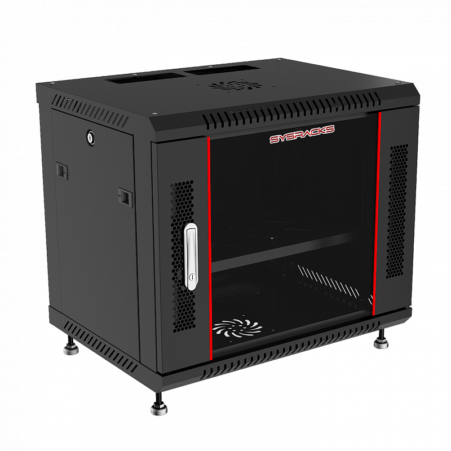

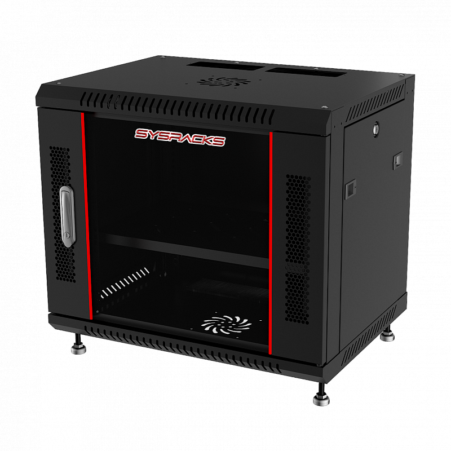

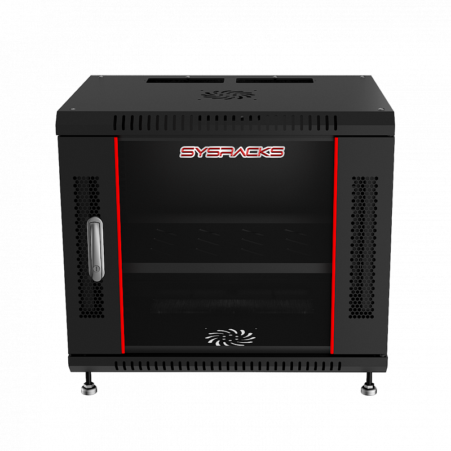

This practical, multi-faceted 19” wall-mounted enclosure is suitable for a broad spectrum of IT projects. If you purchase it, you’ll have a chance to keep your hardware in a secure lockable device. The product is characterized by increased strength thanks to the use of welded frames. It also has a modern, slick look and is capable of improving your workspace.
Exterior Design and Key Characteristics

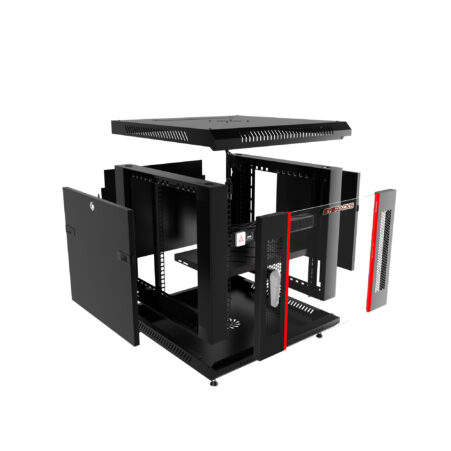

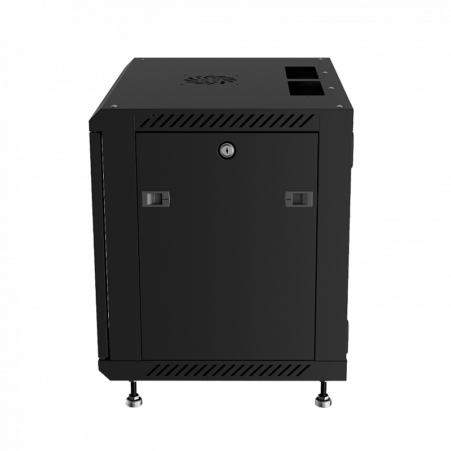

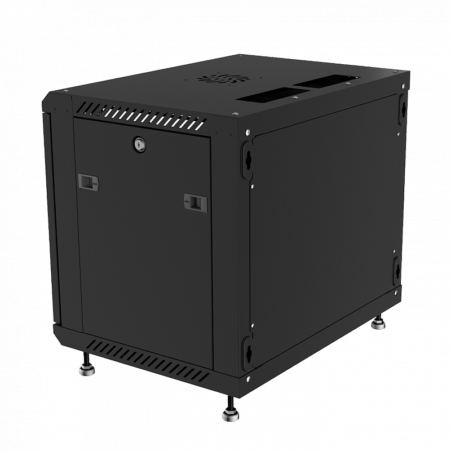

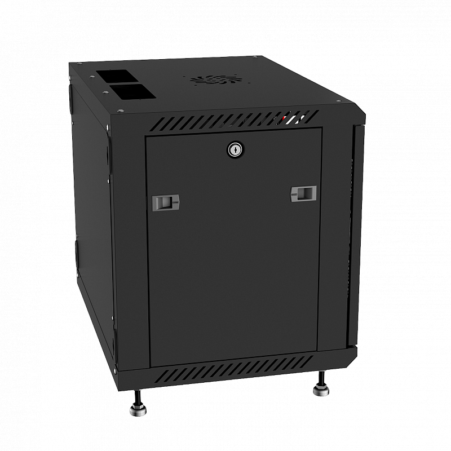

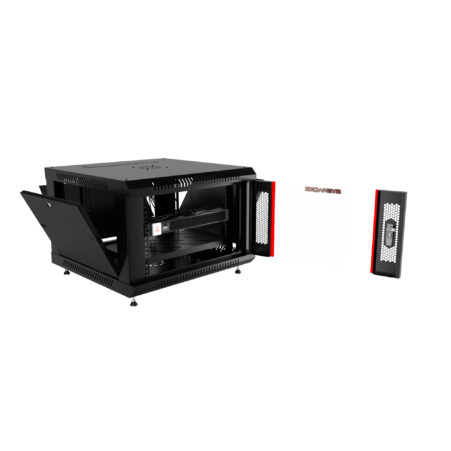

The front door, along with the side panels, can be easily closed and, where necessary, removed, thereby substantially facilitating both installation and maintenance. These components can also assist you in ensuring a high degree of protection against dangerous acts of malefactors doing their best to interfere with your server environment or get your sensitive data.
Flexible mounting rails with a special U-marking will be appreciated by a lot of technical specialists. You’ll be able to fine-tune these parts to meet the needs of your IT infrastructure. What’s more, by using them, you can easily identify the most appropriate area to place the equipment.
The eternal depth of 24” appears to be an optimum choice for a wide array of routers, switches, digital video recorders, AV and comms equipment, etc. Plus, you’ll have enough clearance for a well-organized cable supply and airflow distribution.
Apart from everything else, there are plenty of perforation orifices both in the upper and lower sections of the cabinet. They are aimed at improving air circulation and eliminating superfluous heated air from the active working area.
The base model is supplied with the following components:
- Cooler in the upper part of the cabinet;

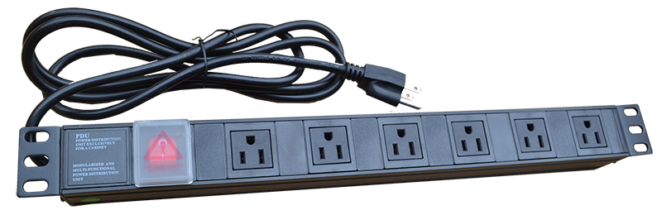

- Power distribution device;

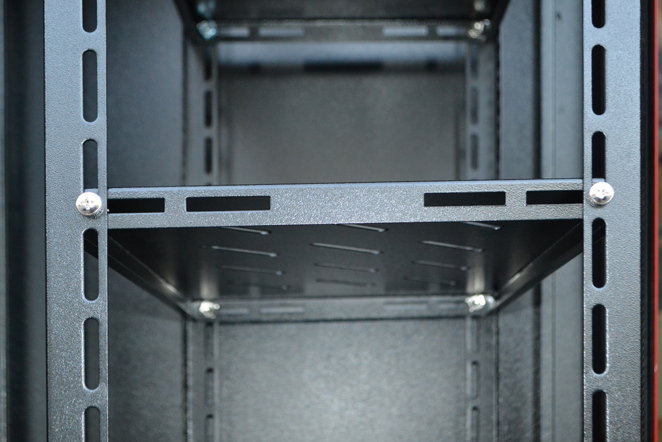

- Fixed shelf;
- Four flexible feet;

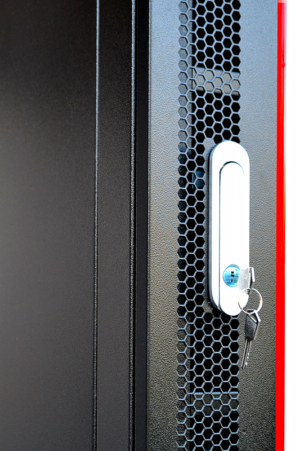

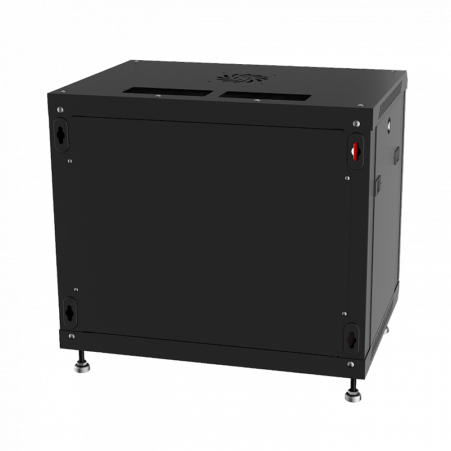

- Lockable and detachable front door, side and rear panels;
- A brush strip panel for inserting an electric cable (both in the upper and lower part of the product);

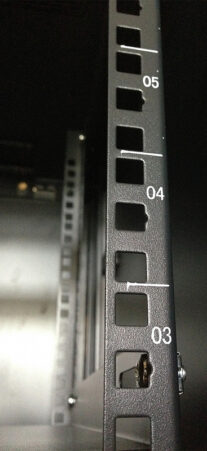

- U-marking on mounting rails;

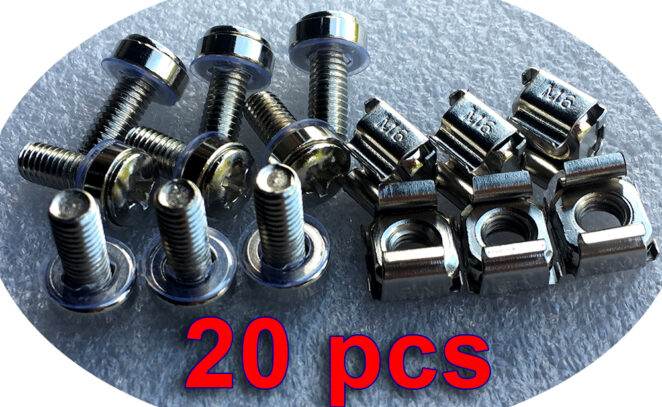

- A full kit of 20 bolts and nuts.
Dimensions
- Width: 24”
- Depth: 18”
- Height: 20”
- The rollers significantly increase the height by as much as 3 inches
- Internal depth: 18 inches—from the front door to the back panel
- Maximum distance from bus to bus: 20 inches
- Maximum permissible load: up to 133 pounds
- Color: Black, RAL9005
• Height of the enclosure: 9U (501 mm)
• Width: 24″(600mm);
• Depth: 18″(450mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Kit contents: (1 PDU, 1 fans, 2 Brash cable entry, 1 fix shelf, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs)
