- Incredible Kit contents (1 PDU, 1 fan, 2 Brash cable inputs, 1 fix shelf, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs).
- Active ventilation in base model
- Brush strip panel for cable entry
- Flat and compact packaging
- Convenient to assemble design
Clear and simple installation
Design Features and Technical Data

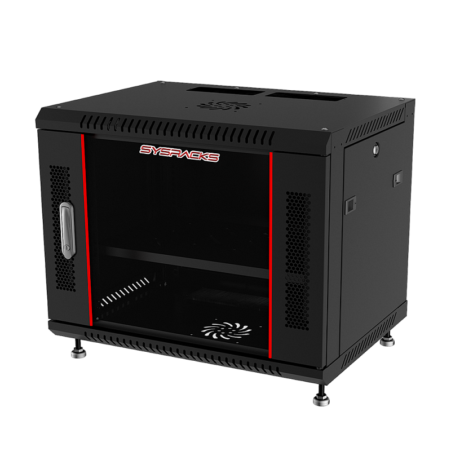

There are a lot of perforation orifices on the front door. This ensures the evacuation of excessively heated air from the server cabinet and improves airflow distribution. As a result, you’ll get optimal cooling of your hardware.

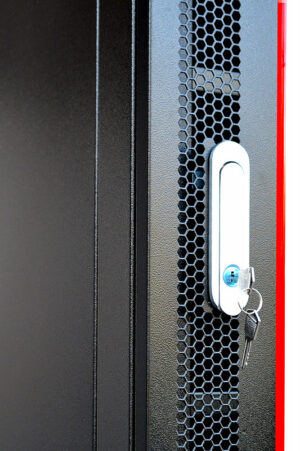

The ergonomic push lock makes the product appearance particularly attractive while simplifying access to the components of your setup.
The brush-type cable gland protects the devices from possible electrical damage caused by fine particles akin to dust.

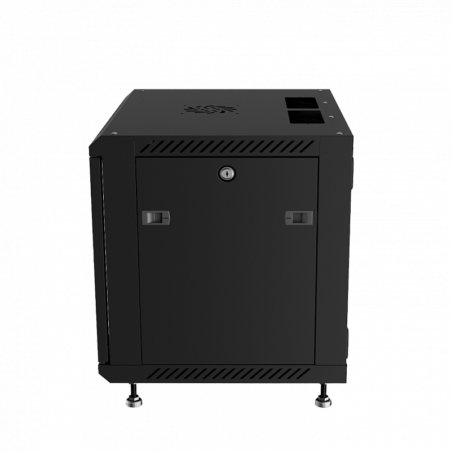

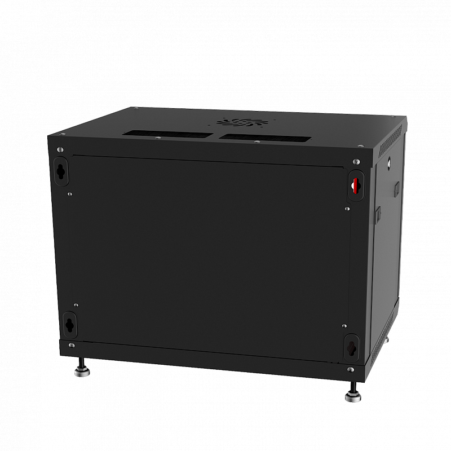

Both the front and rear side of the cabinet have lock-up, removable panels supplied together with 2 keys. Their function is to strengthen protection against potential threats and secure your IT infrastructure.
Dismountable panels will enable you to install or maintain a wide variety of devices in a matter of minutes.

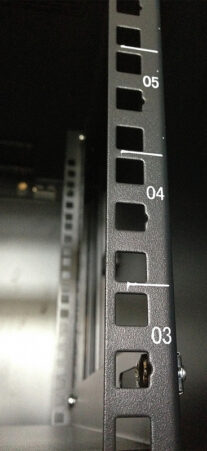

Customizable mounting rails with special U-markings and square orifices render it probable to significantly speed up installation and correctly position all the elements of your environment. These rails will work appropriately with the vast majority of devices.
Four flexible standing legs will help you turn a floor-standing cabinet into a wall-mounted cabinet. Still, under no circumstances should you exceed the established maximum load value, that is, 133 pounds.

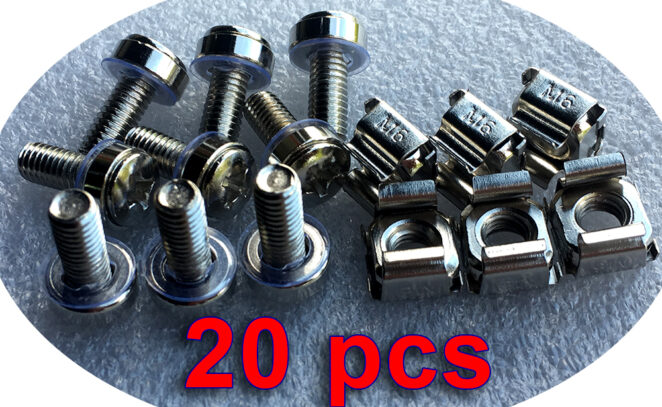

The product also comes with a complete set of 20 M6 nuts and screws, which makes installing the cabinet as easy as falling off a log. You also won’t have to purchase any auxiliary fasteners.
An internal depth of 18 inches (450 mm) is highly practical and viable. This value will allow you to install a wide array of devices, more specifically telecommunications equipment, digital video recorders, routers, switches, etc. What’s more, you’ll have proper airflow distribution and cable power. You can also easily retrofit your server environment, where necessary.
The base model is black in color and features the following components:
- Cooler in the upper section of the product;

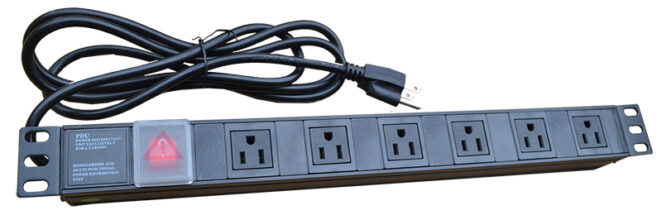

- 1 power distribution unit;

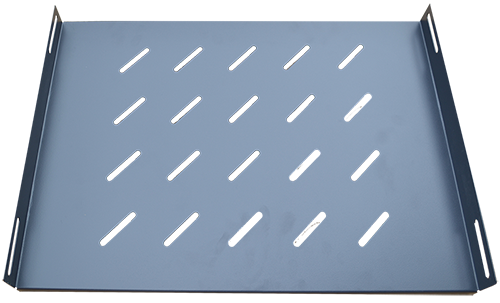

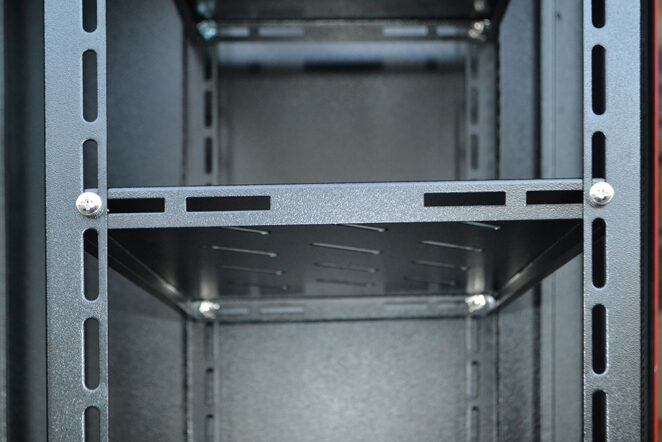

- 1 fixed shelf;
- 4 movable legs;
- Glass front door placed in a perforated metal frame;
- A brush panel for laying cables in the upper and lower sections of the rack;
- Mounting rails with U-markings;
- A set of nuts and screws.

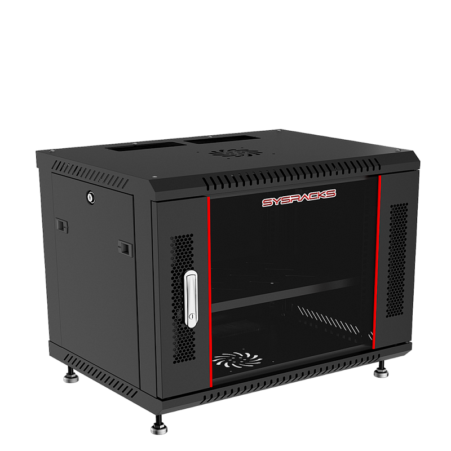

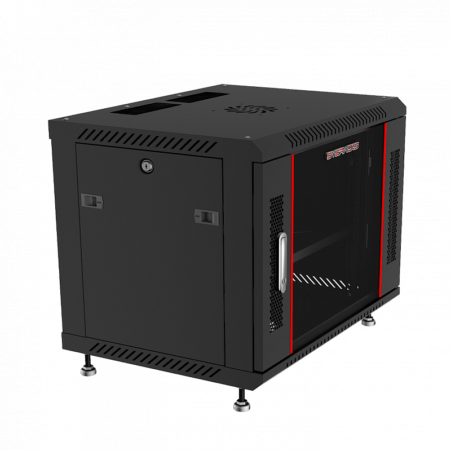

The SRW 450 server cabinet is a user-friendly solution for managing your hardware and organizing a neat and secure IT infrastructure.
• Height of the enclosure: 6U (368 mm)
• Width: 24″(600mm);
• Depth: 18″(450mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Kit contents: (1 PDU,1 fans, 2 Brash cable entry, 1 fix shelf, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs)
