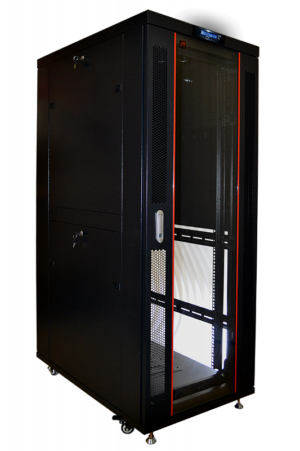

This product is designed specifically for accommodating telecommunications equipment and keeping communication centers in good order. The kit comes in a flat box of moderate size, which significantly facilitates both delivery and storage. On top of that, you’ll also be able to get rid of 70% of transportation expenses.
The installation process is a real piece of cake. The base model is supplied with the built-in active ventilation components and the efficient air temperature control system.
Cable glands feature useful strip panels of brush type along with cable managers.
What’s more, this server rack is fitted with robust, mobile casters with a special braking function.

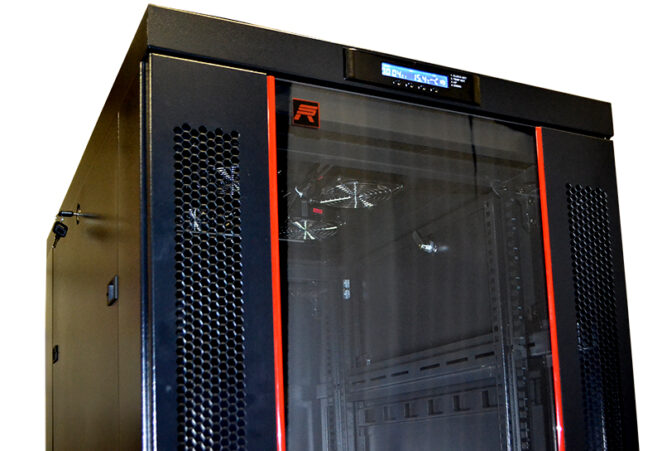

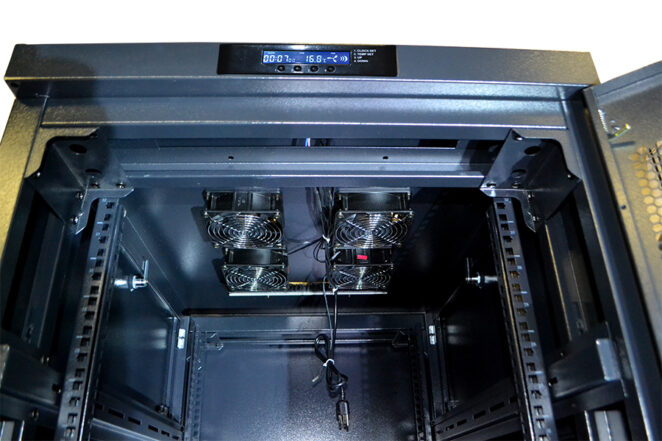

Excessively heated air is pushed out from the working area with the use of a ventilation panel that consists of four fans mounted in the upper part of the rack. It can provide you with a capacity of 440 cu. m per hour.
Since this is an assembled product, it can be easily delivered and installed in crammed rooms with narrow doors, in particular where there is no cargo elevator available. To do so, only one technical specialist is required. Plus, you won’t need to purchase any auxiliary tools.
Distinct Advantages of the Air Control System include:
- Improved hardware performance;
- Maintaining optimum temperature;
- Energy cost reduction;
- Extended lifecycle of active ventilation components;
- Noise abatement.

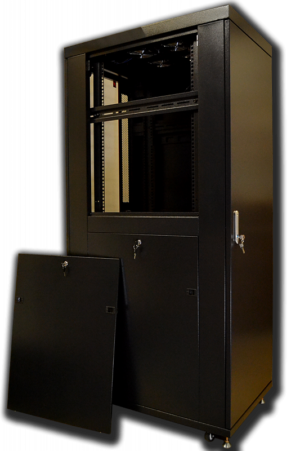

Types of doors:
• Front Glass in metal frame with perforation

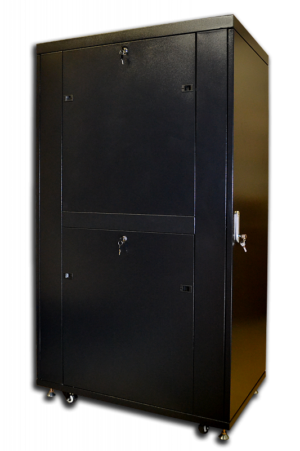

• Rear Solid metal Framework
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Supplied non assembled in 5 packages.
Base model includes:
- Temperature Control System with 4 fans
- 3 Brash cable entry

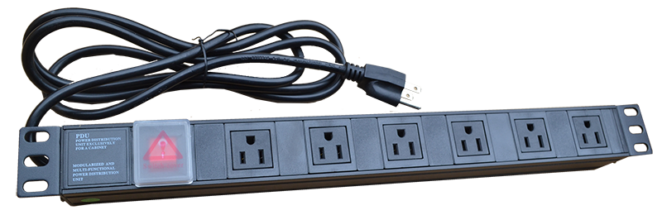

- 1 PDU 8 ways

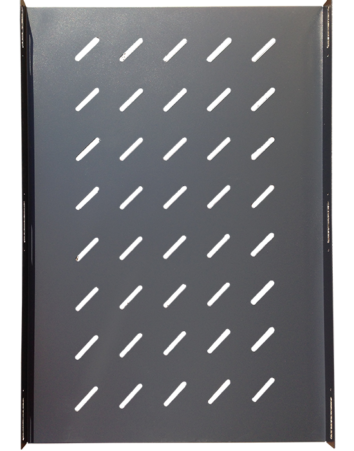

- 1 shelf
- 4 rollers and legs
- 2 Latch locks

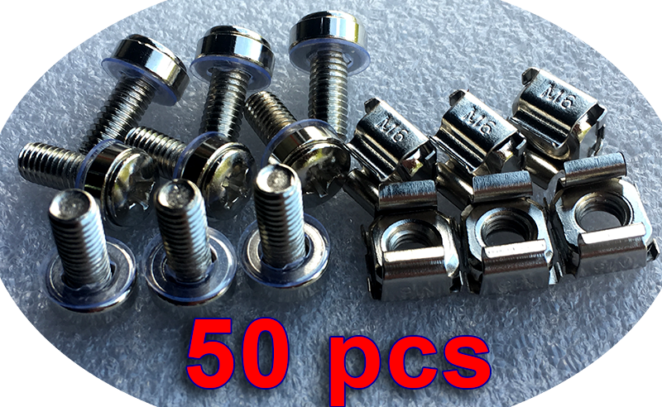

- Set of screws and nuts (50 pcs).
