Kit contents
(Temperature Control System with 4 fans, 2 Brush cable entry, 1 PDU, 1 fix shelf, 4 rollers and legs, 2 Latch locks, set of screws and nuts(50 pcs).
- Active ventilation in base model
- Brush strip panel for cable entry
- Flat and compact packaging
- Convenient to assemble design
- Clear and simple installation
This cabinet makes it possible to balance the cost and quality, thereby offering a way to install server equipment and telecommunications devices. With its classy, slick design, the product will garnish any environment, regardless of your current workplace—be it your home, an office, or a humongous datacenter.
The item is supported by two welded frames that make it resilient and sturdy. The maximum acceptable load is equal to 1,600 pounds.
Brush-type cable glands have been added to both the upper and lower sections of the server rack. This is a sophisticated measure aimed at protecting the hardware against the ingress of dust and other electrically conductive particles. Ultimately, your devices won’t be damaged by electricity.

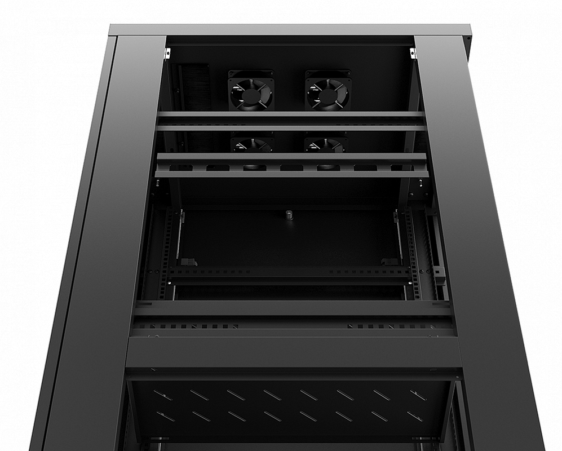

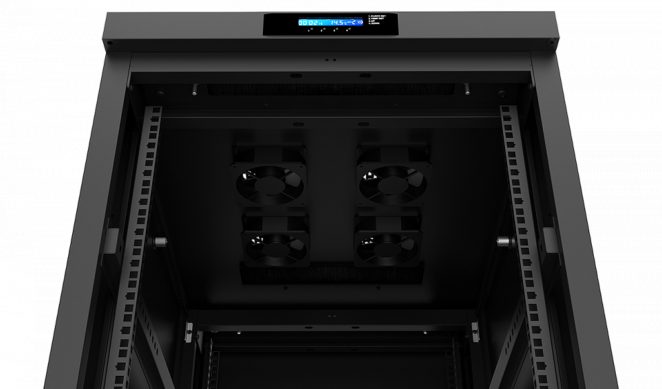

The front door, along with the perforation orifices, ensure passive ventilation. Meanwhile, the temperature control system is implementing active ventilation. Its operation is arranged as follows: A thermostat is installed in the rack, triggering the fan panel when the indicated temperature value has been reached.

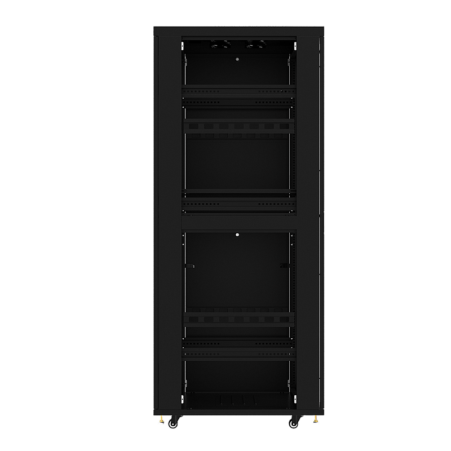

You’ll also be pleased with the four customizable mounting rails. They can be fine-tuned even at the very depth of your equipment.

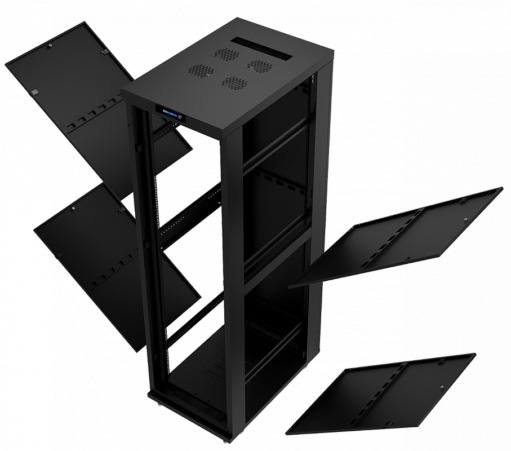

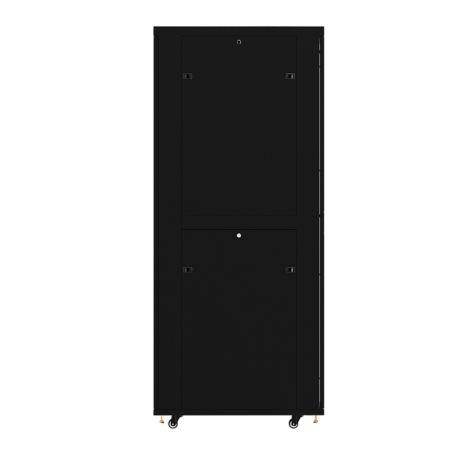

The product also features two removable side panels that safeguard your IT setup against unauthorized access.
The main advantages of the temperature control system include:
- A guarantee of high performance of the server environment components;
- Maintaining an optimum temperature range;
- Significant reduction in energy consumption;
- Extended service life of active ventilation;
- Enhanced noise suppression.
Types of doors:

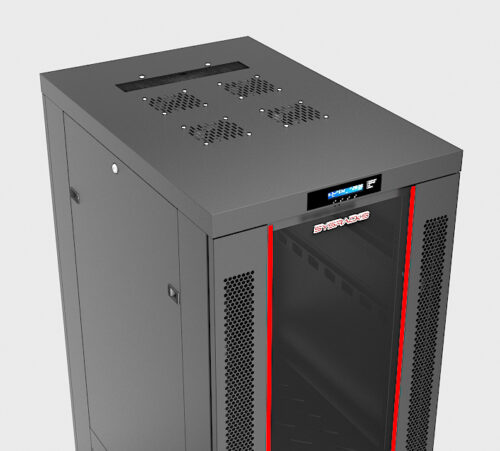

• Front Glass in metal frame with perforation
• Rear Solid metal Framework
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors

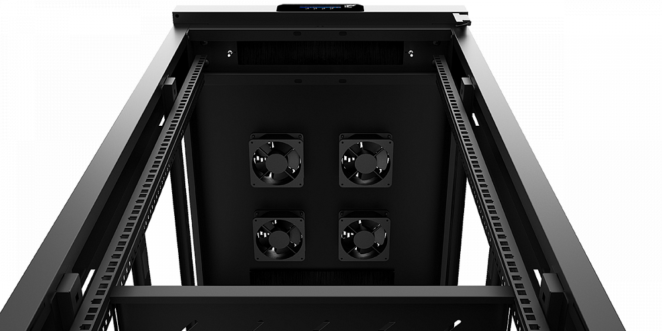

• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Supplied non assembled in 5 packages.

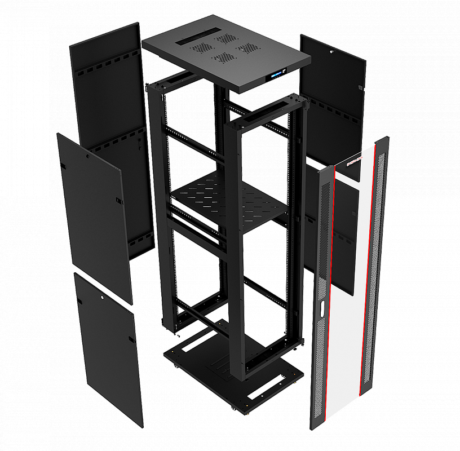

Carrying construction – welded front and rear frames.
Base model includes:
o Temperature Control System with 4 fans
o 3 Brash cable entry

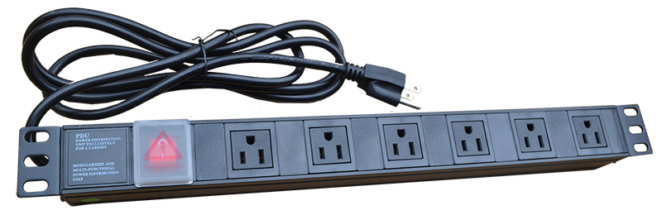

o 1 PDU 8 ways

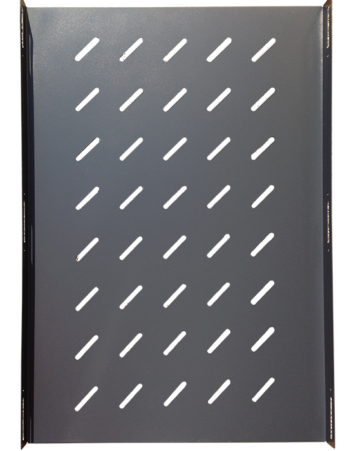

o 1 fix shelf

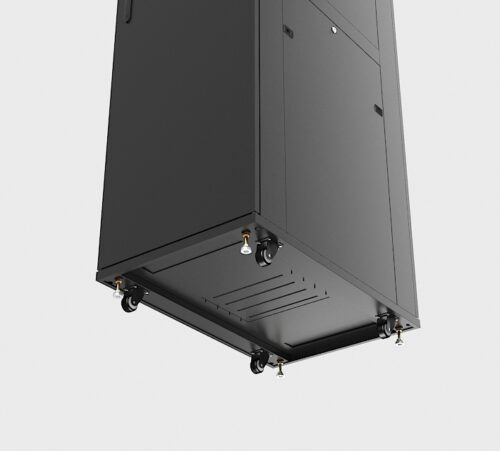

o 4 rollers and legs
o 2 Latch locks

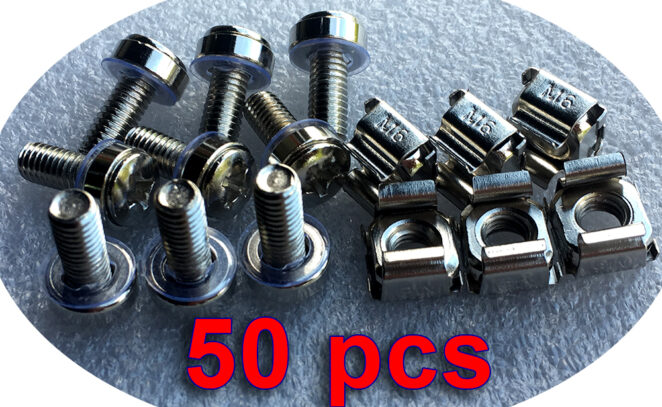

o Set of screws and nuts (50 pcs).
