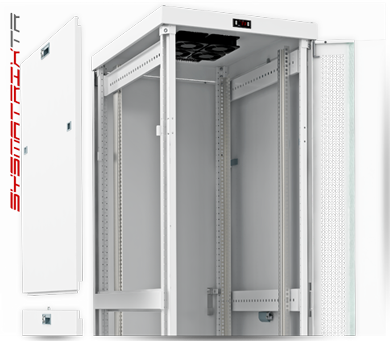

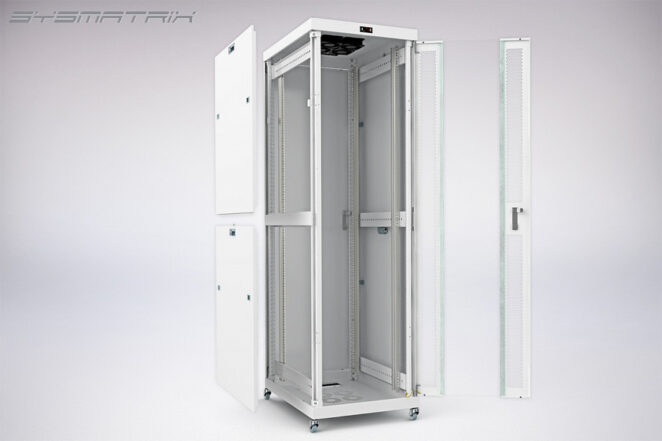

This product is a practical solution that enables you to place devices and carefully arrange communication centers.
The cabinet packaging is flat and not bulky, which facilitates both transportation and storage to a great extent.
The installation process is also not complicated at all. The base model is fitted with active ventilation components and a temperature control system.
The cable glands are supplied with efficacious brush strip panels and ergonomic cable managers.

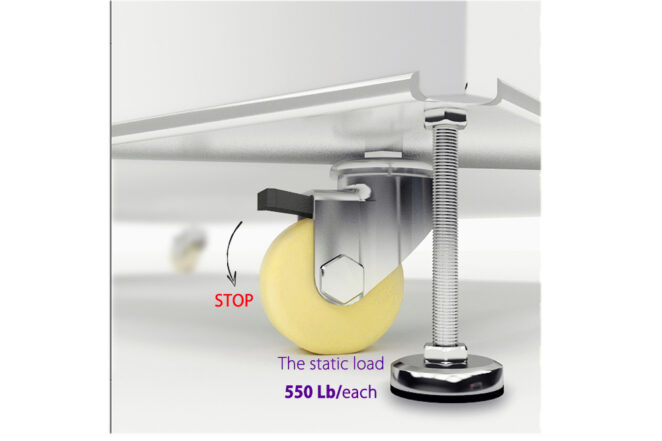

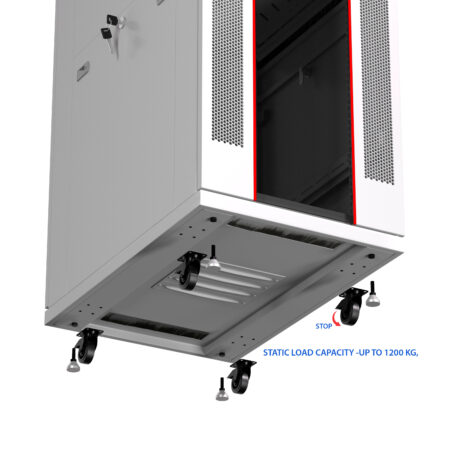

The item also features high-strength, reliable casters with the braking function. This ensures the flexibility and portability of these parts.

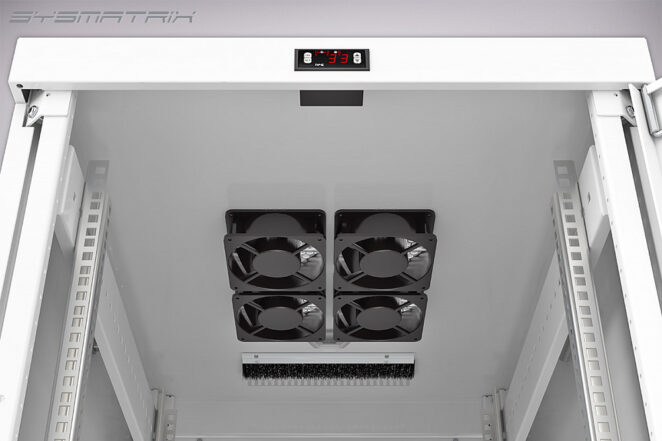

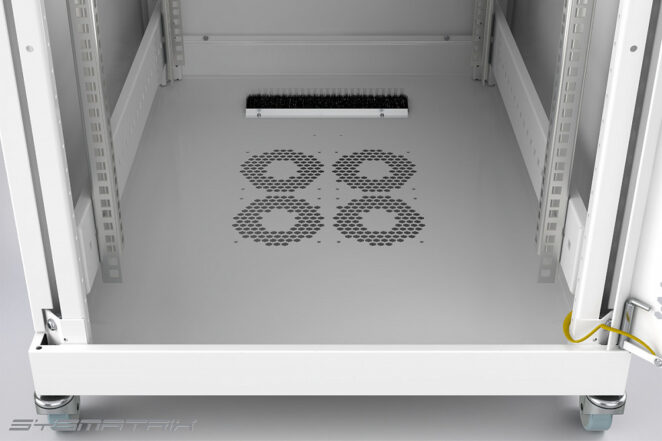

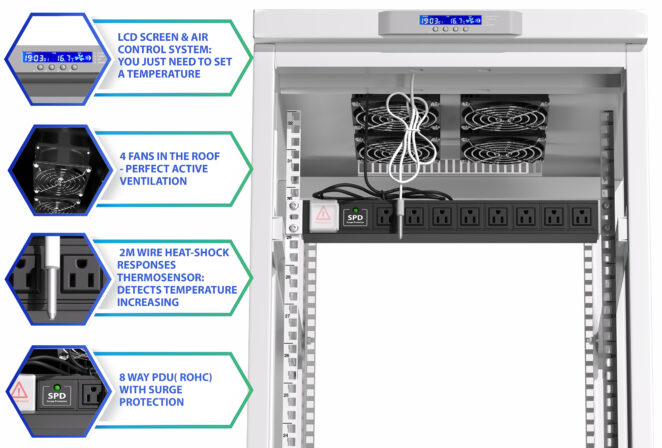

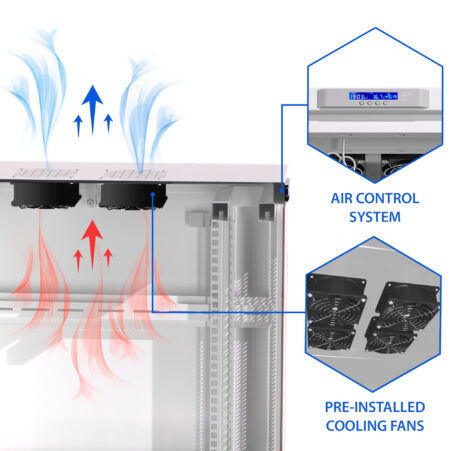

The removal of heated air from the working area is performed with the use of a panel that consists of four fans mounted in the upper part of the product. They are capable of providing a capacity of 440 cu. m/h.
The compact package will help you achieve impressive savings on transportation and storage, up to 70%.

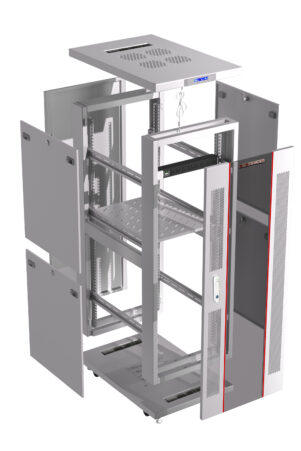

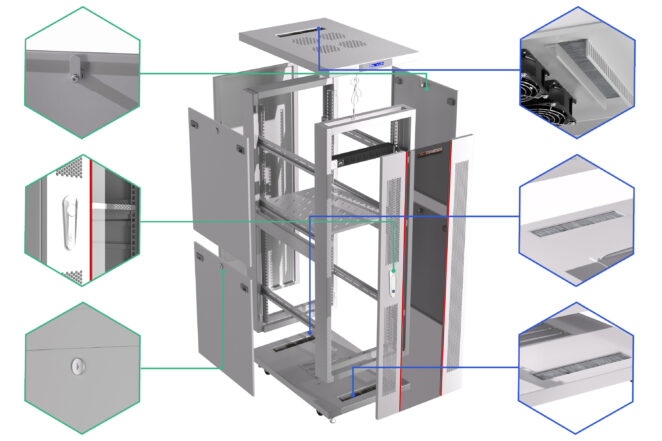

The cabinet is delivered disassembled. This means that you’ll be able to install it even in cramped rooms with narrow doorways, including in those buildings where there are no freight elevators.
It will take a single (only one) technical expert to deliver the cabinet. Plus, there is no need to purchase any auxiliary tools or vehicles.

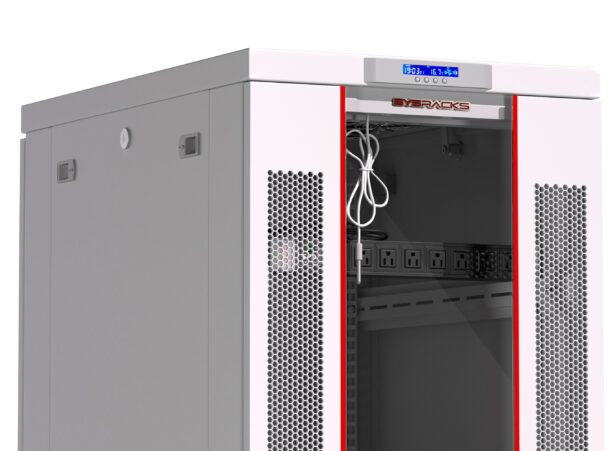

The distinct advantages of the air control system are as follows:
- Significant increase in the performance of your server environment;
- Maintaining the most acceptable temperature conditions;
- Lower energy costs;
- Extending the lifecycle of active ventilation devices;
- Noticeable noise suppression.

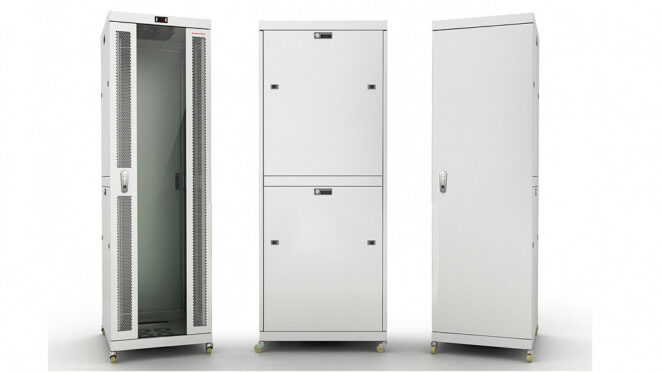

3 types of doors:
• Glass in metal frame with perforation;
• Perforated metal;
• Solid metal Framework:
• Prefabricated profile sections
Cable input:
• Top and bottom have dust-tight brush panels with cable managers
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1800 lb.
Material:
•Rolled steel profile

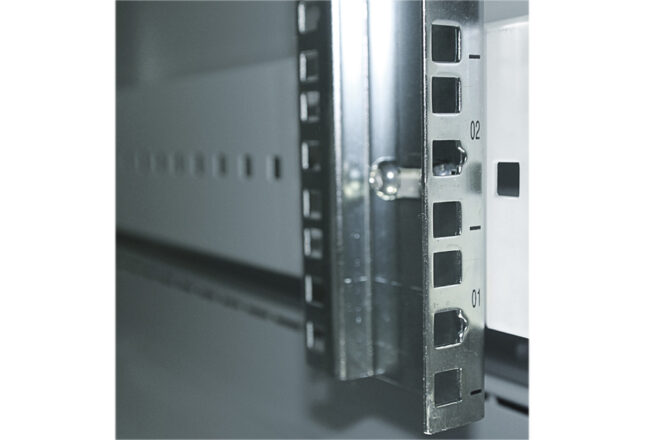

• Frame thickness: 2 mm, 19” profiles 2mm, other components parts; 1.5mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Grey: RAL7035
Kit contents:
• Base model includes:
set of doors,AIR CONTROL SYSTEM, active ventilation,

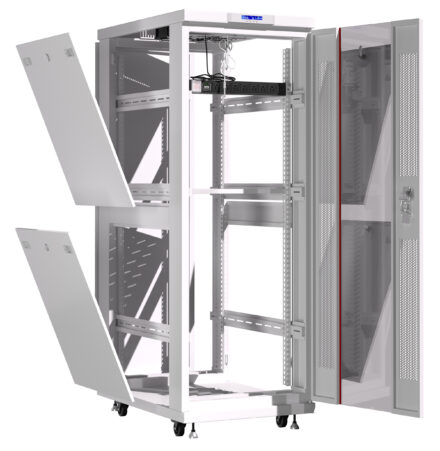

side panels, 2 pairs (front & rear) 19” profiles, brush strip plate,
rolling casters and 4 legs, a set of nuts, bolts, washers and screwdriver.
