Kit contents
(Temperature Control System with 4 fans, 3 Brush cable entry, 1 PDU, 1 fix shelf, 4 rollers and legs, 2 Latch locks, set of screws and nuts(50 pcs).
- Active ventilation in base model
- Brush strip panel for cable entry
- Flat and compact packaging
- Convenient to assemble design
- Clear and simple installation

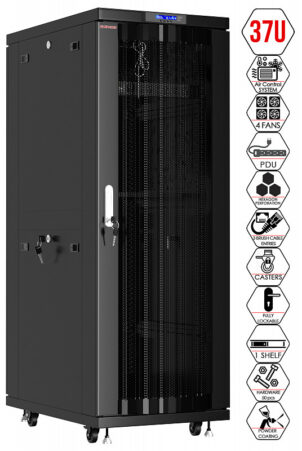

This cabinet will strike the perfect balance between the cost of the product and its quality if you need to install server or telecommunications equipment.

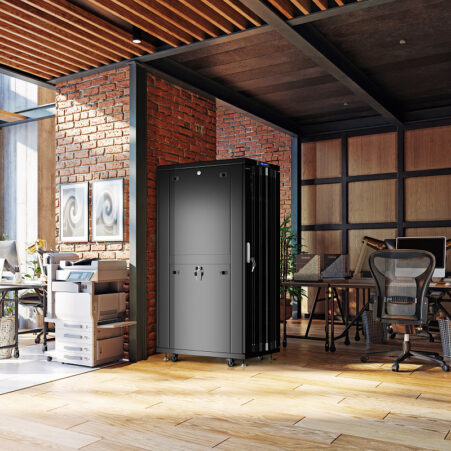

Thanks to its harmonious design, which keeps up with the times, the unit in question will be able to fit into any environment, wherever it is located—at your home or in the office.
The product’s reliability is ensured with the use of two high-strength welded frames capable of withstanding a load of up to 1,600 pounds.
Both the upper and lower parts of the cabinet have a brush-type cable entry, which adroitly prevents the penetration of various microscopic particles, e.g., dust, into the components of your setup.

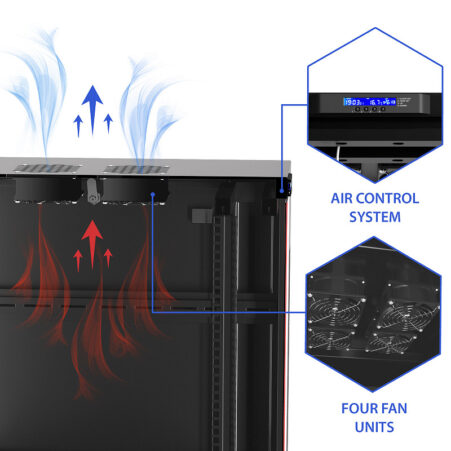

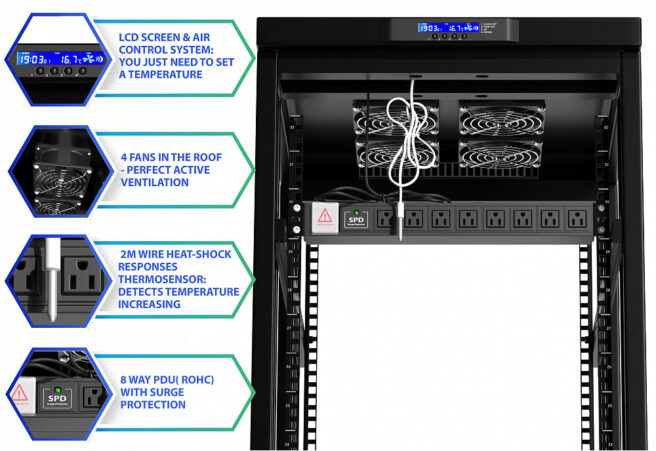

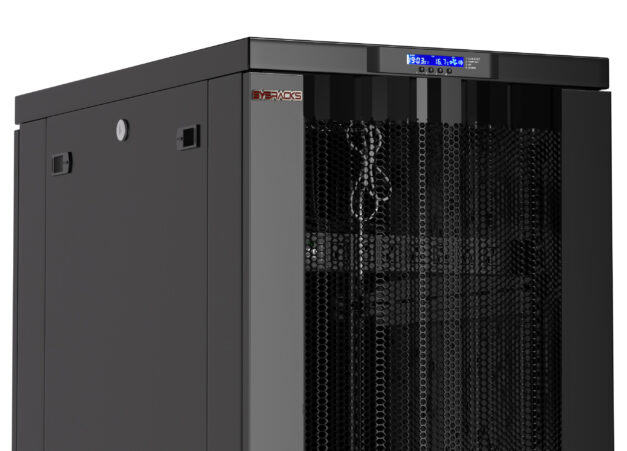

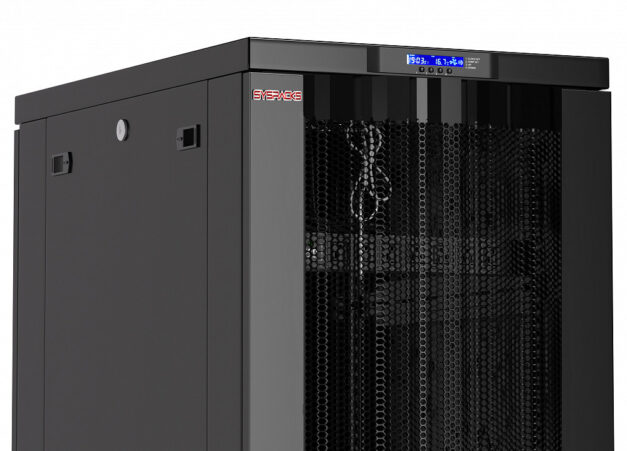

The front door and perforation orifices located on the side of the item are responsible for passive ventilation. Active ventilation is implemented through the use of an integrated temperature control system. It is based on a thermostat that intelligently regulates the temperature conditions within your environment. It activates the cooler panel as soon as the temperature falls within a predetermined range.

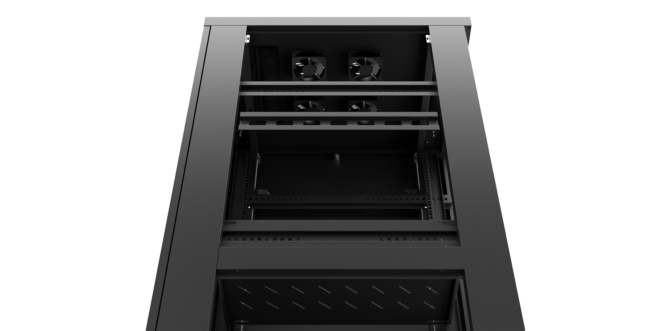

Four conveniently adjustable mounting rails can be fine-tuned even at the very bottom of the hardware. What’s more, their U-marking substantially simplifies the process of accommodating a vast variety of devices.

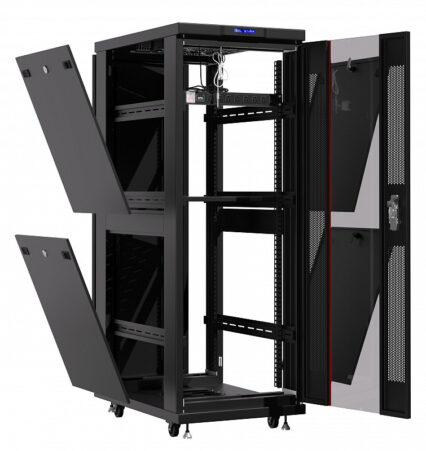

Four side panels are designed to ensure safety when accessing the components of your information infrastructure.
Significant benefits of the temperature control system encompass the following aspects:
- Improved performance of your server environment;
- Keeping the temperature in the optimal range;
- Noticeable decrease in electricity consumption;
- Extended service life of active ventilation devices;
- Powerful noise abatement.
Types of doors:

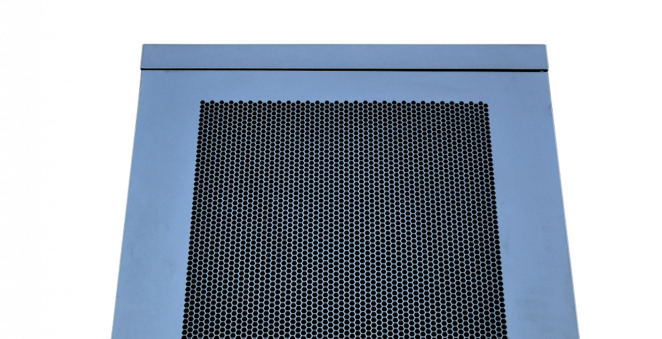

• Front Arc Mesh door with hexagon perforation
• Rear Flat Mesh door with hexagon perforation
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anti-corrosive phosphate
Color:
• Black: RAL9005

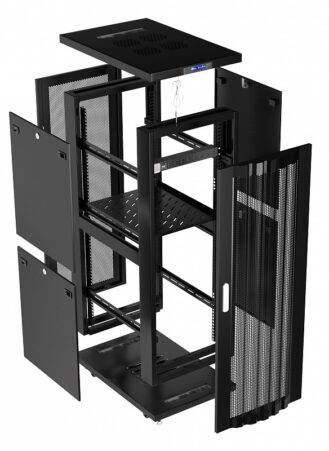

Supplied non assembled in 5 packages.
Carrying construction – welded front and rear frames.
Base model includes:
o Temperature Control System with 4 fans
o 3 Brash cable entry
o 1 PDU 8 ways
o 1 fix shelf

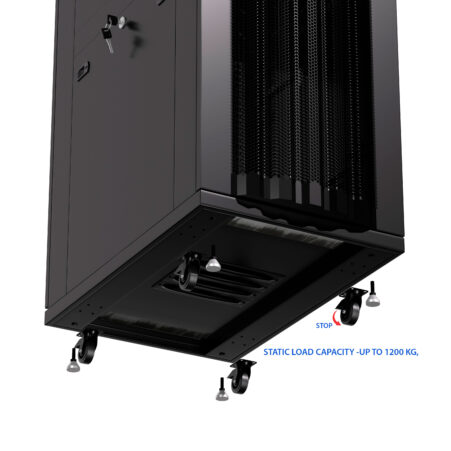

o 4 rollers and legs
o 2 Latch locks
o Set of screws and nuts (50 pcs).
