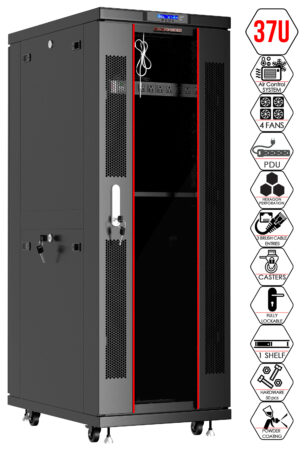

37U 32″ Depth IT & Telecom Cabinet SRF 37.6.8 photo

37U 32" Depth IT & Telecom Cabinet SRF 37.6.8

Name: 37U 32" Depth IT & Telecom Cabinet SRF 37.6.8
Price: 820 USD
Availability: InStock
Rating: 5 (2 reviews)

820 USD

2 reviews

Transit within 4-6 business days

19" Floor Standing Server Rack Cabinet 37U (24"w x32"d x74"h) (600x8000x1870mm.) (WxDxH), Glass Door (TEMPERATURE CONTROL PANEL, 4 fans,1 shelf, 1PDU)

Availability

In Stock

Width

24 in

Depth

32 in (800mm)

Front door

Glass

Quantity of all packages

5 pcs.

Height

37U

Color

Rail-to-rail max distance

27 in (686mm)

Size of package(-s)

1) 72*8*7 2)72*27*6 3)36*24*6 4)34*26*8 5)30*9*8

Weight

231.5 lbs

Product information

Benefits

Overview

Instructions & Downloads

Specifications

Shipping cost estimation

Reviews(0)

Preinstalled Air Controller- you just need to set a temperature.
4 fans in the roof- perfect Active ventilation
Hexagon perforated front (Glass) door frames- gorgeous design and additional air circulation.
4 removable side panels – ease access to any level equipment.
3 Brush cable entries- aloud to inset cabling from any side of cabinet with gust protection.
8 way PDU( ROHC) and 1 shelf in a base model
2 spring lunch looking Doors
Max distance between U-mark mounting rails-30”(760mm)

This product provides an optimal balance between cost and quality for everyone who needs to install server equipment and telecommunications devices. Thanks to its modern, attractive design, the rack fits perfectly almost into any environment, whether at home or in the office. The item is equipped with two welded frames and is characterized by increased durability. The maximum acceptable load is equal to 1,600 pounds. Brush-type cable glands are available in both the upper and lower parts of the product in question. This serves as a protective measure aimed at preventing dust and other microscopic electrically conductive particles from entering critical components. As a result, you won’t have to deal with the potential consequences of electrical damage. The front door, along with special perforation orifices, are responsible for the implementation of passive ventilation. Active ventilation is organized by means of the built-in temperature control system. The principle of its operation is as follows: A thermostat is used in the rack, which activates the fan panel when a pre-set temperature value is reached. You’ll also be pleased with the 4 mounting rails. They demonstrate high flexibility and can be adjusted even at the very bottom of the hardware. The device is also equipped with 2 removable side panels the main function of which is to ensure protection against manipulation by outside parties. Without proper authority, no one will be able to use your confidential data for their own selfish purposes or interfere in any way with the operation of your equipment. The obvious advantages of the temperature control system include:

Providing almost one hundred percent performance of the server environment components;
Maintaining the most favorable temperature conditions;
Significant reduction in energy consumption;
Long service life of active ventilation components;
Powerful noise reduction.

Assembly schemeDownload (PDF)

Table of IP protection ratingsDownload (PDF)

Types of doors:

• Front Glass in metal frame with perforation
• Rear Solid metal Framework
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
