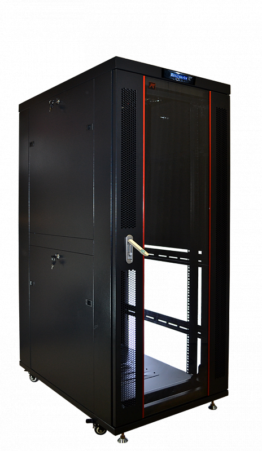

SRF600 is an optimum cost/quality trade-off for every technical specialist who needs to install comms and server hardware. The modern, slick design of this item will fit into any environment, both in the office and at home. The rack is very resilient thanks to its 2 reliable welded frames. They can tolerate up to 1,600 pounds.
Brush-type cable inlets are available in both the upper and lower parts of the SRF1000. These components render it probable to keep your hardware safe from dust and other small-sized electroconductive particles.

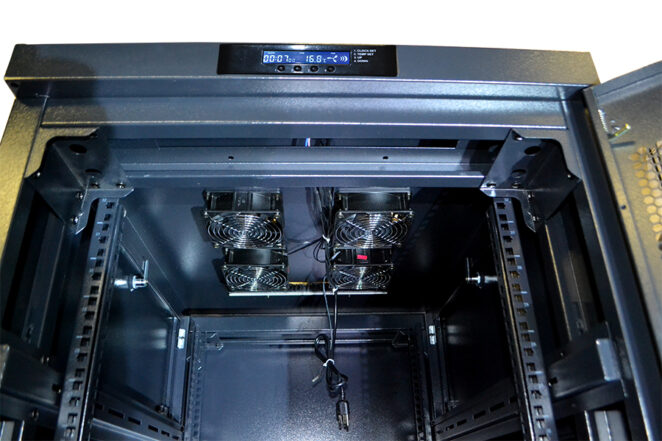

The front door and punched holes are responsible for implementing passive ventilation. Active ventilation is arranged with the help of the built-in temperature control system. It uses a thermostat that manages the temperature in your IT infrastructure. This part enables the fan panel in case the preliminarily indicated temperature conditions are met. This feature is also available in the base model.

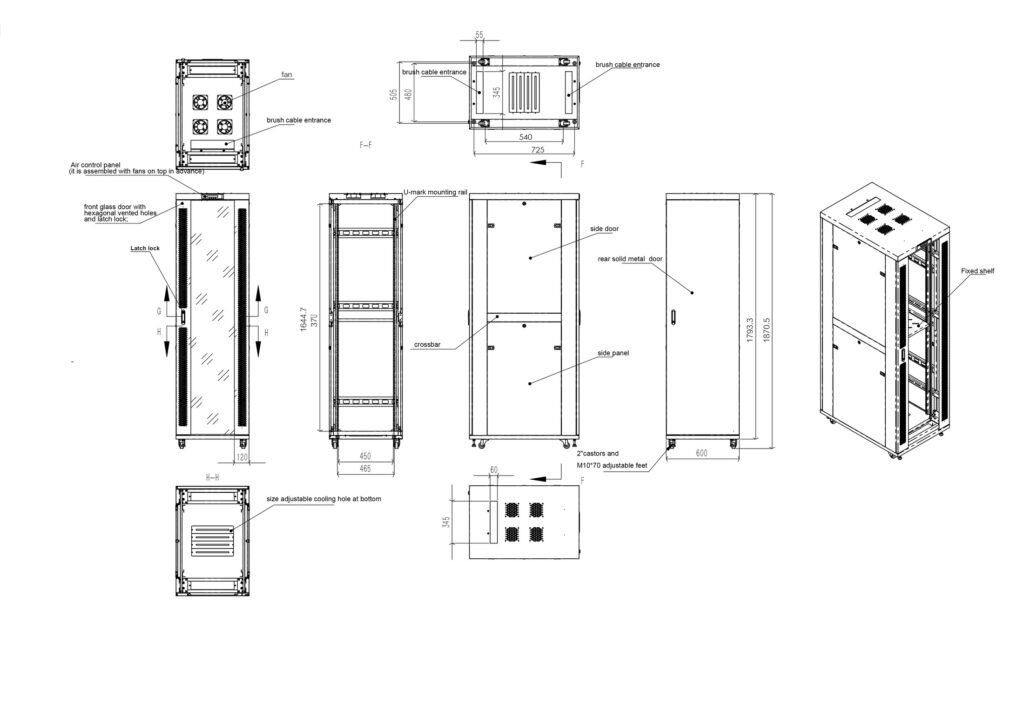

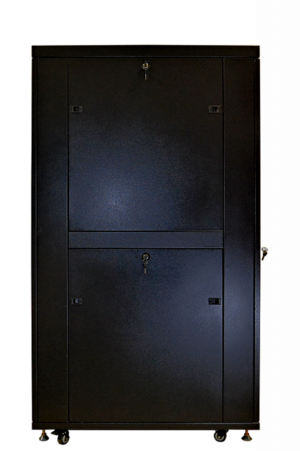

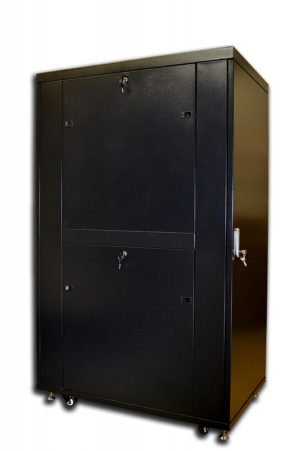

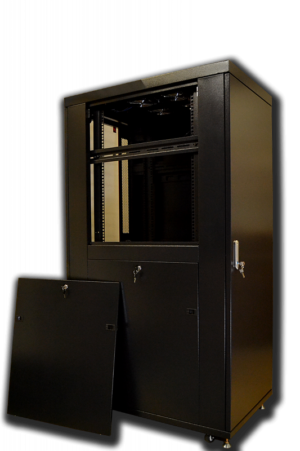

Four mounting rails offer high flexibility. That’s why you can easily fine-tune them at the very depth of your equipment and the U-marking fittings that accommodate your hardware. Plus, two dismountable side panels prevent malefactors from gaining access to your equipment.
The main advantages of the air control system are as follows:
- Increased equipment performance;
- Maintenance of the optimum temperature range;
- Reduced power costs;
- Durable active ventilation components;
- Effective noise suppression.
Types of doors:

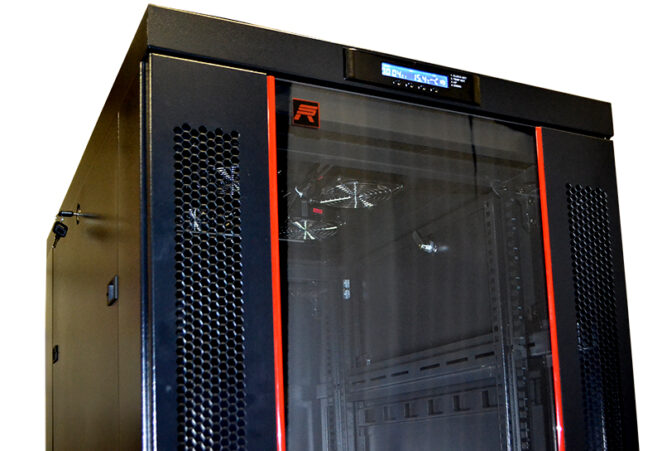

• Front Glass in metal frame with perforation
• Rear Solid metal Framework
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Supplied non assembled in 5 packages.
Base model includes:
- Temperature Control System with 4 fans
- 3 Brash cable entry

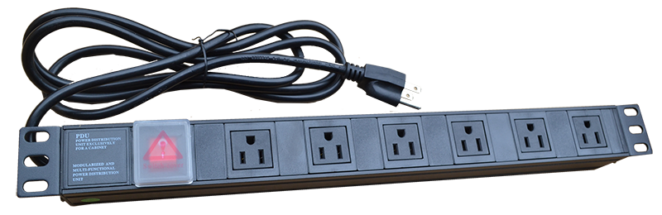

- 1 PDU 8 ways

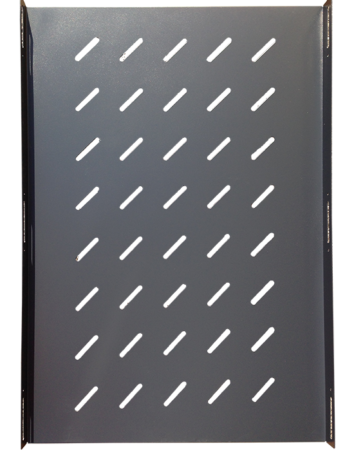

- 1 shelf
- 4 rollers and legs
- 2 Latch locks

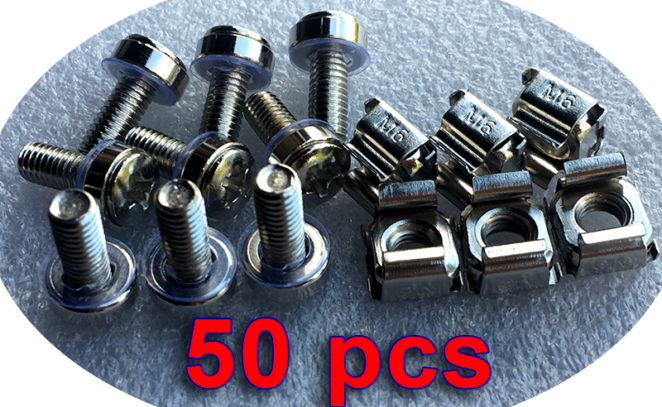

- Set of screws and nuts (50 pcs).
