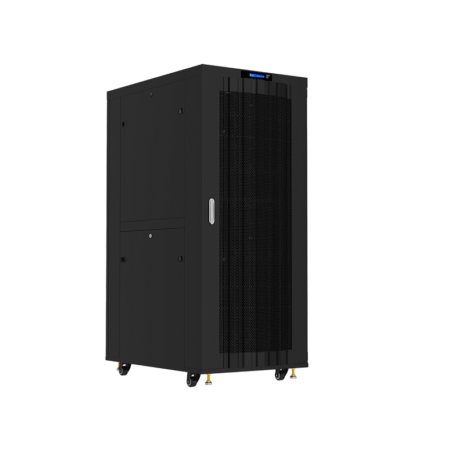

32U 39" Depth IT & Telecom Cabinet SRF 32.6.10M

820 USD
3 reviews
Transit within 4-6 business days
19" Floor Standing Server Rack Cabinet 32U (24"w x39"d x67"h) (600x1000x1688mm.) (WxDxH), Mesh Door (TEMPERATURE CONTROL PANEL, 4 fans,1 shelf, 1PDU)

Availability

In Stock

Width

24 in

Depth

39 in (1000mm)

Front door

Mesh

Quantity of all packages

5 pcs.

Height

32U

Color

Rail-to-rail max distance

34 in (864mm)

Size of package(-s)

1) 63*8*7 2)63*27*6 3)31*31*6 4)42*26*8 5) 38*11*8

Weight

209.4 lbs

Product information

Benefits
Overview
Instructions & Downloads
Specifications
Shipping cost estimation
Reviews(0)

Kit contents

(Temperature Control System with 4 fans, 3 Brush cable entry, 1 PDU, 1 fix shelf, 4 rollers and legs, 2 Latch locks, set of screws and nuts(50 pcs).

  • Active ventilation in base model
  • Brush strip panel for cable entry
  • Flat and compact packaging
  • Convenient to assemble design
  • Clear and simple installation

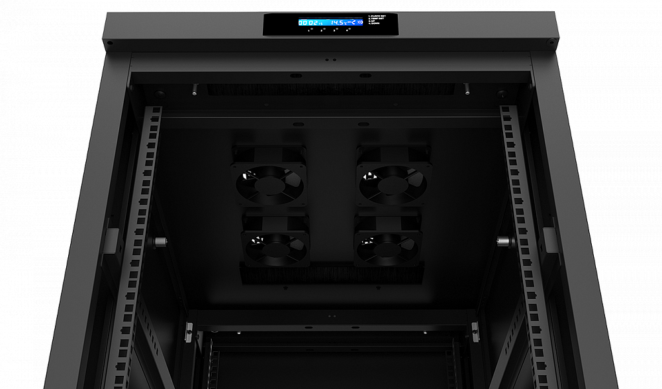

This cabinet offers as an optimal balance between the price and quality for technical experts who need to install server equipment and comms devices. With its modern, classy design, the rack fits perfectly almost into any environment, be it your home or an office. The item is equipped with two welded frames and is characterized by increased durability. The maximum allowable load is equal to 1,600 pounds. Brush-type cable glands are available in both the top and bottom parts of the product in question. This approach makes it possible to prevent dust and other microscopic electrically conductive particles from entering critically important components. As a result, you won’t have to deal with the potential consequences of electrical damage. The front door, along with special perforation orifices, are responsible for the implementation of passive ventilation. Active ventilation is arranged by dint of the built-in temperature control system. It operates as follows: A thermostat is placed in the rack, which triggers the fan panel when a pre-set temperature value is reached. You’ll also be pleasantly surprised by the four mounting rails. They showcase impressive flexibility and can be fine-tuned even at the very bottom of the hardware. The unit is also fitted with 2 detachable side panels the main function of which is to ensure protection against manipulation by outside parties. Without proper authority, no one will be able to use your confidential data for their own selfish purposes or tamper with your hardware.
The tangible benefits of the temperature control system include:
  • Providing almost one hundred percent performance of the server environment components;
  • Maintaining the most favorable temperature conditions;
  • Significant reduction in energy consumption;
  • Long lifecycle of active ventilation components;
  • Powerful noise reduction.

Types of doors:

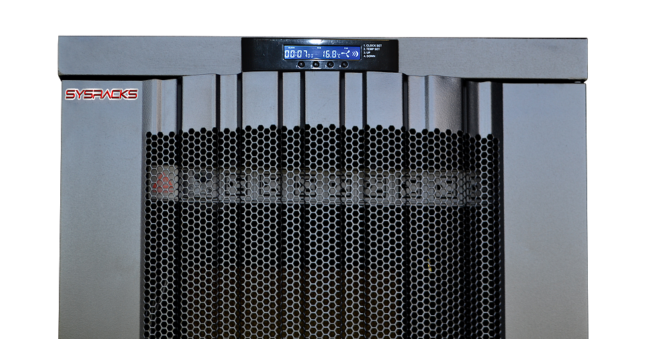

• Front Arc Mesh door with hexagon perforation

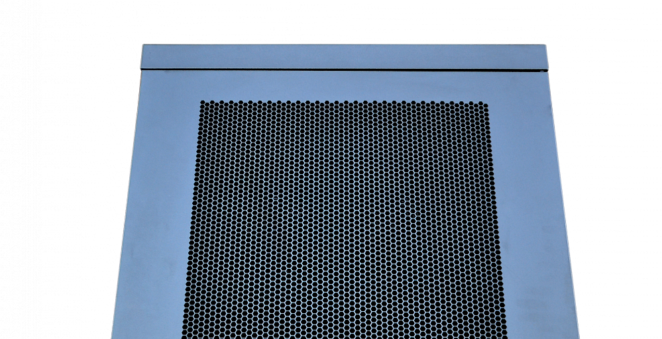

• Rear Flat Mesh door with hexagon perforation
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors

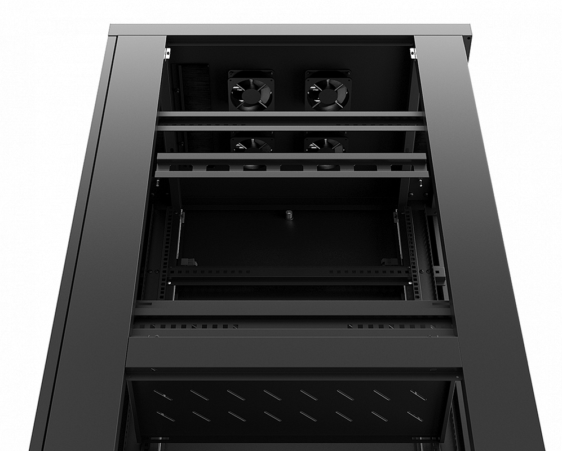

• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anti-corrosive phosphate
Color:
• Black: RAL9005

Supplied non assembled in 5 packages.

Carrying construction – welded front and rear frames.

Base model includes:

o      Temperature Control System with 4 fans

o      3 Brash cable entry

o      1 PDU 8 ways

o      1 fix shelf

o      4 rollers and legs

o      2 Latch locks

o      Set of screws and nuts (50 pcs).

32U 39″ Depth IT & Telecom Cabinet SRF 32.6.10M photo
Shopping & Handling:
USD
32U 39″ Depth IT & Telecom Cabinet SRF 32.6.10M photo
Lewis Bosworth
2023/10/24

Upon unboxing, I was immediately impressed by the quality of materials used. The steel frame is robust, promising longevity, and the locking mechanism on the front and rear doors ensures a secure housing for our equipment. The assembly process was straightforward with clear instructions provided.. The added bonus was the bundled accessories which include a shelf, powwer strip, and cooling fan — essentials that saved us time and additional expenses.

32U 39″ Depth IT & Telecom Cabinet SRF 32.6.10M photo
George
2022/11/24

Ideal 32u server rack dimensions, reasonable price. I would recommend this brand of server racks to anyone looking for a decent product.

32U 39″ Depth IT & Telecom Cabinet SRF 32.6.10M photo
Andy
2022/10/02

The size of that 32u server rack cabinet fits my equipment perfectly. Just as ordered, thanks.
