Kit contents
(Temperature Control System with 4 fans, 3 Brush cable entry, 1 PDU, 1 fix shelf, 4 rollers and legs, 2 Latch locks, set of screws and nuts(50 pcs).
- Active ventilation in base model
- Brush strip panel for cable entry
- Flat and compact packaging
- Convenient to assemble design
- Clear and simple installation
SRF1000 is the right choice, both in terms of cost and quality, for those who need to mount comms and server equipment. The modern, sleek design of this product will fit into any environment very well, be it office or home. The rack is extremely robust thanks to its 2 sturdy welded frames that can tolerate up to 1,600 lbs. Brush-type cable inlets are present both in the upper and lower parts of the SRF1000. It serves as an efficacious safety measure aimed at protecting your hardware against dust and other hazardous substances or foreign objects.

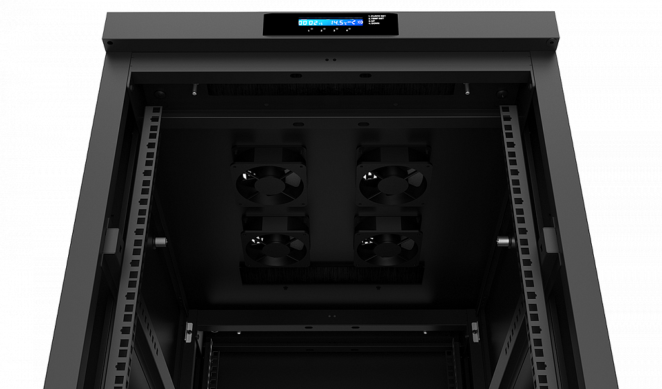

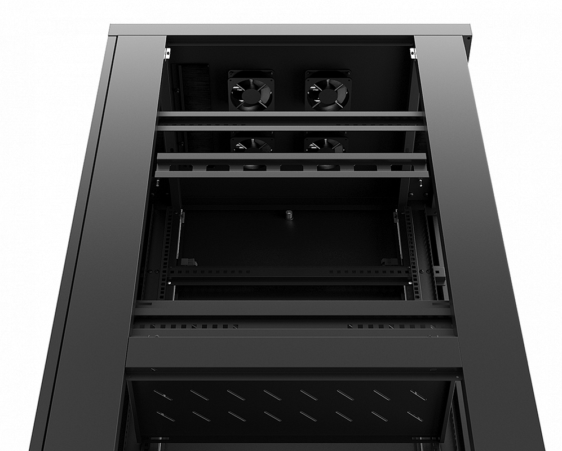

The front door and perforation orifices ensure the so-called passive ventilation. At the same time, active ventilation is implemented by means of the built-in temperature control system. The item uses a special thermostat that manages the temperature in your IT setup. It activates the fan panel in case the predetermined temperature conditions are satisfied.

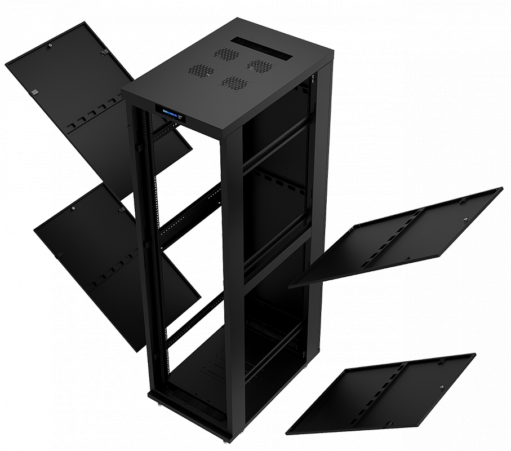

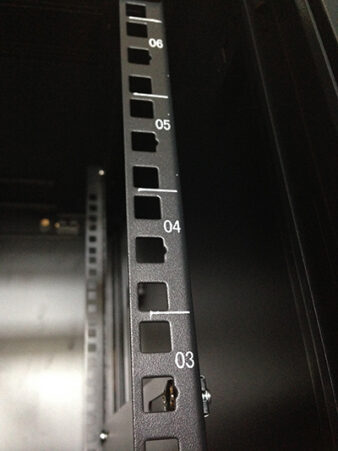

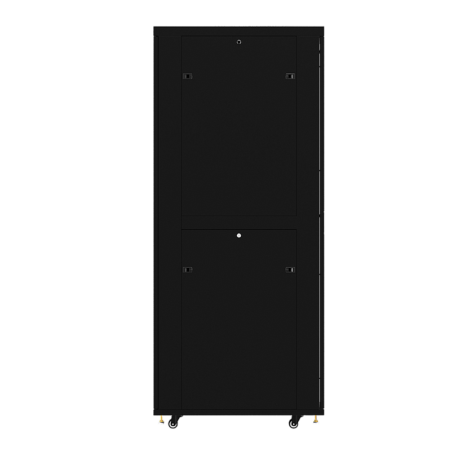

Four mounting rails are characterized by high flexibility. It means that you can easily adjust them at the very depth of your hardware and the U-marking fittings that accommodate your equipment. On top of that, two detachable side panels prevent third parties from getting access to your hardware.
The distinct advantages of the built-in air control system are as follows:
- Increased hardware performance with the observation of the optimum temperature range;
- Minimized power costs;
- Long-lasting active ventilation components;
- Efficient reduction of noise output.
Types of doors:
• Front Glass in metal frame with perforation
• Rear Solid metal Framework
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors

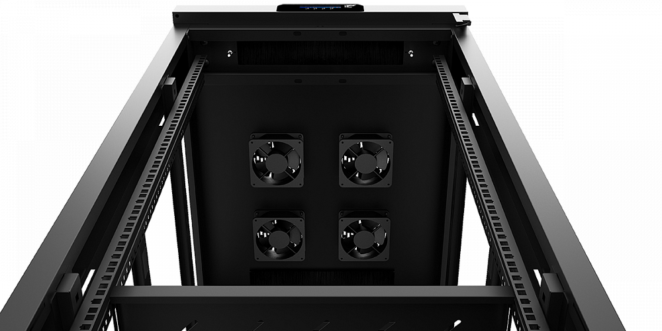

• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anti-corrosive phosphate
Color:
• Black: RAL9005
Supplied non assembled in 5 packages.

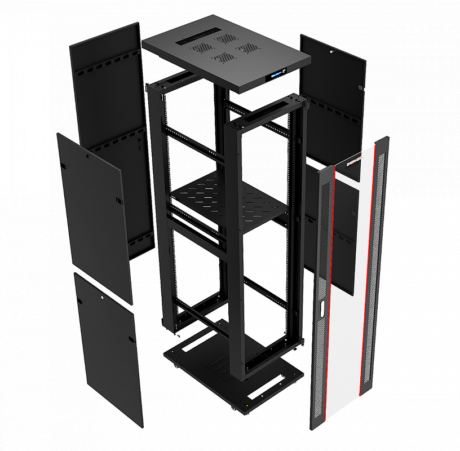

Carrying construction – welded front and rear frames.
Base model includes:
o Temperature Control System with 4 fans
o 3 Brash cable entry

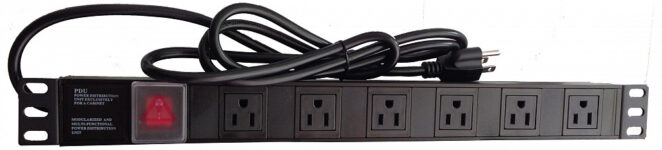

o 1 PDU 8 ways

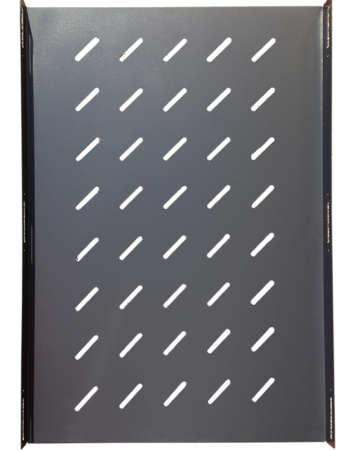

o 1 fix shelf
o 4 rollers and legs
o 2 Latch locks

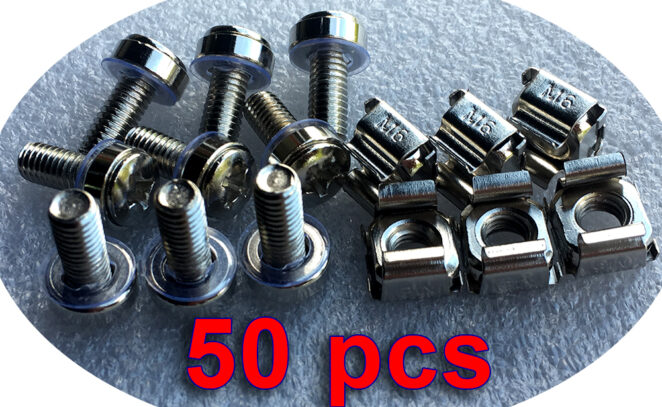

o Set of screws and nuts (50 pcs).
