Availability
In Stock
Width
24 in
Depth
39 in (1000mm)
Front door
Glass
Quantity of all packages
5 pcs.
Height
27U
Color
Rail-to-rail max distance
34 in (864mm)
Size of package(-s)
1) 53*8*7 2)53*27*6 3)54*31*6 4)42*26*8 5) 38*9*8
Weight
227 lbs
Kit contents

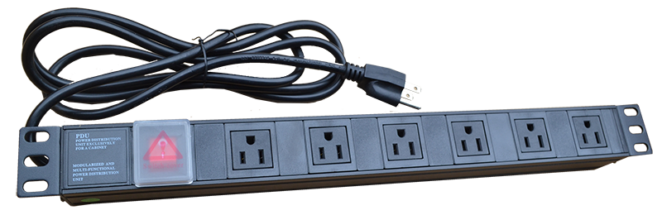

(Temperature Control System with 4 fans, 3 Brush cable entry, 1 PDU, 1 fix shelf, 4 rollers and legs, 2 Latch locks, set of screws and nuts(50 pcs).

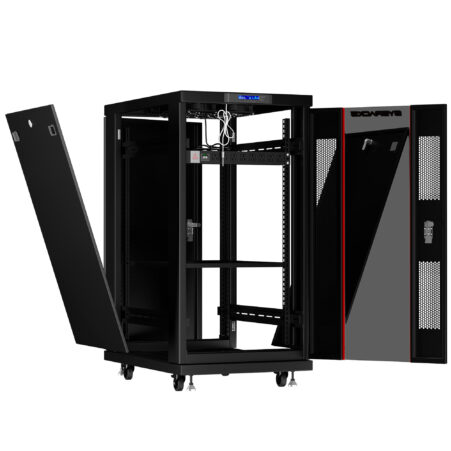

Types of doors:
• Front Glass in metal frame with perforation
• Rear Solid metal Framework
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors

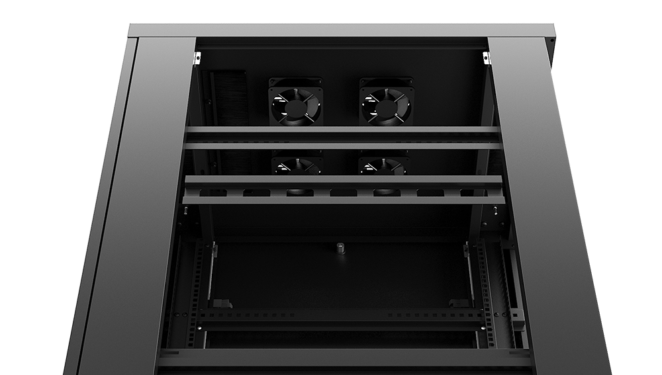

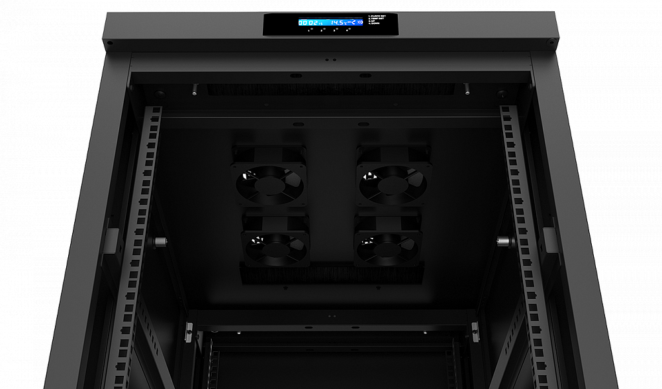

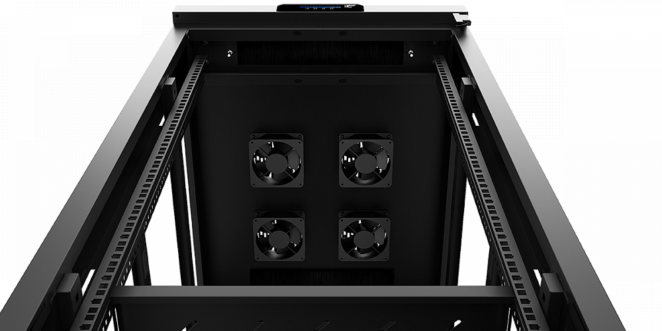

• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005

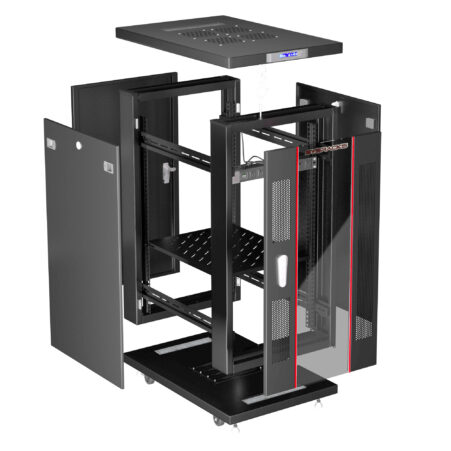

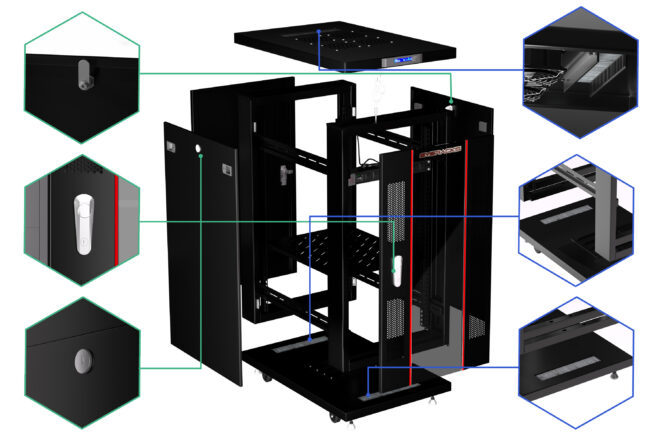

Supplied non assembled in 5 packages.
Carrying construction – welded front and rear frames.
Base model includes:
o Temperature Control System with 4 fans
o 3 Brash cable entry

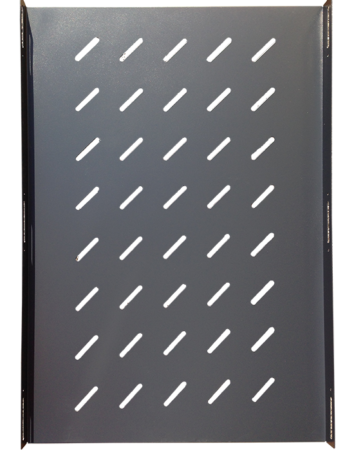

o 1 fix shelf

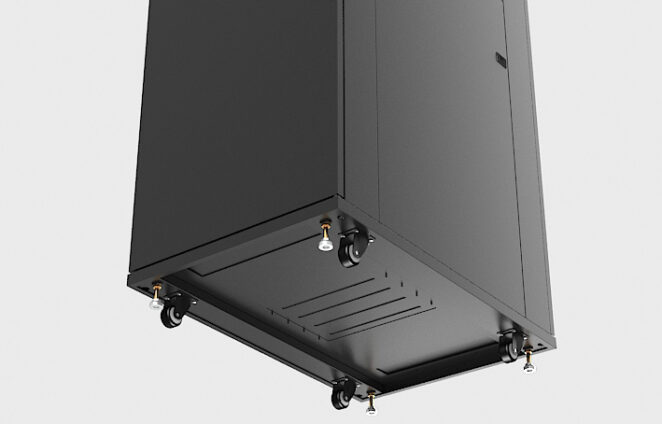

o 4 rollers and legs
o 2 Latch locks

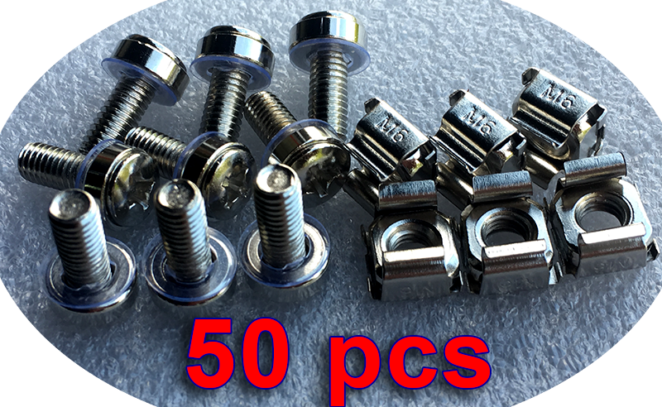

o Set of screws and nuts (50 pcs).
