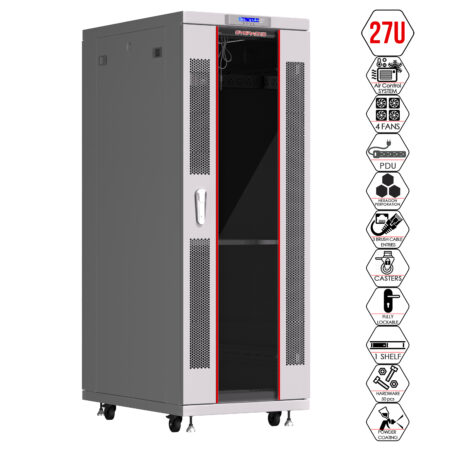

27U 35'' Depth (24"x35"x57") 19" IT & Telecom Cabinet SYSRACKS SRF 27.6.9 G

760 USD
3 reviews
Transit within 4-6 business days

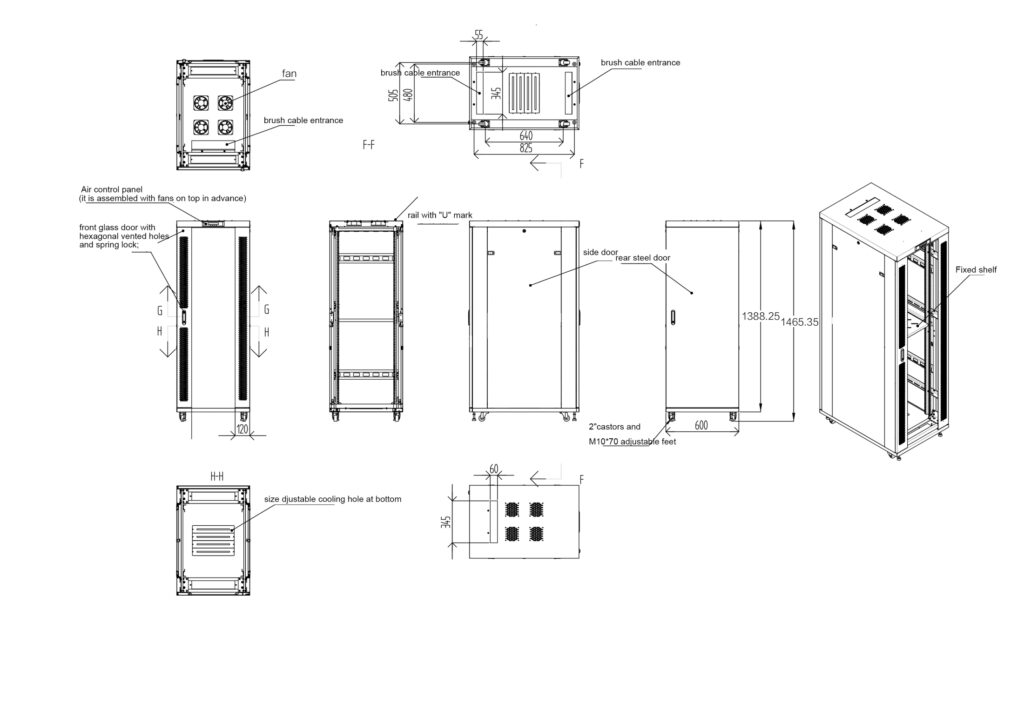

19" Floor Standing Telecommunication Cabinet 27U 24"x35"x57" (600x800x1465)mm. (WxDxH), Glass Door (AIR CONTROL SYSTEM, 4 fans)

Availability

In Stock

Width

24 in

Depth

35 in (900mm)

Front door

Glass

Quantity of all packages

5 pcs.

Height

27U

Color

Rail-to-rail max distance

30 in (762mm)

Weight

216 lbs

Size of package(-s)

1) 53*8*7 2)53*27*6 3)54*27*5 4)38*26*8 5)33*9*8

Product information

Benefits
Overview
Instructions & Downloads
Specifications
Shipping cost estimation
Reviews(0)

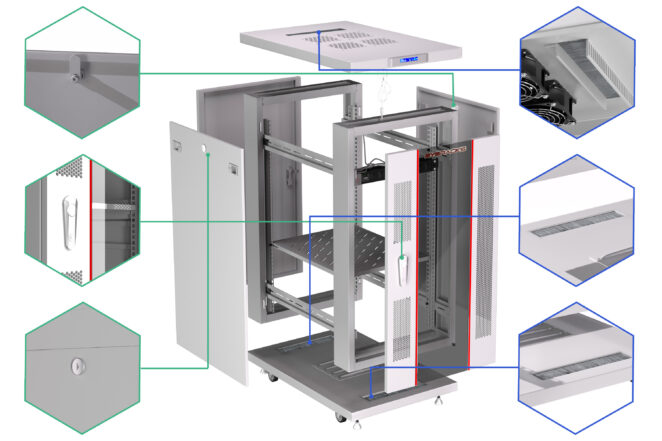

  • Factory installed AIR-Control system
  • Active ventilation in base model
  • Brush strip panel for cable entry
  • Flat and compact packaging
  • Convenient to assemble design
  • Clear and simple installation

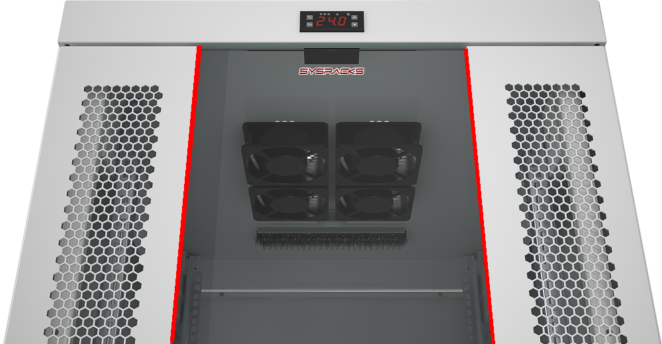

This product is designed specifically for accommodating telecommunications equipment and keeping communication centers in good order. The kit comes in a flat box of moderate size, which significantly facilitates both delivery and storage. On top of that, you’ll be able to reduce transportation costs by up to 70%. The installation process is very simple. The base model is supplied with the built-in active ventilation components and the efficient air temperature control system. The cable glands are equipped with brush-type strip panels, along with cable managers. What’s more, this server rack is fitted with robust, mobile casters with a special braking function. Excessively heated air is pushed out from the working area with the use of a ventilation panel that consists of four fans mounted in the upper part of the rack. It can provide you with a capacity of 440 cu. m per hour. Since this is an assembled product, it can be easily delivered and installed in crammed rooms with narrow doors, in particular where there is no cargo elevator available. To do so, only one technical specialist is required. Plus, you won’t need to purchase any auxiliary tools. Key Benefits of the Air Control System:
  • Improved hardware performance;
  • Maintaining optimum temperature;
  • Energy cost reduction;
  • Extended lifecycle of active ventilation components;
  • Noise abatement.

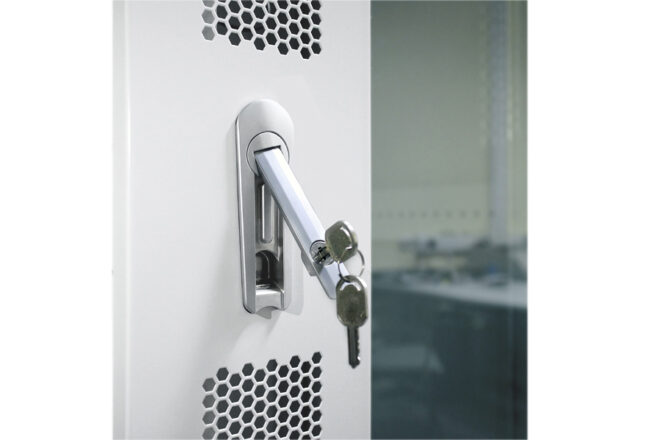

3 types of doors:
• Glass in metal frame with perforation;
• Perforated metal;
• Solid metal Framework:

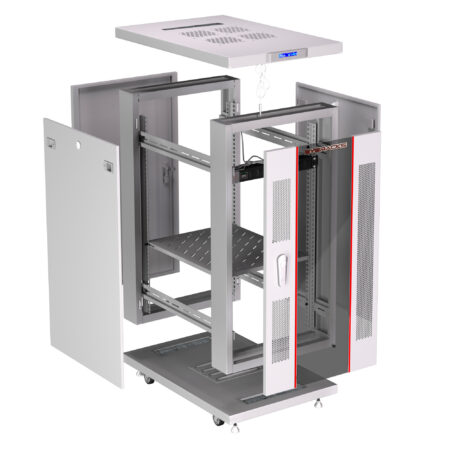

• Prefabricated profile sections
Cable input:
• Top and bottom have dust-tight brush panels with cable managers
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1800 lb.
Material:
•Rolled steel profile
• Frame thickness: 2 mm, 19” profiles 2mm, other components parts; 1.5mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Grey: RAL7035
Kit contents:
• Base model includes:
set of doors,AIR CONTROL SYSTEM, active ventilation,

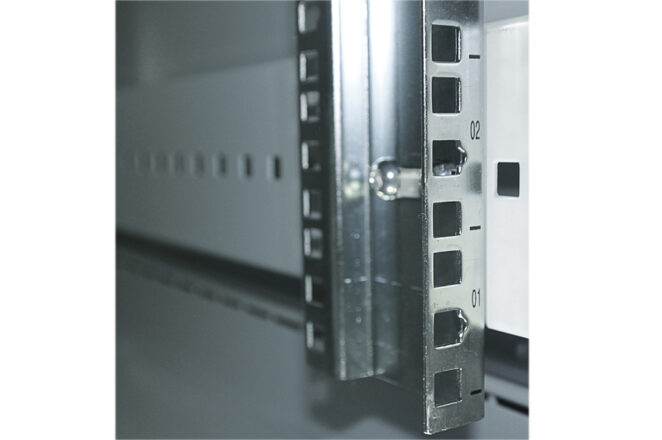

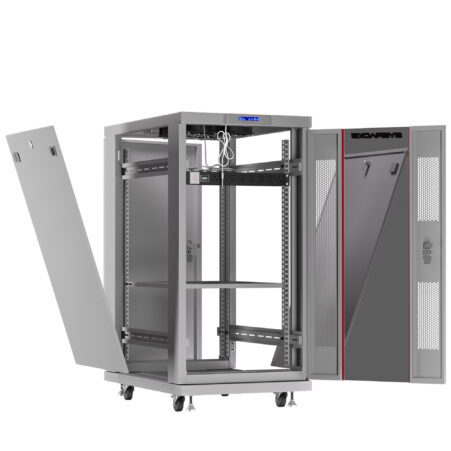

side panels, 2 pairs (front & rear) 19” profiles, brush strip plate,
rolling casters and 4 legs, a set of nuts, bolts, washers and screwdriver.

27U 35” Depth (24″x35″x57″) 19″ IT & Telecom Cabinet SYSRACKS SRF 27.6.9 G photo
Shopping & Handling:
USD
27U 35” Depth (24″x35″x57″) 19″ IT & Telecom Cabinet SYSRACKS SRF 27.6.9 G photo
Scott
2023/03/23

The rack enclosure server cabinet I bought from this site is top-notch. It's well-built, secure, and keeps all my servers running smoothly.

27U 35” Depth (24″x35″x57″) 19″ IT & Telecom Cabinet SYSRACKS SRF 27.6.9 G photo
Terry
2022/11/07

This 27u server rack is an excellent cabinet for mid size hardware. Thoughtful design and sturdy sides.
