22U 39" Depth IT & Telecom Cabinet SRF 22.6.10

710 USD
Transit within 4-6 business days
19" Floor Standing Server Rack Cabinet 22U (24"w x39"d x49"h) (600x1000x1243mm.) (WxDxH), Glass Door (TEMPERATURE CONTROL PANEL,4 fans,1 shelf, 1PDU)

Availability

In Stock

Width

24 in

Depth

39 in (1000mm)

Front door

Glass

Quantity of all packages

5 pcs.

Height

22U

Color

Rail-to-rail max distance

34 in (864mm)

Size of package(-s)

1) 46*8*7 2)46*27*6 3)45*31*6 4)42*26*8 5) 38*9*8

Weight

209.4 lbs

Product information

Benefits
Overview
Instructions & Downloads
Specifications
Shipping cost estimation
Reviews(0)

Kit contents

(Temperature Control System with 4 fans, 2 Brush cable entry, 1 PDU,1 fix shelf, 4 rollers and legs, 2 Latch locks, set of screws and nuts(50 pcs).

  • Active ventilation in base model
  • Brush strip panel for cable entry
  • Flat and compact packaging
  • Convenient to assemble design
  • Clear and simple installation

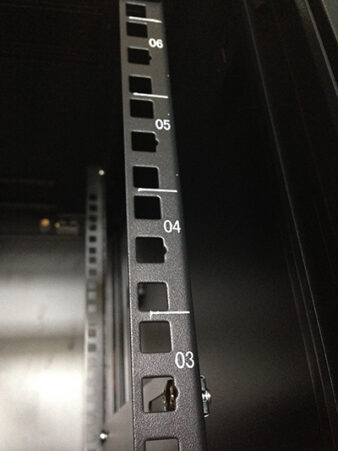

SRF1000 is the right choice, both in terms of cost and quality, for those who need to mount comms and server hardware. The modern, sleek design of this product will fit into any environment very well, both in the office and at home. The rack is extremely robust thanks to its 2 sturdy welded frames. They can withstand up to 1,600 lbs. Brush-type cable inlets are present both in the upper and lower parts of the SRF1000. It serves as an efficient safety measure aimed at protecting your hardware against dust and other undesirable substances or foreign objects. The front door and punched holes ensure the so-called passive ventilation. Active ventilation is implemented by means of the built-in temperature control system. The product uses a special thermostat that manages the temperature in your IT setup. It activates the fan panel in case the predetermined temperature conditions have been met. This option is also available in the base model. Four mounting rails are characterized by high flexibility. It means that you can easily adjust them at the very depth of your hardware and the U-marking fittings that accommodate your equipment. Meanwhile, two detachable side panels prevent third parties from getting access to your hardware. The main benefits of the air control system are as follows:
  • Almost 100% hardware performance with the observation of the optimum temperature range;
  • Minimized power costs;
  • Long-lasting active ventilation components;
  • Efficient noise suppression.

Types of doors:

• Front Glass in metal frame with perforation

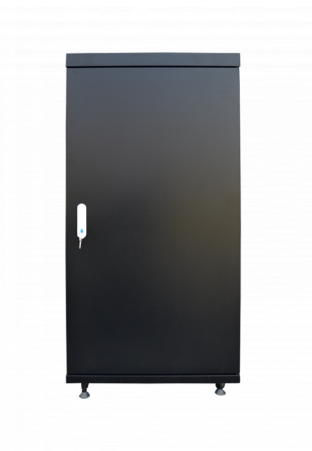

• Rear Solid metal Framework
Cable input:

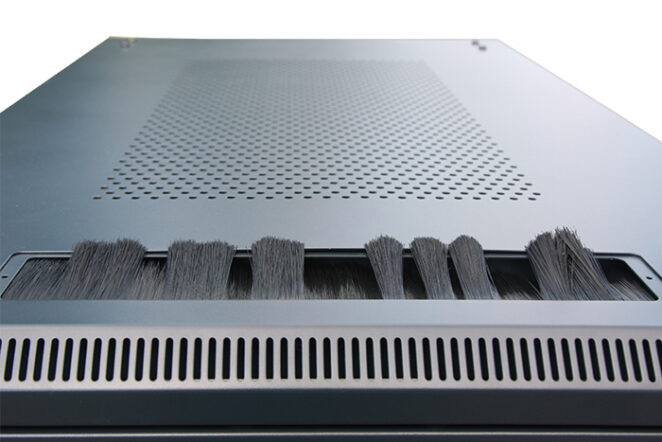

• Top and bottom have dust-tight brush panels

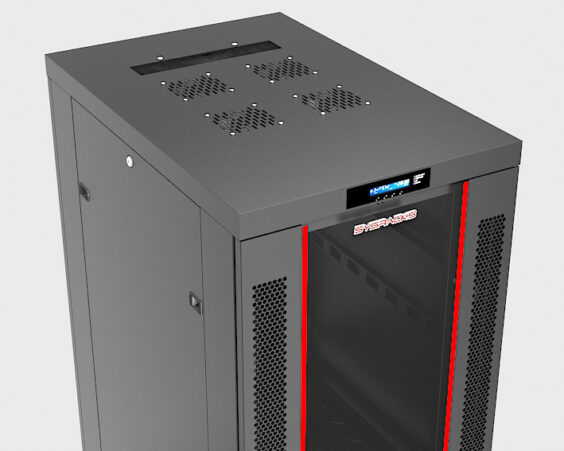

Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors

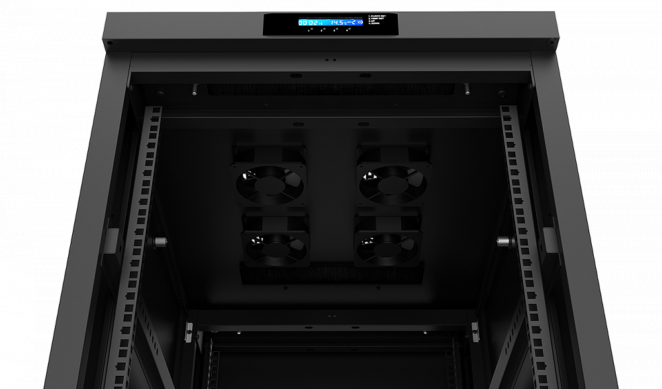

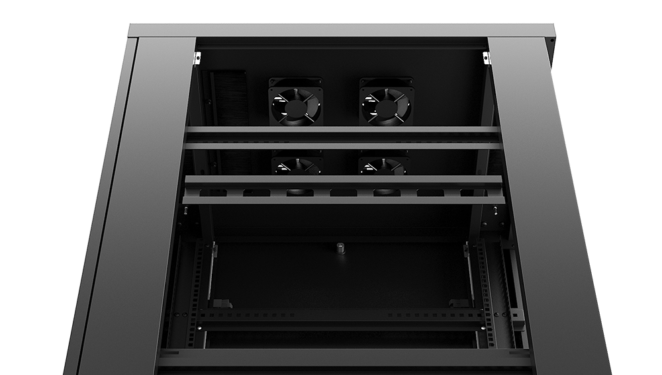

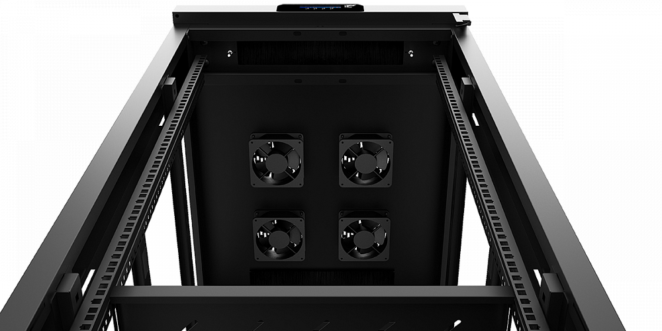

• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005

Supplied non assembled in 4 packages.

Carrying construction – welded front and rear frames.

Base model includes:

o      Temperature Control System with 4 fans

o      2 Brash cable entry

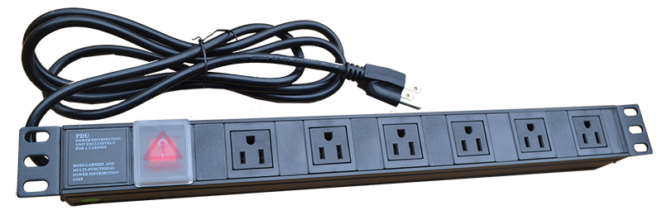

o      1 PDU 6 ways

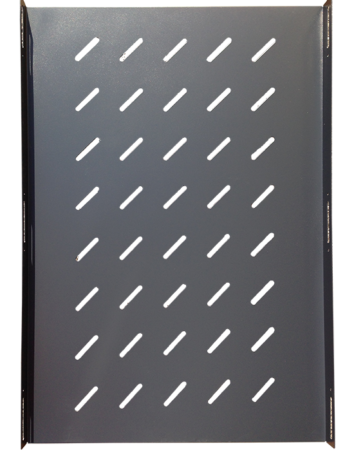

o      1 fix shelf

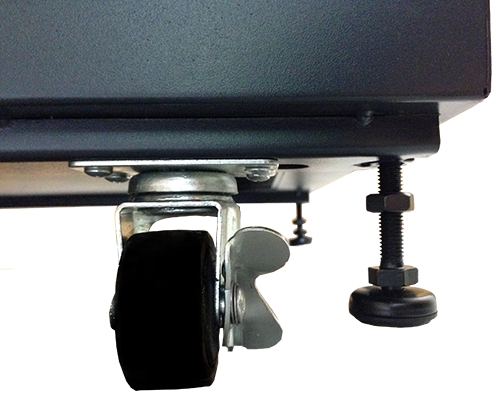

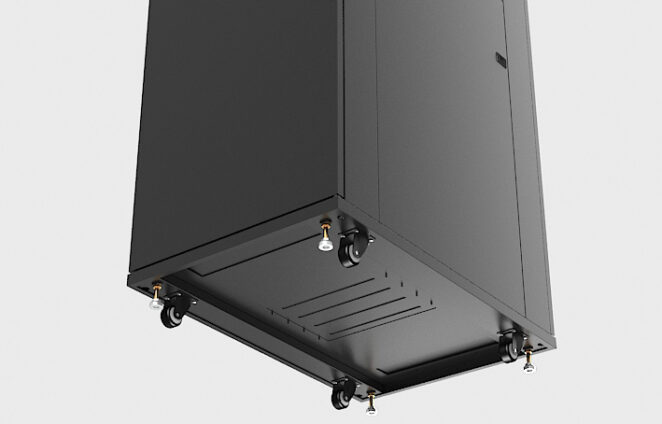

o      4 rollers and legs

o      2 Latch locks

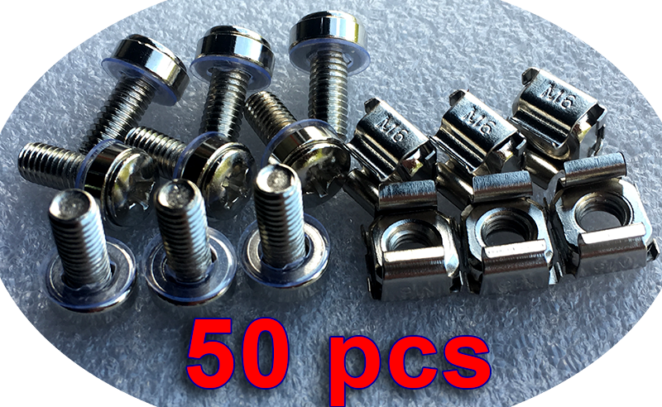

o      Set of screws and nuts (50 pcs).
