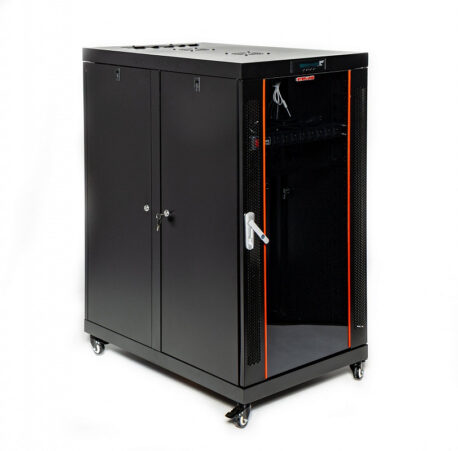

22U 35″ Depth PORTABLE UNDER DESK 19″ Enclosure SYSRACKS PR 22.900 photo

22U 35" Depth PORTABLE UNDER DESK 19" Enclosure SYSRACKS PR 22.900

Name: 22U 35" Depth PORTABLE UNDER DESK 19" Enclosure SYSRACKS PR 22.900
Price: 560 USD
Availability: InStock
Rating: 5 (4 reviews)

560 USD

4 reviews

Transit within 4-6 business days

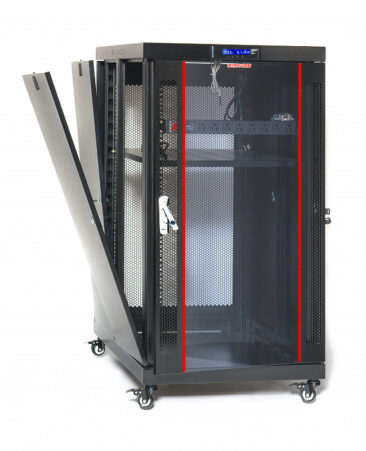

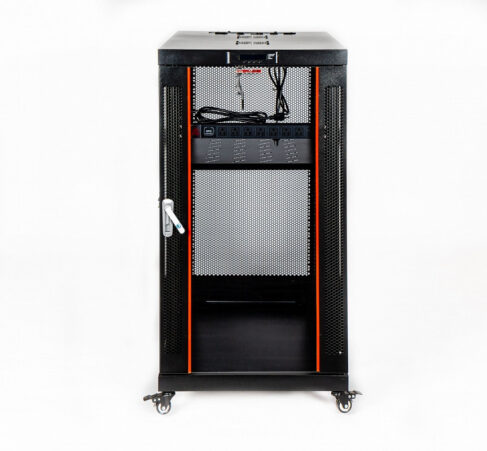

19" PORTABLE UNDER DESK Server Rack Cabinet 22U (24"w x35"d x43"h) (600x900x1085mm.) (WxDxH), Glass Door (Air Control System, 2 fan, 1 shelf, 1PDU, 4 castors, 2 brush cable entries)

Availability

In Stock

Width

24 in

Depth

35 in (900mm)

Front door

Glass

Size of package(-s)

1)37*26*7 2)41*36*7 3)45*8*7

Height

22U

Color

Quantity of all packages

3pcs

Rail-to-rail max distance

31 in (788mm)

Weight

136.7 lbs

Product information

Benefits

Overview

Instructions & Downloads

Specifications

Shipping cost estimation

Reviews(0)

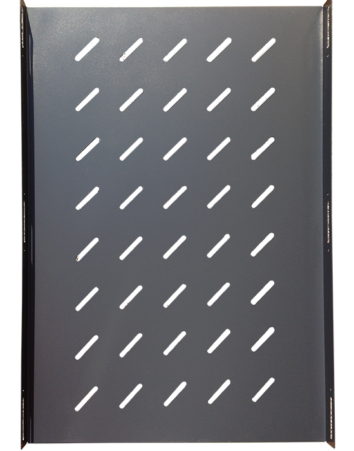

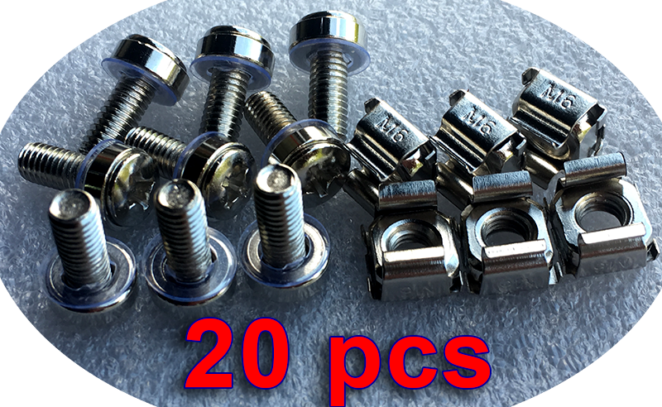

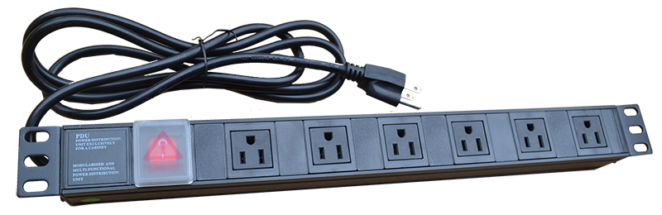

Incredible Kit contents (Air Control System with sensor, 2 fan, 2 Brash cable entry, 1 PDU, 1 fix shelf, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs).
Active ventilation in base mode

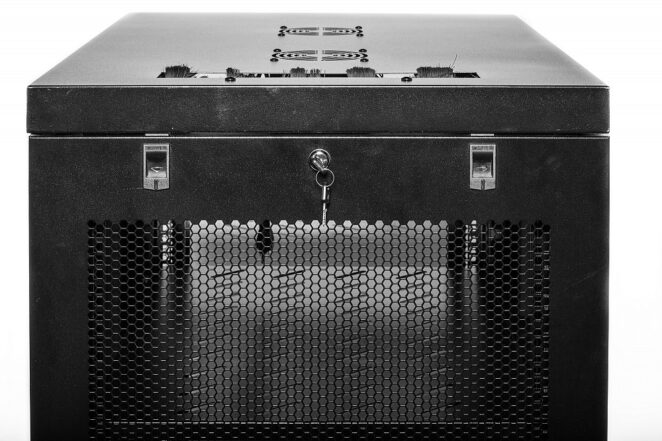

Full removable mesh rear door
Brush strip panel for cable entry
Flat and compact packaging
Convenient to assemble design
Clear and simple installation

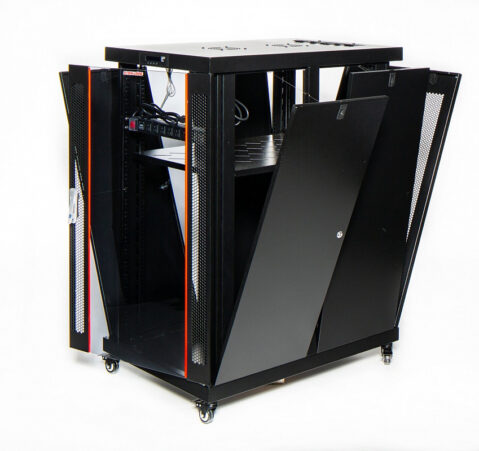

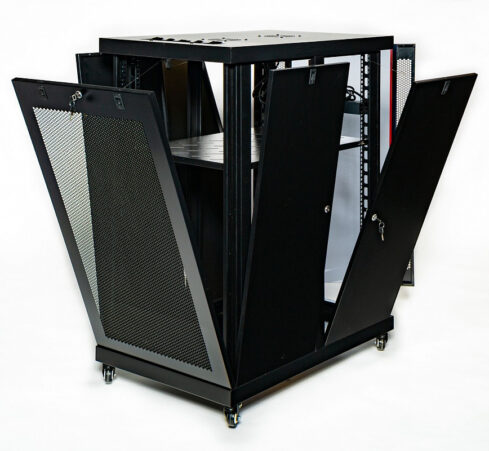

Choosing our rugged floor cabinet gives you a powerful solution for placing server and network equipment. Rest assured, you’ll be pleased with the product’s durable design and the presence of dismountable panels. The installation process is significantly simplified. Thanks to the higher depth value, additional comfort is provided, so you can easily accommodate most modern servers. The item is also suitable for use with any accessories designed for 19-inch racks. The cabinet features 4 reliable fans located on a special panel and an airflow control system. The most appropriate ventilation mode and temperature conditions are also ensured using perforation orifices present on the front and rear doors. The front door, which is manufactured using glass, has quick-release hinges and a handle with a push lock. On top of that, the side panels also feature handles and key locks. The item comes with a pair of vertical stands fitted with U-marking. This ensures stability during the installation of IT setup components.

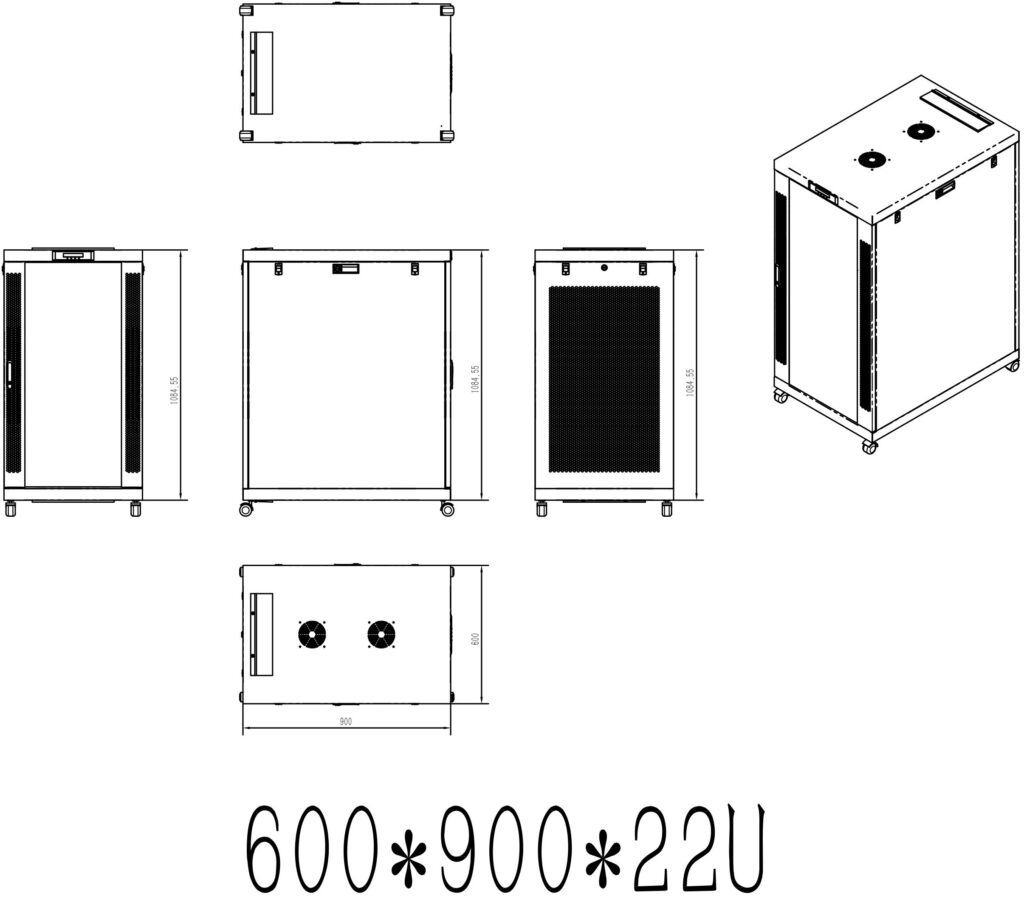

Assembly schemeDownload (PDF)

Table of IP protection ratingsDownload (PDF)

• Height of the enclosure: 22U
• Width: 24″(600mm);
• Depth: 35″(900mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.

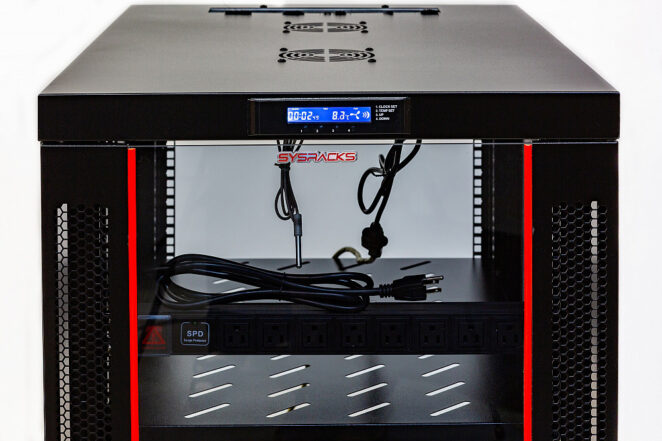

Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top 2 fans module (all models) with temperature setting
IP protection:
• IP41: glass/perforated door
Capacity:
• Static load not exceeding 220 lb.
Material:
• Rolled steel profile
• Frame thickness 2.0 mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anti-corrosive phosphate
Color:
• Black: RAL9005
Kit contents: (2 fans, 2 Brash cable entry, 1 PDU, 1 fix shelf, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs.)

Select country

Select state (province)

Shopping & Handling:

USD

William Sherman

2024/10/23

I needed to purchase a movable server rack for my home CCTV system, and it’s been perfect. The cabinet was easy to assemble and fits well under my desk. The ventilation system with fans keeps everything cool, and the glass door gives it a sleek look while still keeping my equipment secure. Overall, a great choice for organizing my gear at home.

DAVID

2023/09/26

I'm not one to typically leave reviews, but this server rack cabinet on wheels deserves a shoutout. 🌟 Pros: Delivered sooner than expected. The built-in temperature sensor is functional and has a straightforward interface for adjusting settings. The fans kick in automatically when the set temperature is surpassed. Setting it up was relatively easy, even if the instructions could use some clarifying. Even with some transport damage, I was able to install my equipment without any issues. Overall, a fantastic product that exceeded my expectations!

Thomas

2023/03/05

I recently purchased this rolling server cabinet for my business and I'm really impressed with the design and build quality. The installation was easy and the rack itself seems to be very sturdy and reliable, thanks!

Amelia

2022/08/23

Needed one for my under desk server. I wasn't really sure about the server rack dimensions, but that one - 22u - seemed suitable. It came up perfectly, there are also no complaints about the quality. Many thanks!
