This server cabinet is one of the most effective solutions for reliable and comfortable placement of telecommunications devices.
For starters, the cable entry process is significantly simplified by using a meticulously designed brush-type panel.
Secondly, the product in question has a small, compact size. You’ll have a chance to save up to 70% on transportation costs. The ergonomic design allows you to easily assemble the cabinet with your own hands, guided by the detailed manual provided in the kit. What’s more, you’ll be able to do so in the premises with a lack of space, insufficiently wide doorways, or in the absence of a cargo elevator.
The product is equipped with a powerful temperature airflow distribution control system.
Brush-type panels are attached to the cable glands along with cable managers.
The telecommunications rack is equipped with special brakes that guarantee perfect product mobility. Plus, you can handle even heavy-duty hardware.

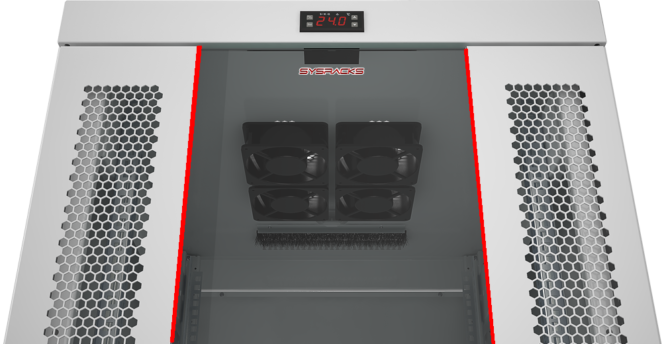

Excessively heated air is effectively removed from the server cabinet thanks to the presence of 4 high-performance fans (with a capacity of up to 440 cu. m per hour), located at the top of the product.
Only one technician will be required for transportation, delivery, and assembly. On top of that, there is no need for any additional mounting devices.
The main tangible benefits of the temperature control system are as follows:
- Full-fledged server hardware performance while maintaining a pre-set temperature range;
- Minimizing electricity costs due to the rational use of energy resources;
- Extended equipment lifecycle;
- Effective reduction of noise emissions.

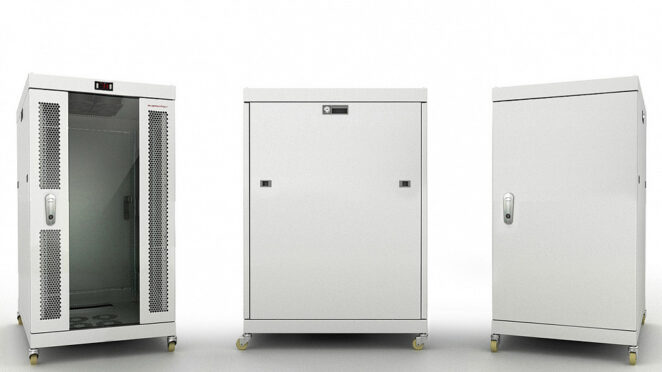

3 types of doors:
• Glass in metal frame with perforation;
• Perforated metal;
• Solid metal Framework:
• Prefabricated profile sections
Cable input:
• Top and bottom have dust-tight brush panels with cable managers
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1800 lb.
Material:
•Rolled steel profile
• Frame thickness: 2 mm, 19” profiles 2mm, other components parts; 1.5mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Grey: RAL7035
Kit contents:
• Base model includes:
set of doors,AIR CONTROL SYSTEM, active ventilation,
side panels, 2 pairs (front & rear) 19” profiles, brush strip plate,
rolling casters and 4 legs, a set of nuts, bolts, washers and screwdriver.
