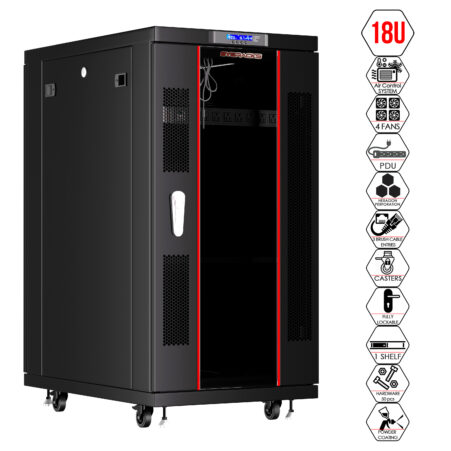

18U 39" Depth IT & Telecom Cabinet SRF 18.6.10

670 USD
2 reviews
Transit within 4-6 business days
19" Floor Standing Server Rack Cabinet 18U (24"w x39"d x42"h) (600x1000x1065mm.) (WxDxH), Glass Door (TEMPERATURE CONTROL PANEL, 4 fans,1 shelf, 1PDU)

Availability

In Stock

Width

24 in

Depth

39 in (1000mm)

Front door

Glass

Quantity of all packages

5 pcs.

Height

18U

Color

Rail-to-rail max distance

34 in (864mm)

Weight

187.3 lbs

Size of package(-s)

1) 39*8*7 2)39*27*6 3)39*31*6 4)42*26*8 5) 38*98

Product information

Benefits
Overview
Instructions & Downloads
Specifications
Shipping cost estimation
Reviews(0)

Kit contents

(Temperature Control System with 4 fans, 2 Brush cable entry, 1 PDU,1 fix shelf, 4 rollers and legs, 2 Latch locks, set of screws and nuts(50 pcs).

  • Active ventilation in base model
  • Brush strip panel for cable entry
  • Flat and compact packaging
  • Convenient to assemble design
  • Clear and simple installation

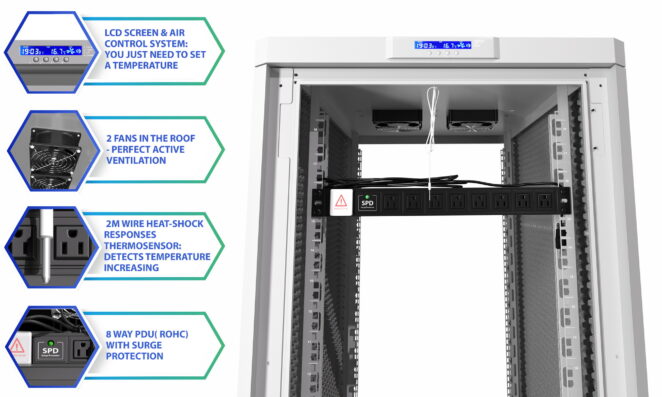

The SRF1000 is by far the right choice for any technician who is currently planning to install server equipment or telecommunications components. It’ll be especially appealing to those who aim to find a compromise between the cost and quality. The excellent, elegant design of the product will harmoniously fit into almost any environment, both in the office and at home. The durability and reliability of the rack is achieved through the use of two welded frames having increased strength. What’s more, they are able to withstand a weight of up to 1,600 pounds. There is also a brush-type cable inlet in both the upper and lower parts of the rack. This element makes it possible to protect the hardware from the ingress of all kinds of small electrically conductive particles or foreign objects, in particular dust. The product in question allows you to benefit from both passive and active types of ventilation. The first is provided by the front door and perforation orifices made on the side. The latter is implemented through a temperature control system represented by a thermostat. It is responsible for temperature control within the server environment. At the right moment, when the set temperature conditions are met, the said system activates the cooling panel. Four convenient mounting rails can be easily adjusted even at the very depth of your hardware. Plus, the special U-marking greatly simplifies the placement of devices in the rack. Two removable panels, fixed with latches, significantly increase the level of security in your server room. The distinct advantages of the temperature control system are as follows:
  • Noticeable improvement of equipment performance;
  • Maintenance of optimal temperature conditions;
  • Reduction of electricity costs;
  • Extension of the service life of active ventilation components;
  • Effective noise suppression.

Types of doors:

• Front Glass in metal frame with perforation

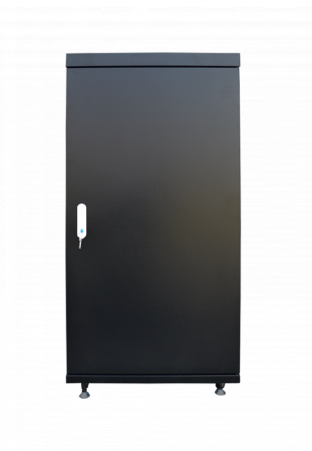

• Rear Solid metal Framework
Cable input:

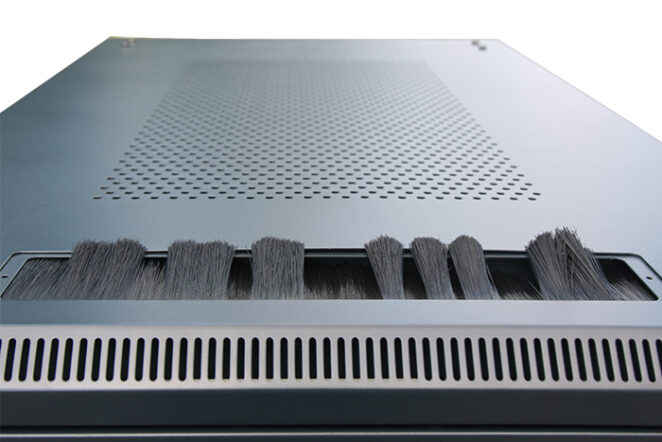

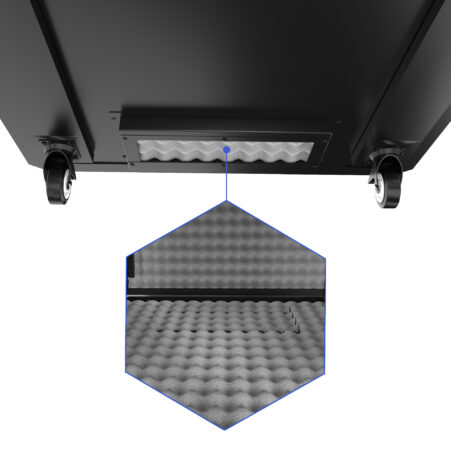

• Top and bottom have dust-tight brush panels

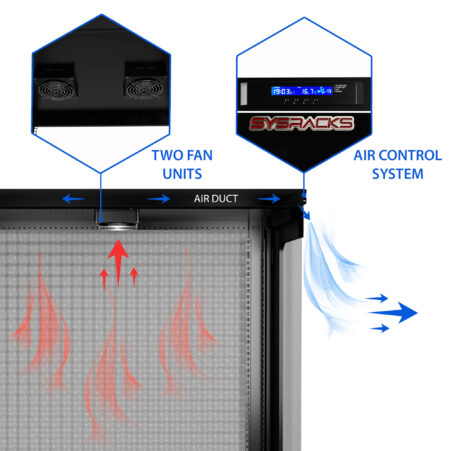

Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors

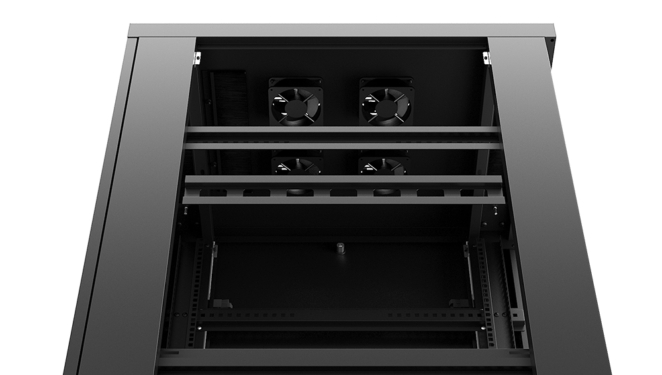

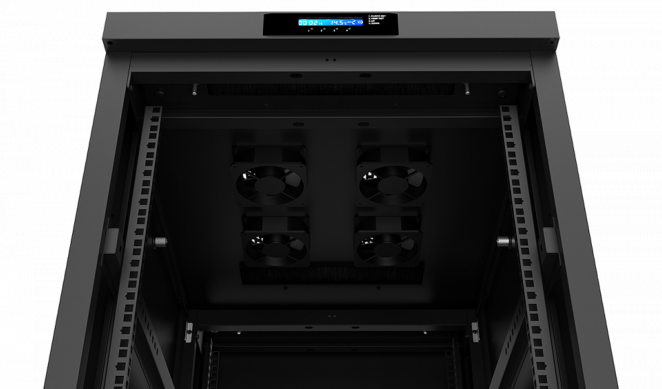

• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005

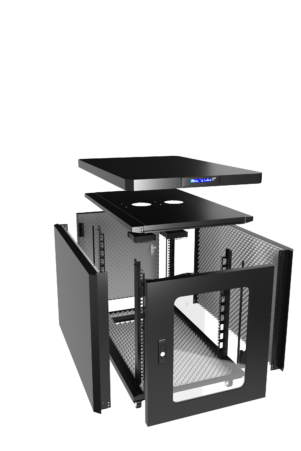

Supplied non assembled in 4 packages.

Carrying construction – welded front and rear frames.

Base model includes:

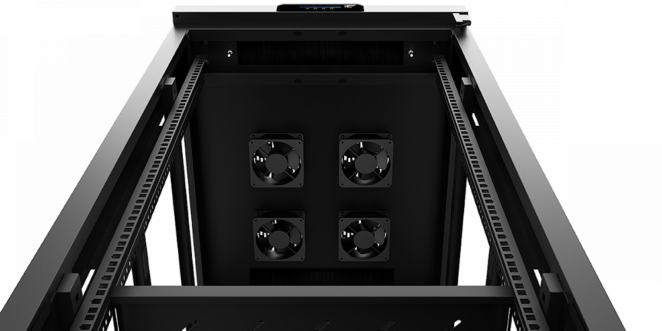

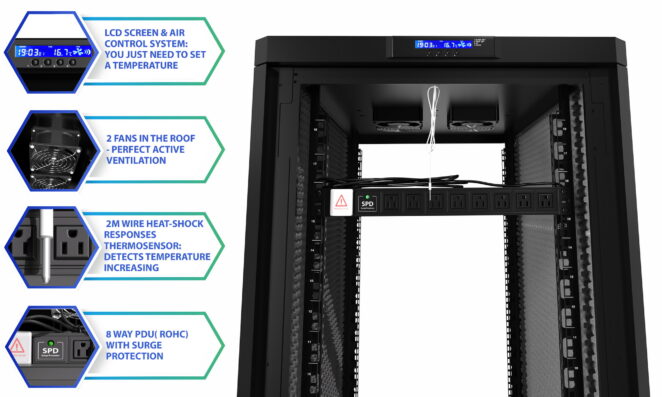

o      Temperature Control System with 4 fans

o      2 Brash cable entry

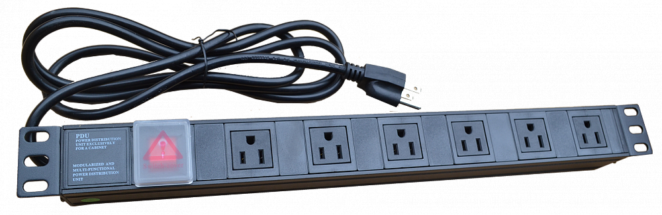

o      1 PDU 6 ways

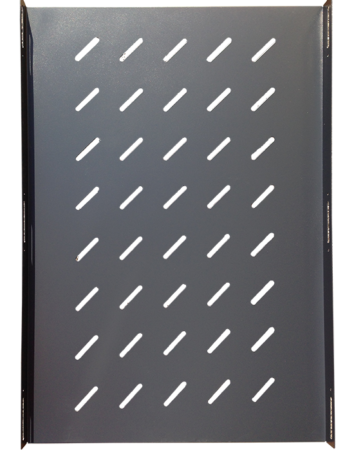

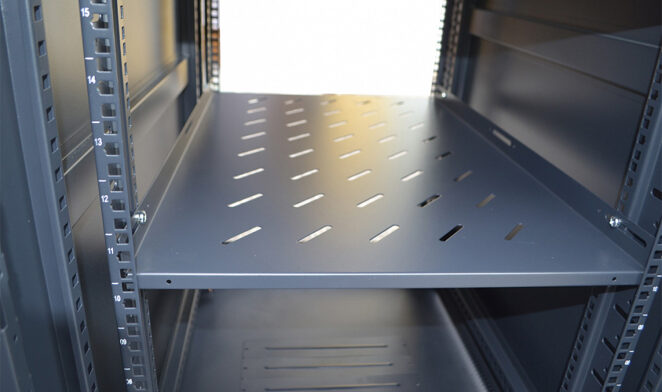

o      1 fix shelf

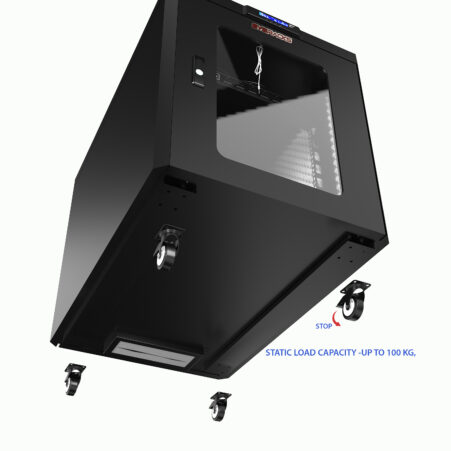

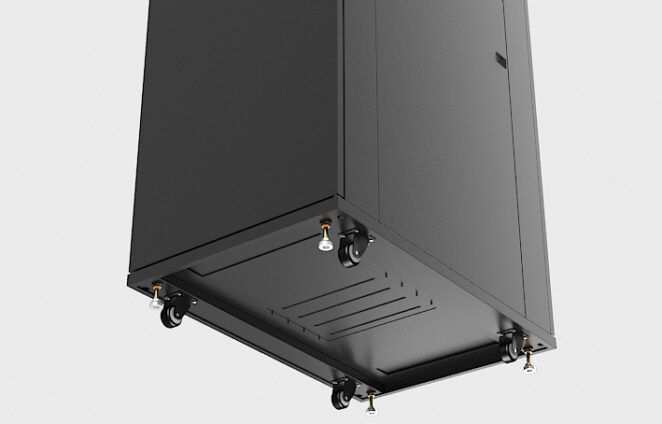

o      4 rollers and legs

o      2 Latch locks

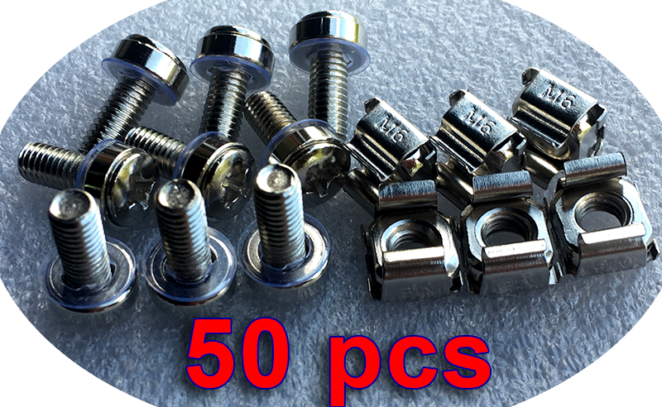

o      Set of screws and nuts (50 pcs).
