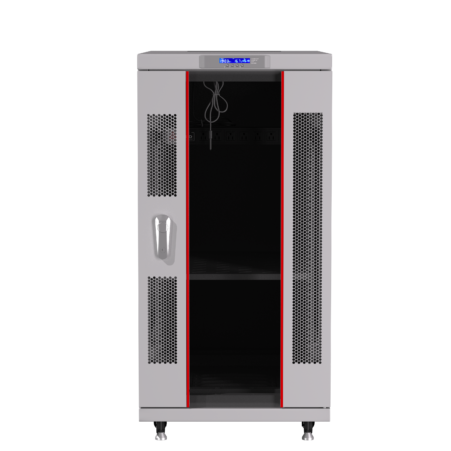

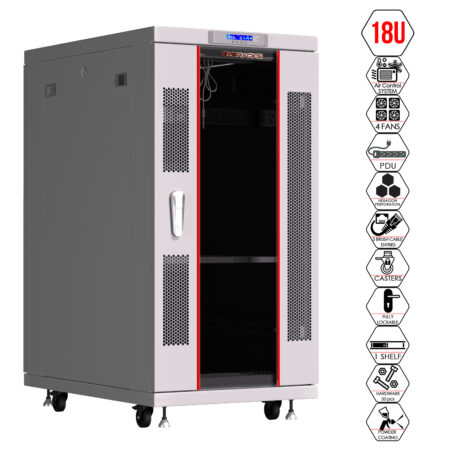

18U 35'' Depth (24"x35"x42") 19" IT & Telecom Cabinet SYSRACKS SRF 18.6.9 G

670 USD
Transit within 4-6 business days
19" Floor Standing Telecommunication Cabinet 18U 24"x35"x42" (600x900x1065mm.) (WxDxH), Glass Door  (AIR CONTROL SYSTEM, 4 fans)

Availability

In Stock

Weight

152.7 lbs

Width

24 in

Depth

35 in (900mm)

Front door

Glass

Quantity of all packages

5 pcs.

Height

18U

Color

Rail-to-rail max distance

30 in (762mm)

Size of package(-s)

1) 39*8*7 2)39*27*6 3)39*27*5 4)38*26*8 5)33*9*8

Product information

Benefits
Overview
Instructions & Downloads
Specifications
Shipping cost estimation
Reviews(0)
  • Factory installed AIR-Control system
  • Active ventilation in base model
  • Brush strip panel for cable entry
  • Flat and compact packaging
  • Convenient to assemble design
  • Clear and simple installation
This product is the optimal solution for the proper placement of telecommunications equipment and the arranging of communication centers. The kit is delivered in a small flat package, which greatly facilitates transportation. The installation process is also pretty straightforward. The cable glands are supplied with cable managers and a strip panel of brush type for inserting the electrical cable. The server rack itself is equipped with high-strength casters capable of braking, which guarantees their high flexibility and mobility. The elimination of excessive hot air from the active work area is carried out by a panel of four fans mounted in the upper part of the rack. Their capacity is 440 m per hour. Compact packaging renders it probable to get rid of up to 70% of potential transportation costs. The prefabricated structure makes it possible to deliver and install the rack in cluttered rooms with narrow doors, even in the absence of freight elevators. In order to complete the delivery of the rack, only one technician is required. What’s more, there’s no need for any special means of transportation or fasteners.
Distinctive features of the air flow distribution control system are as follows:
  • Maximum possible equipment performance;
  • Strict observance of optimal temperature conditions;
  • Reduction of energy costs;
  • Long service life of active ventilation components;
  • Efficacious noise abatement.

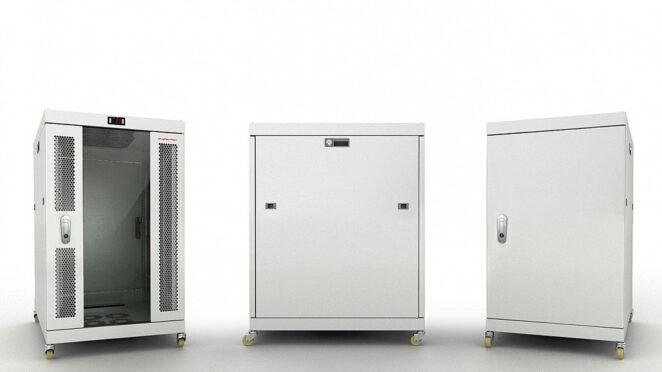

3 types of doors:
• Glass in metal frame with perforation;
• Perforated metal;
• Solid metal Framework:

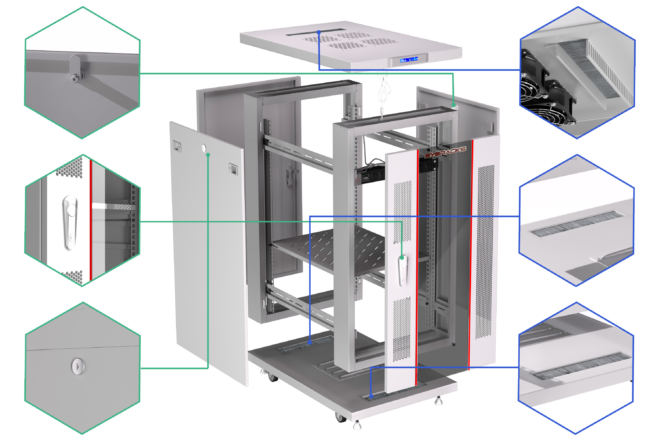

• Prefabricated profile sections
Cable input:
• Top and bottom have dust-tight brush panels with cable managers
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1800 lb.
Material:
•Rolled steel profile
• Frame thickness: 2 mm, 19” profiles 2mm, other components parts; 1.5mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Grey: RAL7035
Kit contents:
• Base model includes:
set of doors,AIR CONTROL SYSTEM, active ventilation,
side panels, 2 pairs (front & rear) 19” profiles, brush strip plate,
rolling casters and 4 legs, a set of nuts, bolts, washers and screwdriver.
