18U 32" Depth IT & Telecom Cabinet SRF 18.6.8

640 USD
2 reviews
Transit within 4-6 business days
19" Floor Standing Server Rack Cabinet 18U (24"w x32"d x42"h) (600x800x1065mm.) (WxDxH), Glass Door (AIR Control System, 4 fans,1 shelf, 1PDU)

Availability

In Stock

Width

24 in

Depth

32 in (800mm)

Front door

Glass

Quantity of all packages

5 pcs.

Height

18U

Color

Rail-to-rail max distance

27 in (686mm)

Size of package(-s)

1)39*8*7 2)39*27*6 3)39*24*5 4)34*26*8 5)30*9*8

Weight

165.3 lbs

Product information

Benefits
Overview
Instructions & Downloads
Specifications
Shipping cost estimation
Reviews(0)
  • Preinstalled Air Controller- you just need to set a temperature.
  • 4 fans in the roof- perfect Active ventilation

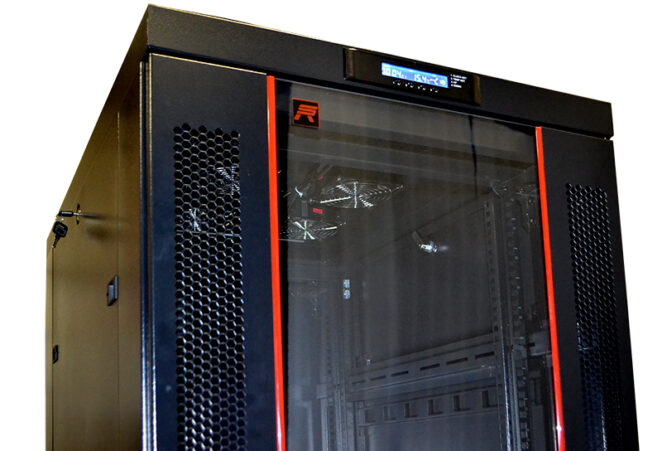

  • Hexagon perforated front (Glass) door frames- gorgeous design and additional air circulation.

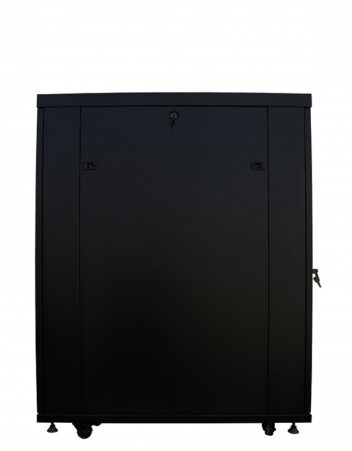

  • 2 removable side panels – ease access to any level equipment.
  • 3 Brush cable entries- aloud to inset cabling from any side of cabinet with gust protection.
  • 8 way PDU( ROHC) and 1 shelf  in a base model
  • 2 spring lunch looking Doors
  • Max distance between U-mark mounting rails-30”(760mm)
The server rack in question is designed to accommodate telecommunications equipment and arrange communication centers. Together with its accessories, it is delivered in a small-sized flat box, optimally suited for transportation. The most noticeable advantage lies in the fact that this packaging enables you to reduce carrying and storage costs by up to 70%. The product is fitted with built-in active ventilation components and an effective temperature control system. The cable glands are equipped with strip panels of brush type and cable managers. The item also stands out from its counterparts thanks to the presence of durable, stable, and movable casters that come with a braking option. Heated air is eliminated from the work area by means of a cooling panel that consists of four fans. It is located in the upper part of the rack and has a capacity of 440 cub. m per hour. The rack is supplied in a disassembled form, which makes the delivery process much easier. What’s more, you’ll get an opportunity to successfully install it in crammed rooms with extremely narrow doorways, in particular in buildings with no freight elevators. At the time being, only 1 technician is required to deliver the rack.
The benefits of the temperature control system:
  • Impressive performance of IT setup components;
  • Maintaining the most acceptable temperature conditions;
  • Noticeable reduction in energy costs;
  • Extending the service life of active ventilation devices;
  • Minimizing noise emissions.

Types of doors:

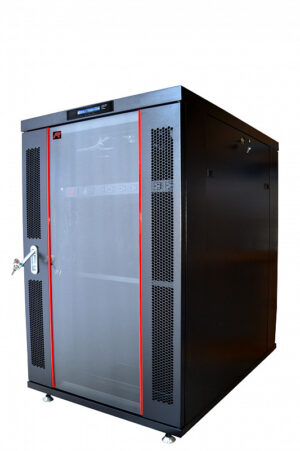

• Front Glass in metal frame with perforation

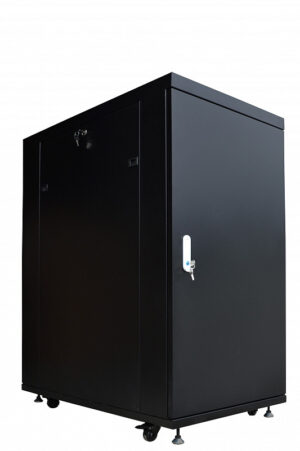

• Rear Solid metal Framework
Cable input:
• Top and bottom have dust-tight brush panels
Ventilation:
• Passive – convection heat flow due to perforation of front and rear doors
• Active – Temperature Control System with 4 fans (all models)
IP protection:
• IP41: glass/perforated sash
• IP20: perforated door
Capacity:
• Static load not exceeding 1600 lb.
Material:
•Rolled steel profile
• Frame thickness:1.2 mm; 19” profiles 2mm; side panels:1.0 mm; other components parts:1.2 mm
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005

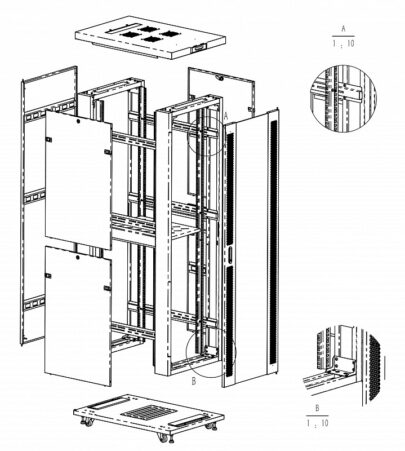

Supplied non assembled in 5 packages.

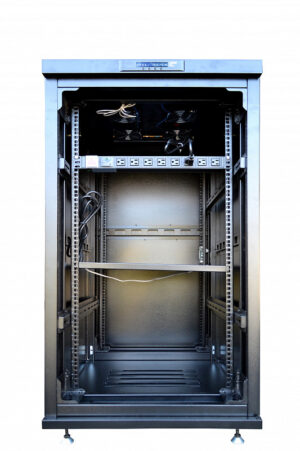

Base model includes:

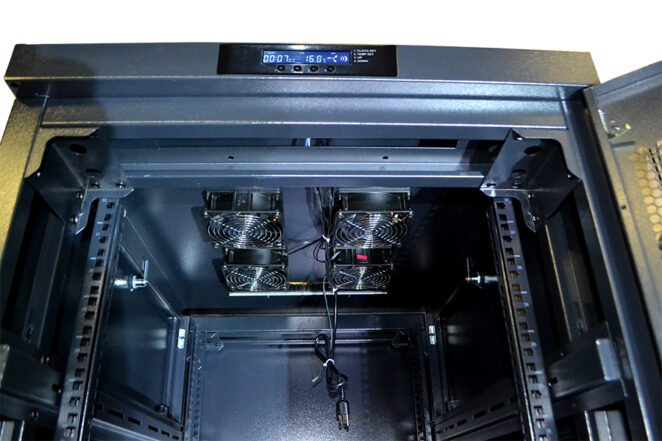

Temperature Control System with 4 fans

3 Brash cable entry

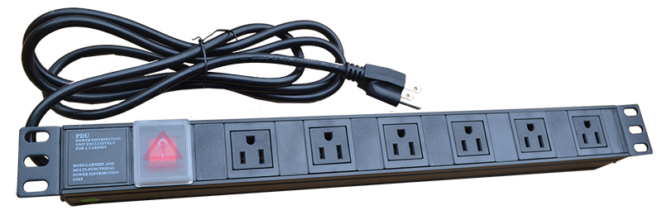

1 PDU 8 ways

1 shelf

4 rollers and legs

2 Latch locks

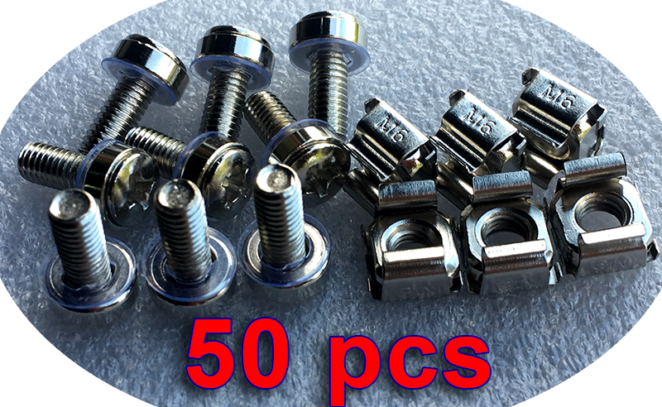

Set of screws and nuts (50 pcs).

18U 32″ Depth IT & Telecom Cabinet SRF 18.6.8 photo
Shopping & Handling:
USD
18U 32″ Depth IT & Telecom Cabinet SRF 18.6.8 photo
Marcus Ziemann
2023/07/26

This 18U rack enclosure is impressively sturdy and offers ample space. The inclusion of front and back doors, along with various side doors, simplifies server installation and maintenance. The case's bottom also features additional entries that can be advantageous depending on your configuration. The assembly process, however, could be smoother. The instructions could use some refinement as they can be puzzling, especially when determining which parts to use at each stage. The sequence of images is also somewhat disorganized. For instance, one of the initial images depicts the case at a later construction phase rather than just assembling the initial frame. On the bright side, the instructions do differentiate between various case sizes, which is beneficial. Despite these minor issues, the assembly was relatively straightforward. I just wish the instructions were more user-friendly.

18U 32″ Depth IT & Telecom Cabinet SRF 18.6.8 photo
Hector Jones
2022/09/22

Just received one - glad to note that the shipping was quite fast. The quality of that data server cabinet is also unquestionable.
