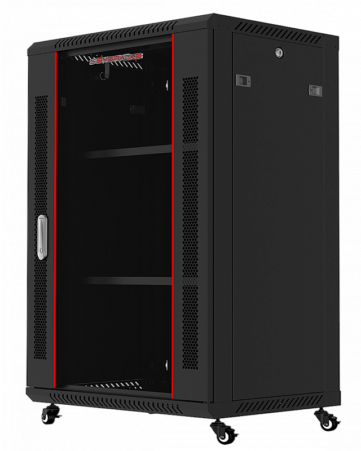

18U 24″ Depth Wall Mount 19″ Enclosure SRW 18.600 photo

18U 24" Depth Wall Mount 19" Enclosure SRW 18.600

Name: 18U 24" Depth Wall Mount 19" Enclosure SRW 18.600
Price: 290 USD
Availability: InStock

290 USD

Transit within 4-6 business days

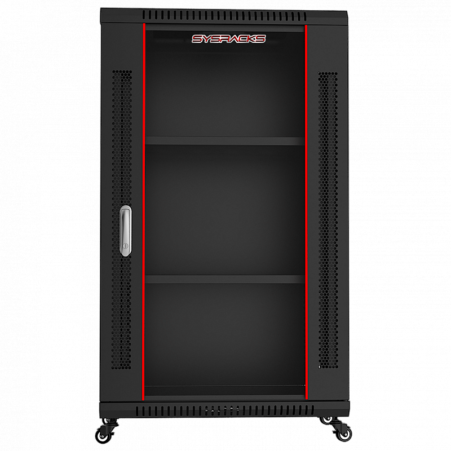

19" Wall Mount Server Rack Cabinet 18U (24"w x24"d x35"h) (600x600x901mm.) (WxDxH), Glass Door (1 fan, 2 shelves, 1PDU, 4 feet, 2 brush cable entries)

It is strongly recommended using the cabinet as a floor (free) standing unit, although the structure allows mounting the cabinet on vertical surfaces. Using the cabinet as wall mount unit is the user's responsibility. For this reason, the cabinet is supplied with a set of castors.

Availability

In Stock

Weight

77 lbs

Size of package

25x8x36 mm

Width

24 in

Depth

24 in (600mm)

Front door

Glass

Quantity of all packages

1pcs

Color

Height

18U

Rail-to-rail max distance

20 in (508mm)

Size of package(-s)

38*27*11

Product information

Benefits

Overview

Instructions & Downloads

Specifications

Shipping cost estimation

Reviews(0)

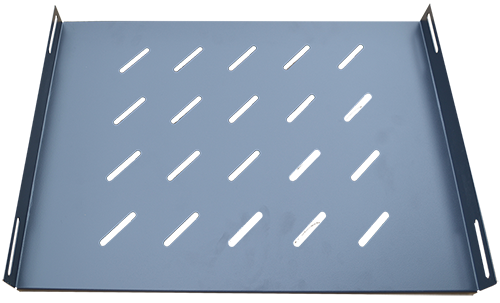

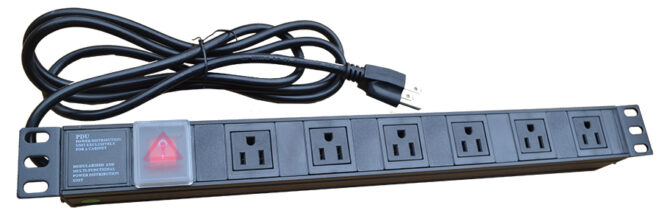

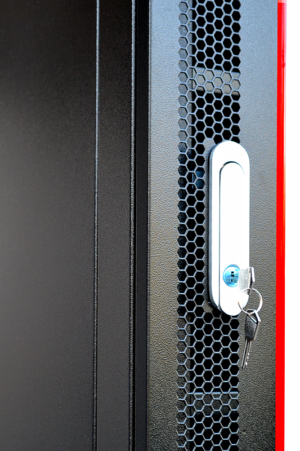

Incredible Kit contents (1 fan, 2 Brash cable entry, 1 PDU, 2 fix shelves, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs).
Active ventilation in base model

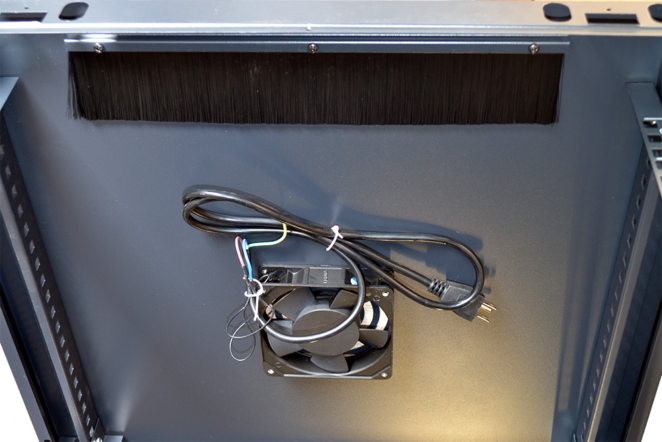

Brush strip panel for cable entry
Flat and compact packaging
Convenient to assemble design

Clear and simple installation

The product in question is manufactured with the use of special rubber pads and makes it possible to boost the performance of your setup. The leveling feet are intended for use with floor-mounted cabinet models. They will enable you to align the rack appropriately when it’s being installed horizontally. On top of that, you won’t have to face such troubles as insufficient stability or exposure to hazardous vibrations.

Assembly schemeDownload (PDF)

Table of IP protection ratingsDownload (PDF)

• Height of the enclosure: 18U (901 mm)
• Width: 24″(600mm);
• Depth: 24″(600mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005

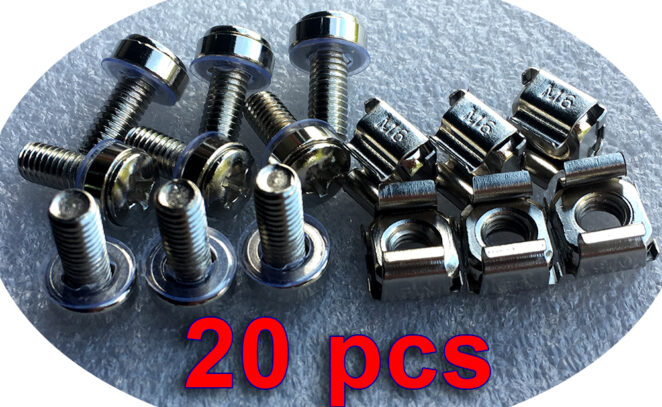

Kit contents: (1 fans, 2 Brash cable entries, 1 PDU,2 fix shelves, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs)
