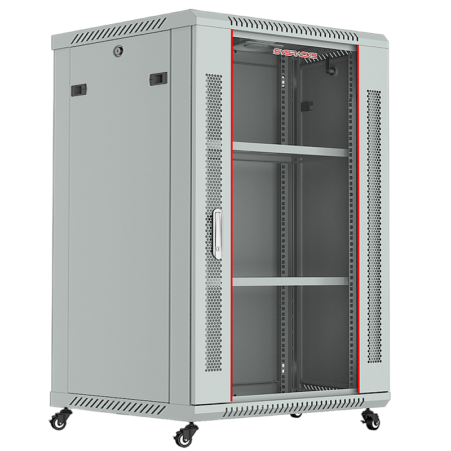

18U 24” Depth (24″x24″x35″) Wall Mount 19″ Enclosure SRW 18.600 G photo

18U 24'' Depth (24"x24"x35") Wall Mount 19" Enclosure SRW 18.600 G

Name: 18U 24'' Depth (24"x24"x35") Wall Mount 19" Enclosure SRW 18.600 G
Price: 290 CAD
Availability: InStock

290 CAD

Transit within 4-6 business days

19 " Multi-function Wall Mount Enclosure 18U 24"x24"x35" (600x600x901) mm. (WхDхH) Glass Door (1 fan, 2 shelves, 1PDU, 4 feet, 2 brush cable entries)

Availability

Out Of Stock

Weight

94.8 lbs

Size of package

27x10x38 mm

Color

Depth

24 in (600mm)

Front door

Glass

Height

18U

Width

24 in

Size of package(-s)

38*27*11

Quantity of all packages

1pcs

Product information

Benefits

Overview

Instructions & Downloads

Specifications

Shipping cost estimation

Reviews(0)

Incredible Kit contents (1 PDU,1 fan, 2 Brash cable entry, 2 fix shelves, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs).
Active ventilation in base model
Brush strip panel for cable entry
Flat and compact packaging
Convenient to assemble design

Clear and simple installation

The main goal of this server cabinet is to boost the safety of your IT infrastructure. Lockable and dismountable panels and doors, which come with a set of two keys, will enable you to prevent outside parties from accessing or tampering with your hardware. Nonetheless, authorized personnel will be able to promptly install, service, or update the components of your server environment. The perforation orifices on the front door improve air ingress and make airflow work in such a way as to adequately cool down the hardware. The cable gland of brush type serves as a measure aimed at protecting your equipment against microscopic electroconductive particles, including dust. Flexible and tuneable mounting rails fitted with U-marking and square orifices render it probable to tailor the internal area to a wide array of auxiliary components and appliances of any brand so that they fit into the server cabinet perfectly well. 4 convenient casters make it possible to change the cabinet with a view to transforming it into a floor-standing version. But please don’t exceed the established acceptable load capacity, which is equal to 133 pounds. The product comes together with a kit of mounting fixtures. It consists of 20 M6 cage nuts and bolts. The 24-inch depth is the best choice for a vast variety of routers, switches, digital video recorders, audiovisual equipment, etc. You’ll also have sufficient clearance for laying cables, wiring, and adequate airflow distribution. The base model is supplied with the following components:

Cooler in the upper part of the cabinet;
8-port power distribution device;
Two fixed shelves;
Four flexible feet;
Lockable and detachable front door and side panels;
A brush strip panel for inserting an electric cable (both in the upper and lower part of the product);
U-marking on mounting rails;
A full kit of 20 bolts and nuts.

Dimensions

Width: 24”
Depth: 24”
Height: 35”
Internal depth: 24 inches—from the front door to the back panel
Maximum allowable load: up to 133 pounds
Color: Gray, RAL 7035

Assembly schemeDownload (PDF)

Table of IP protection ratingsDownload (PDF)

• Height of the enclosure: 18U (901mm)
• Width: 24″(600mm);
• Depth: 24″(600mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Gray: RAL 7035
Kit contents: (1 PDU, 1 fans, 2 Brash cable entry, 2 fix shelves, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs)
