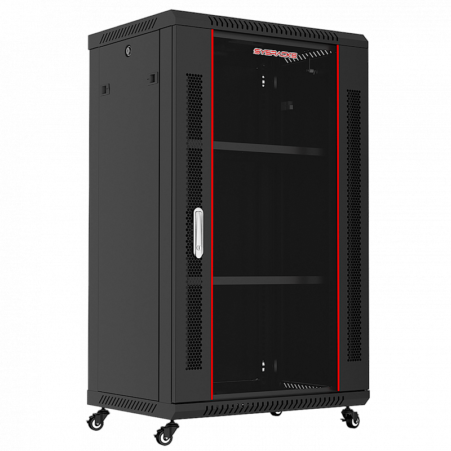

18U18″ in. Depth Wall Mount 19″ Enclosure SRW 18.450 photo

18U18" in. Depth Wall Mount 19" Enclosure SRW 18.450

Name: 18U18" in. Depth Wall Mount 19" Enclosure SRW 18.450
Price: 240 USD
Availability: InStock

240 USD

Transit within 4-6 business days

19" Wall Mount Server Rack Cabinet 18U (24"w x18 "p x35 "h) (600x450x901mm.) (WxDxH), Glass Door (1 fan, 2 shelves, 1PDU, 4 feet, 2 brush cable entries)

It is strongly recommended using the cabinet as a floor (free) standing unit, although the structure allows mounting the cabinet on vertical surfaces. Using the cabinet as wall mount unit is the user's responsibility. For this reason, the cabinet is supplied with a set of castors.

Availability

In Stock

Size of package

25x6x36 mm

Width

24 in

Front door

Glass

Height

18U

Color

Depth

18 in (450mm)

Quantity of all packages

1pcs

Rail-to-rail max distance

14 in (356mm)

Size of package(-s)

38*36*8

Weight

72.7 lbs

Product information

Benefits

Overview

Instructions & Downloads

Specifications

Shipping cost estimation

Reviews(0)

Incredible Kit contents (1 fan, 2 Brash cable entry, 1 PDU, 2 fix shelves, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs).
Active ventilation in base model
Brush strip panel for cable entry
Flat and compact packaging
Convenient to assemble design

Clear and simple installation

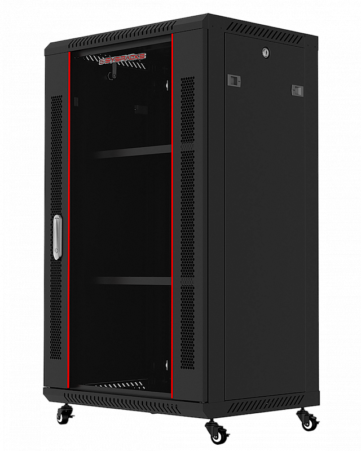

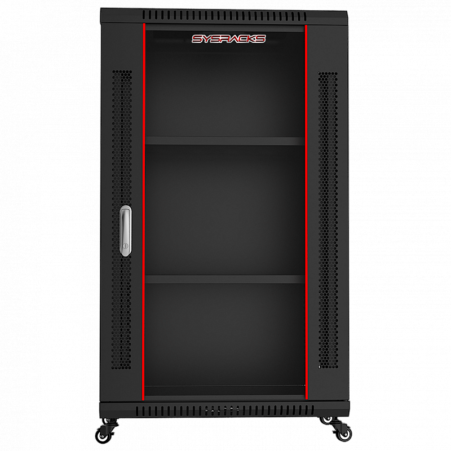

19” Wall Mount Server Rack Cabinet 18U comes with an effective, ergonomic design.

Perforated front door will enable you to efficiently get rid of excessive heated air from the server cabinet. What’s more, you’ll be able to ensure optimized airflow distribution, which will guarantee the desirable cooling conditions for your hardware.

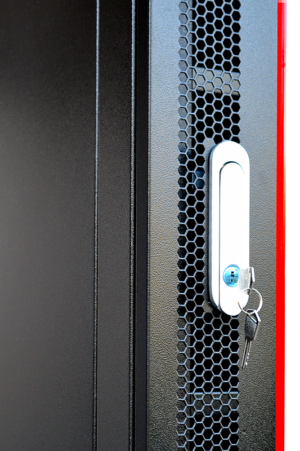

The availability of a convenient snap lock on the front door will allow you to access your hardware in no time and without effort.
A brush-type cable inlet serves as an efficient safety measure against the ingress of dust into the crucial components of your IT environment. It also serves as a barrier against other small-sized electroconductive substances or foreign objects.

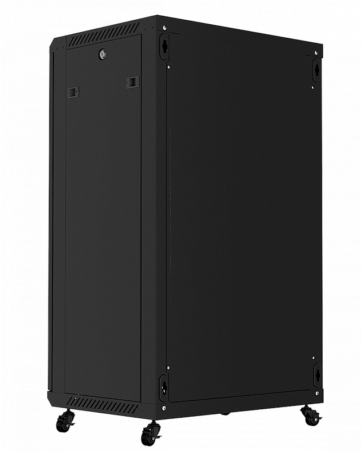

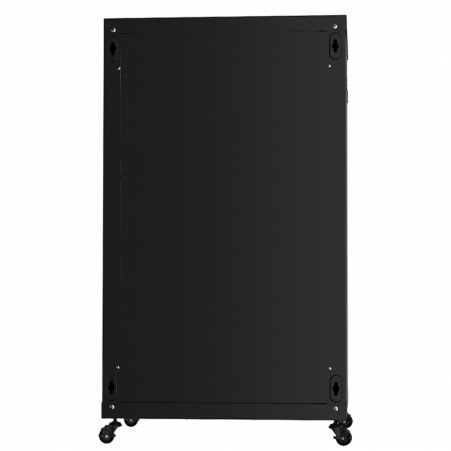

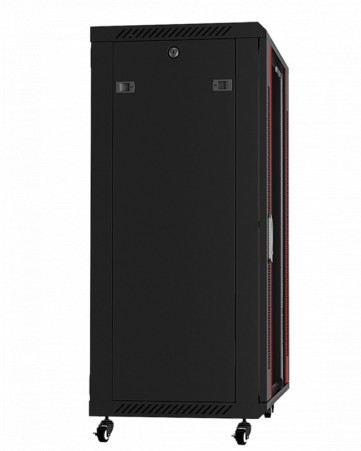

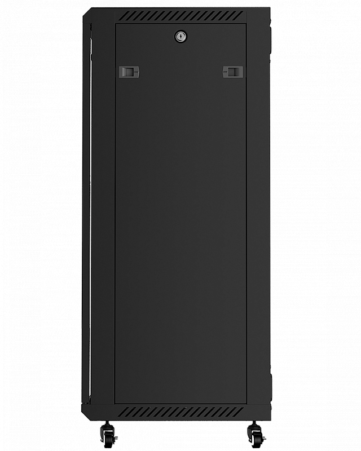

Easily lockable and detachable panels ensure almost 100% safety for your hardware. All your expensive equipment will be duly protected thanks to our lockable doors, along with detachable side and back panels, which are supplied together with two keys. No outside party will be able to gain access to your sensitive data. Still, authorized employees won’t have any trouble at all when installing, maintaining, or upgrading your hardware.

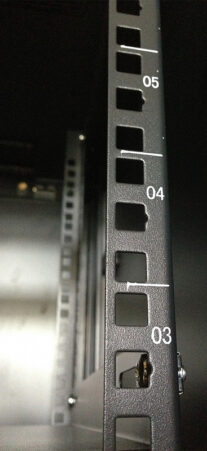

Flexible U-marking mounting rails along with square orifices will assist you in tailoring the internal space to a broad spectrum of devices, fixtures, and additional components so as to make sure that they fit into the server cabinet. On top of that, U-marking significantly facilitates and accelerates the installation process. It’ll enable you to choose the most suitable spot for mounting your hardware.
4 highly flexible standing feet available in the base model will provide the opportunity to turn your wall-mounted cabinet into a fully functioning floor-standing model. Nonetheless, under no circumstances should you exceed the maximum acceptable load capacity, which is equal to 133 lbs.

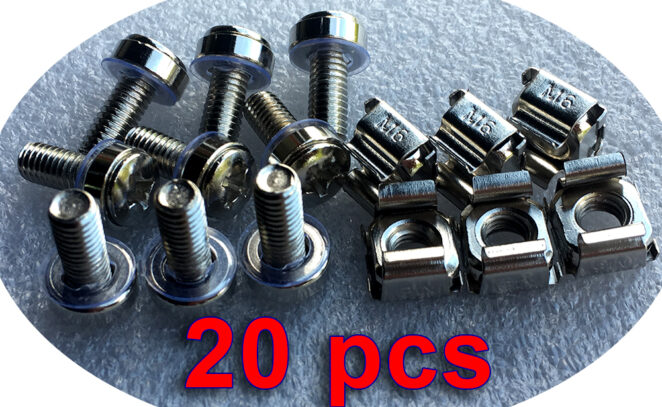

Convenient mounting fixtures will make the installation process as easy as ABC. The fact is that the product is supplied with a full kit of nuts and screws. In total, it includes 20 pcs.
The Optimum external depth of 18 inches is sufficient for mounting the majority of switches, audiovisual equipment, digital video recorders, comms hardware, safeguarding systems, etc. You’ll have enough clearance for arranging cable supply and airflow distribution accordingly. It’ll also facilitate refitting and allow you to add various supplementary components to your IT environment.

The base model is of black color. It comes with the following items:

Cooler in the upper part of the product;
8-way power distribution unit;

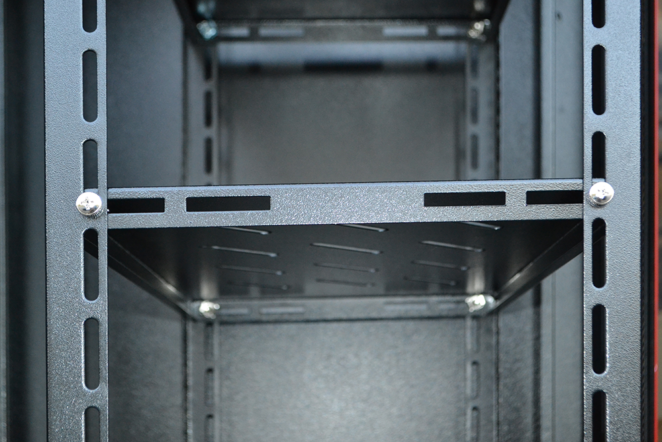

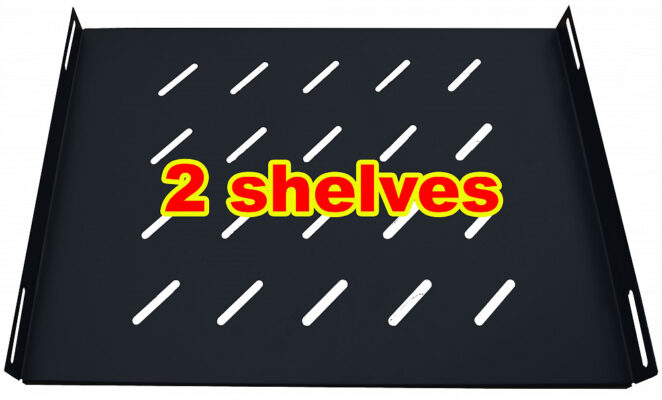

2 fixed shelves;
4 super flexible feet;
Front door made of glass put in a perforated frame manufactured using metal;
Brush-type panel for laying cables in both the upper and lower parts of the setup;
Mounting rails equipped with U-marking;
Kit of nuts, bolts, and screws.

Assembly schemeDownload (PDF)

Table of IP protection ratingsDownload (PDF)

• Height of the enclosure: 18U (901 mm)
• Width: 24″(600mm);
• Depth: 18″(450mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Kit contents: (1 fans, 2 Brash cable entries, 1 PDU,2 fix shelves, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs)
