- Incredible Kit contents (1 fan, 2 Brash cable entry, 1 PDU, 1 fix shelf, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs).
- Active ventilation in base model
- Brush strip panel for cable entry
- Flat and compact packaging

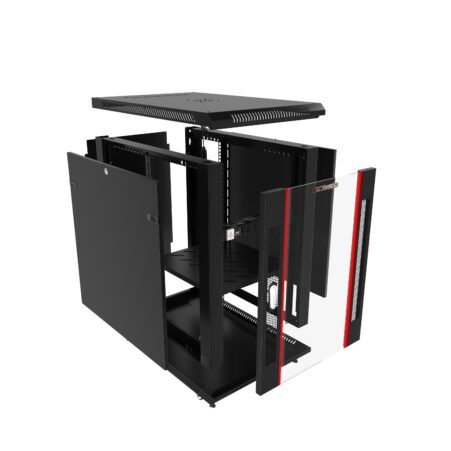

- Convenient to assemble design
Clear and simple installation
Technical Data

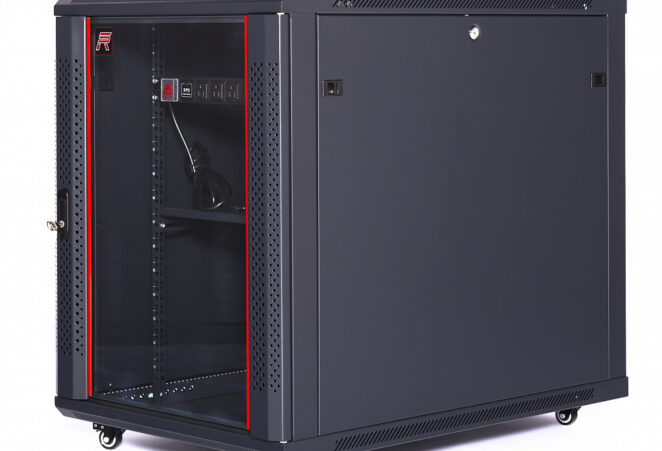

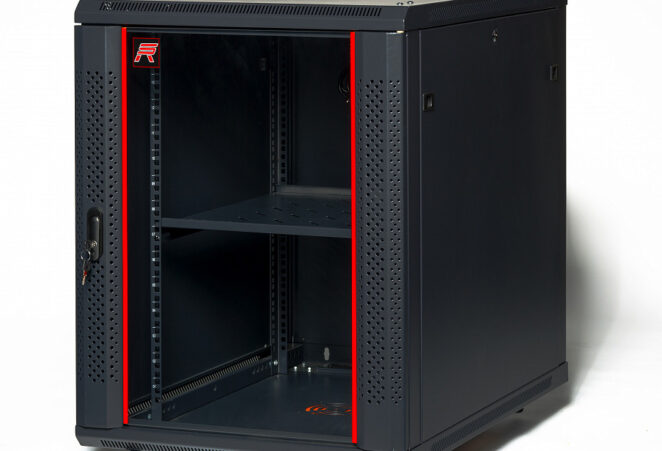

There are multiple perforation orifices on the front door. They make it possible to remove heated air from the cabinet and ensure the proper cooling of the equipment.
The latched lock located on the front door significantly improves the device’s appearance and simplifies the procedure for accessing the components of the IT setup.

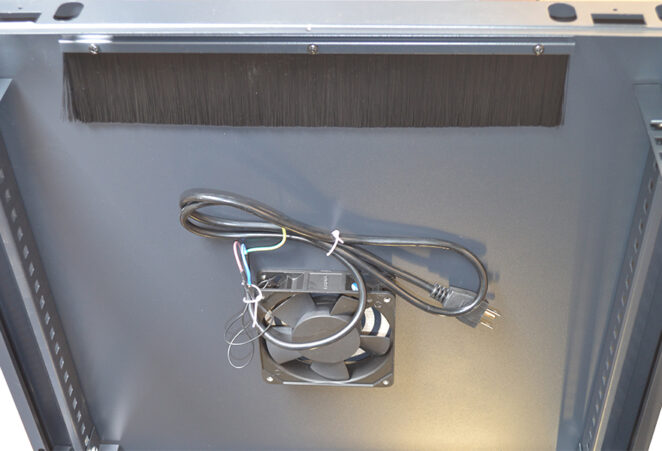

A brush-type cable gland can protect expensive equipment from the harmful effects of small electroconductive particles. It provides the opportunity to prevent electrical damage to the most important parts.

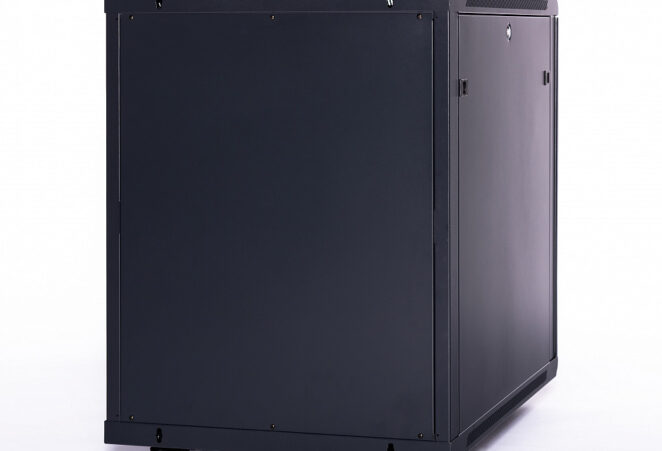

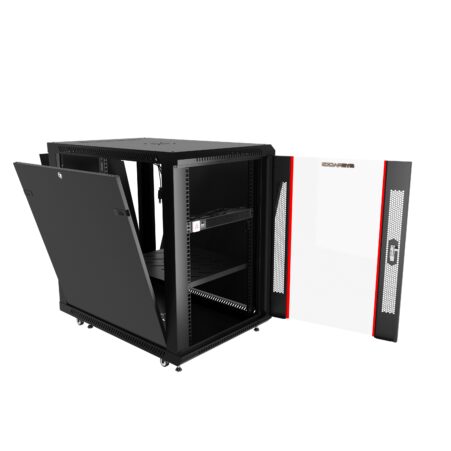

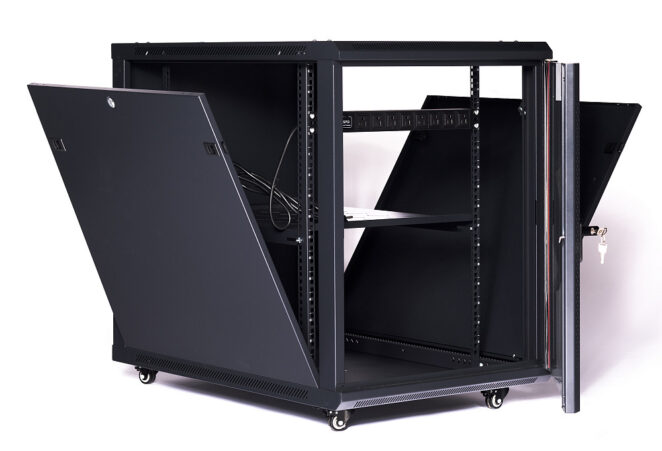

The available lockable and removable panels, along with the doors, minimize the possibility of manipulation with your confidential data or hardware by third parties. At the same time, all employees with the appropriate authority can easily handle the installation, maintenance, or updating of any components.

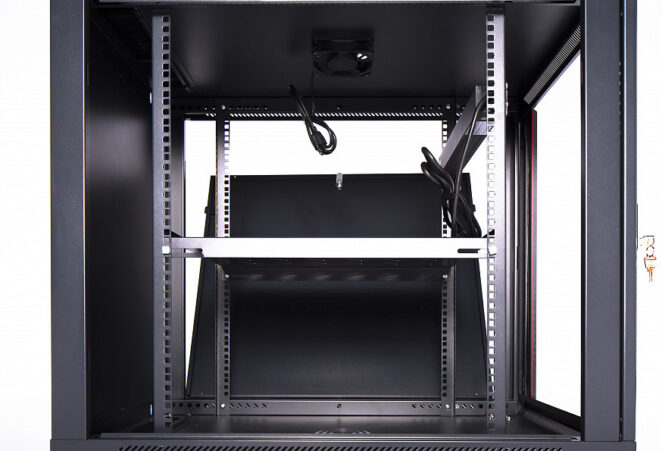

Being equipped with U-markings and square holes, the flexible mounting rails are designed to tailor the main and secondary appliances to the interior space so that they are suitable for use with the cabinet. The specific brand doesn’t matter. The U-marking significantly facilitates and speeds up the installation process, which also enables the user to find the optimal place to install the equipment.
Four casters make it possible to convert a wall-mounted model into a floor-standing version. Please do not exceed the indicated maximum value, though.
Thanks to the availability of 20 M6 mounting fixtures, you won’t need to purchase any additional instruments. You’ll have various nuts and bolts at your disposal.
A depth of 35 inches is typically regarded as the most acceptable parameter for mounting the most common types of telecommunications and audiovisual equipment, connecting panels, routers, etc. You can easily add new devices to your environment, and your work on IT projects will go smoothly in the future.
The basic model comes with the following items:

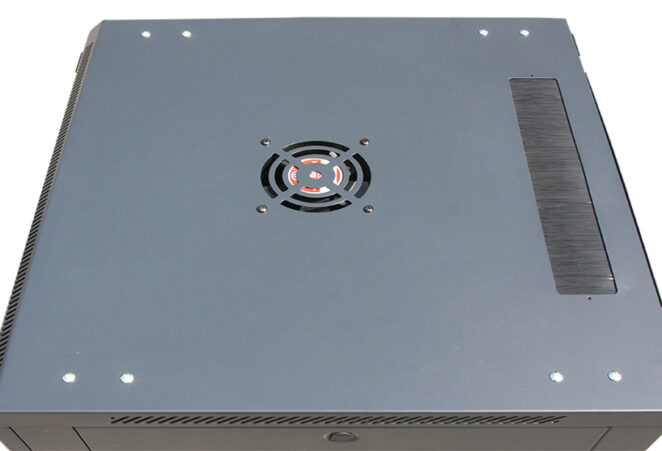

- Cooler in the upper part of the product;

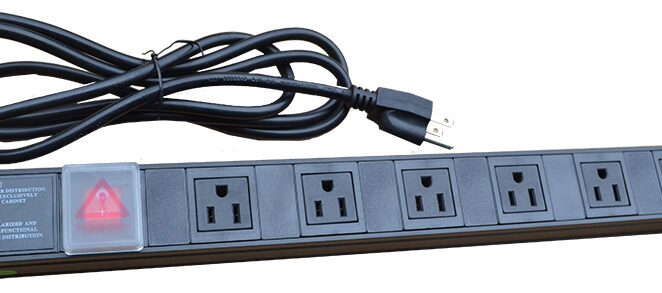

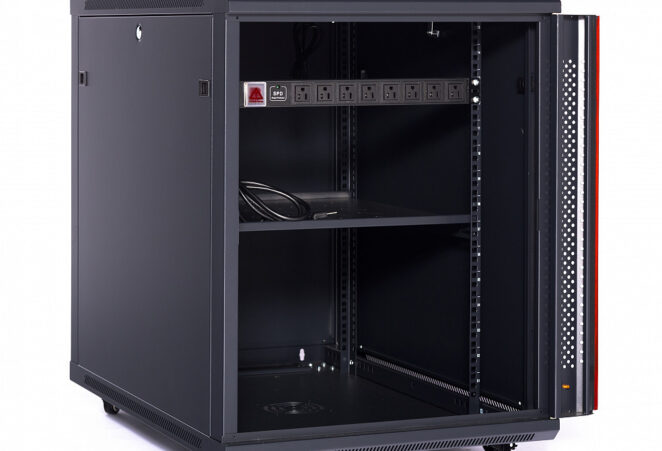

- 8-port power distribution unit;

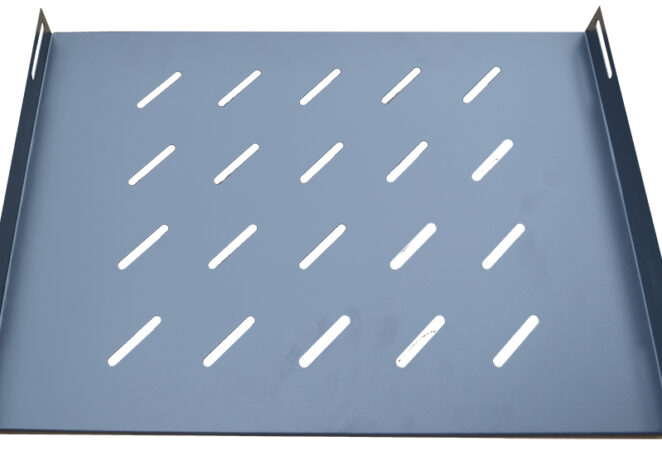

- 1 fixed shelf;
- 4 casters;
- Front door placed in a metal frame with perforation orifices;

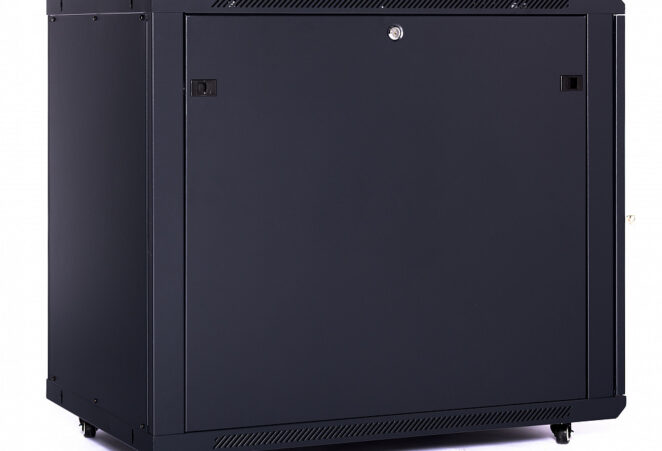

- Lockable and removable panels;
- A panel of brush type for inserting an electrical cable (in the upper and lower parts of the product);
- U-marking on the mounting rails;
- Kit of nuts and bolts, 20 pcs.

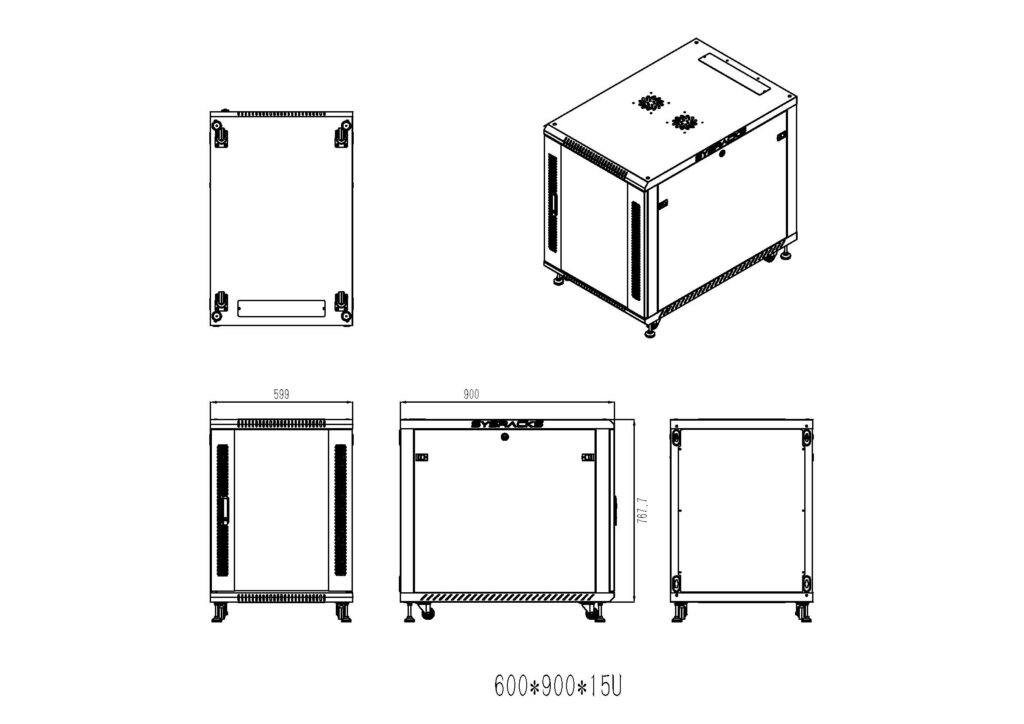

Overall dimensions:
- Internal depth: 35 inches (from door to back panel)
- Maximum allowable load: 133 pounds
- Color: Black (RAL 9005)
• Height of the enclosure: 15U
• Width: 24″(600mm);
• Depth: 35″(900mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Kit contents: (1 fans, 2 Brash cable entry, 1 PDU,1 fix shelf, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs)
