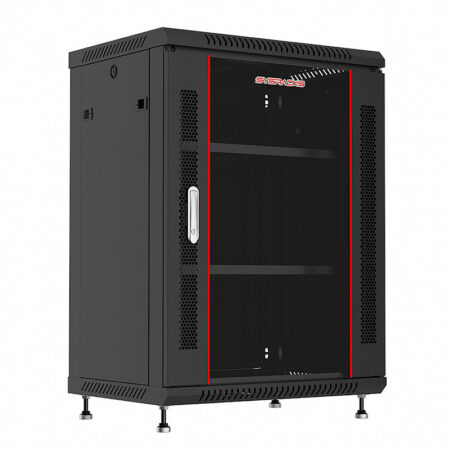

15U 18″ Depth Wall Mount 19″ Enclosure SRW 15.450 photo

15U 18" Depth Wall Mount 19" Enclosure SRW 15.450

Name: 15U 18" Depth Wall Mount 19" Enclosure SRW 15.450
Price: 210 USD
Availability: InStock
Rating: 5 (3 reviews)

210 USD

4 reviews

Transit within 4-6 business days

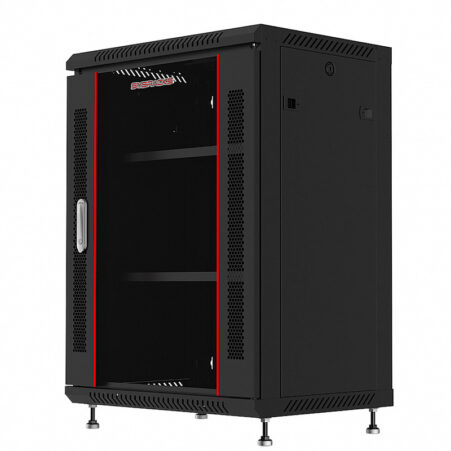

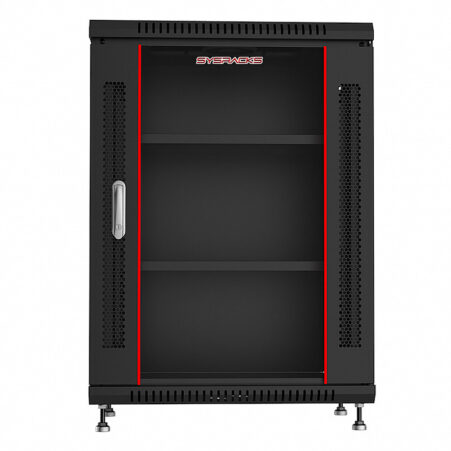

19" Wall Mount Server Rack Cabinet 15U (24"w x18"d x30"h) (600x450x769mm.) (WxDxH), Glass Door (1PDU, 1 fan, 2 shelves, 4 feet, 2 brush cable entries)

Availability

In Stock

Weight

55 lbs

Width

24 in

Front door

Glass

Height

15U

Color

Depth

18 in (450mm)

Quantity of all packages

1pcs

Rail-to-rail max distance

14 in (356mm)

Size of package(-s)

38*33*8

Product information

Benefits

Overview

Instructions & Downloads

Specifications

Shipping cost estimation

Reviews(0)

Incredible Kit contents (1 PDU, 1 fan, 2 Brash cable entry, 1 fix shelf, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs).
Active ventilation in base model
Brush strip panel for cable entry
Flat and compact packaging
Convenient to assemble design

Clear and simple installation

Technical Data

There are a lot of perforation orifices on the front door. This ensures the evacuation of excessively heated air from the server cabinet and improves airflow distribution. As a result, you’ll get optimal cooling of your hardware.

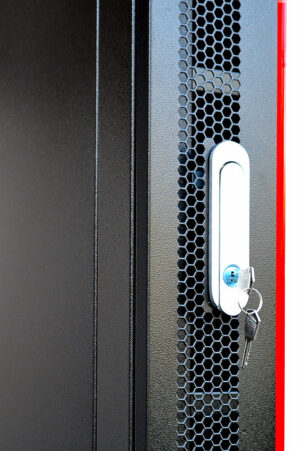

The ergonomic push lock makes the product appearance particularly attractive while simplifying access to the components of your setup.
The brush-type cable gland protects the devices from possible electrical damage caused by fine particles akin to dust.

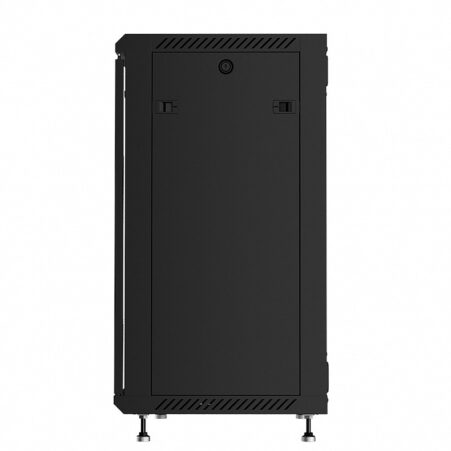

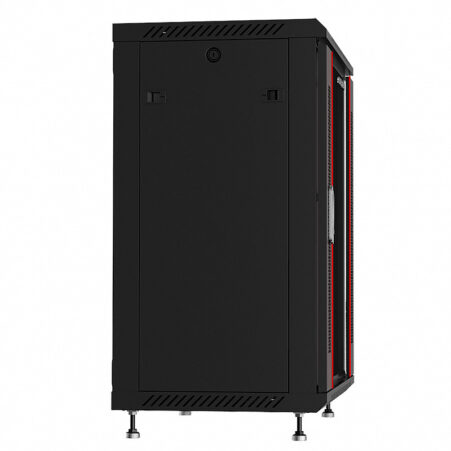

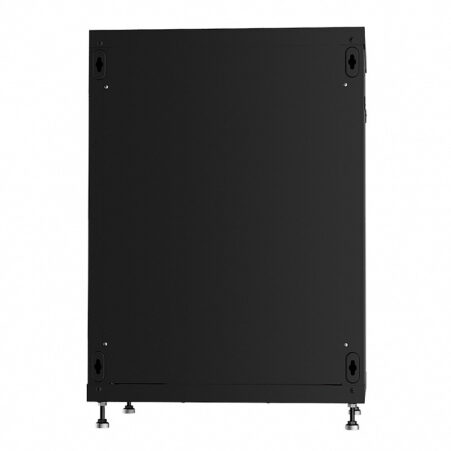

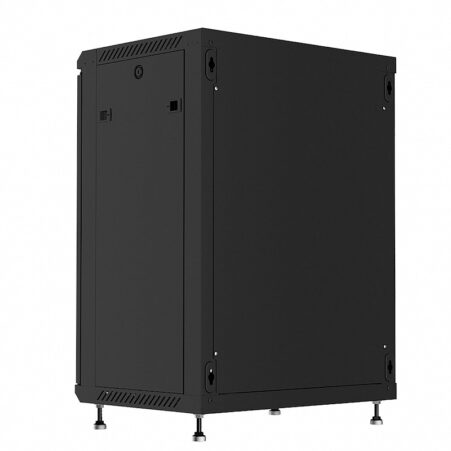

Both the front and rear side of the cabinet have lock-up, removable panels supplied together with 2 keys. Their function is to strengthen protection against potential threats and secure your IT infrastructure.
Dismountable panels will enable you to install or maintain a wide variety of devices in a matter of minutes.

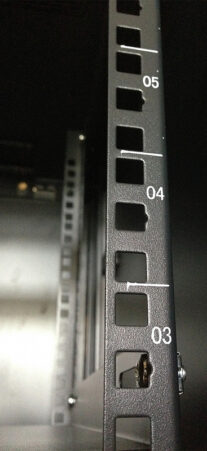

Customizable mounting rails with special U-markings and square orifices render it probable to significantly speed up installation and correctly position all the elements of your environment. These rails will work appropriately with the vast majority of devices.
Four flexible standing legs will help you turn a floor-standing cabinet into a wall-mounted cabinet. Still, under no circumstances should you exceed the established maximum load value, that is, 133 pounds.

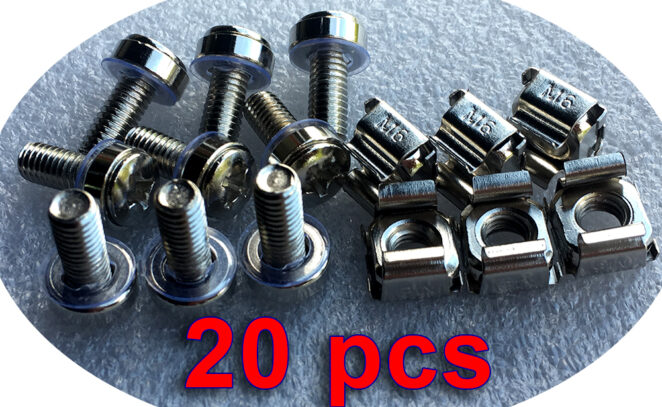

The product also comes with a complete set of 20 M6 nuts and screws, which makes installing the cabinet as easy as falling off a log. You also won’t have to purchase any auxiliary fasteners.
An external depth of 18 inches (450 mm) is highly practical and viable. This value will allow you to install a wide array of devices, more specifically telecommunications equipment, digital video recorders, routers, switches, etc. What’s more, you’ll have proper airflow distribution and cable power. You can also easily retrofit your server environment, where necessary.

The base model is black in color and features the following components:

Cooler in the upper section of the product;

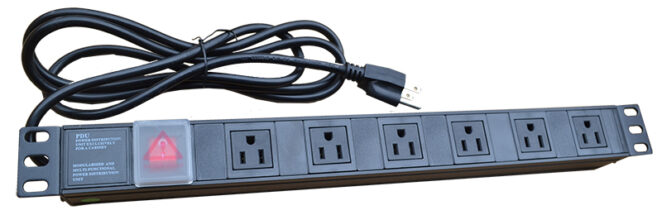

8-port power distribution unit;

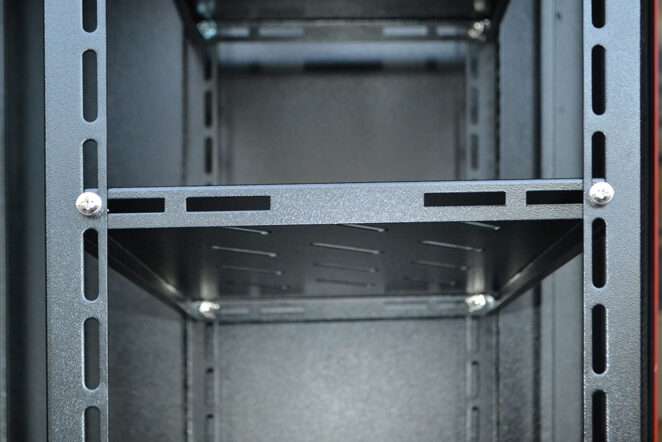

1 fixed shelf;
4 movable legs;
Mesh front door and side panels;
A brush panel for laying cables in the upper and lower sections of the rack;
Mounting rails with U-markings;
A set of nuts and screws.

Assembly schemeDownload (PDF)

Table of IP protection ratingsDownload (PDF)

• Height of the enclosure: 15U (769mm)
• Width: 24″(600mm);
• Depth: 18″(450mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005
Kit contents: (1 PDU, 1 fans, 2 Brash cable entry, 2 fix shelves, 4 legs, 1 Latch locks, set of screws and nuts(20 pcs)

Select country

Select state (province)

Shopping & Handling:

USD

tom jordan

2023/05/23

Absolutely thrilled with this wall-mounted telecom rack. It is compact and offers secure storage for my equipment. Highly recommend.

Amy

2022/12/15

This 15u server rack cabinet has just the right size for my home hardware. It doesn't take up a lot of space and nevertheless accommodates all the needed equipment.

Jack

2022/07/22

A great server rack for the price. Perfect dimensions: 15U 24\"X18\"X30\". Easy to install. Highly recommend.
