It is strongly recommended using the cabinet as a floor (free) standing unit, although the structure allows mounting the cabinet on vertical surfaces. Using the cabinet as wall mount unit is the user's responsibility. For this reason the cabinet is supplied with a set of casters
Availability
In Stock
Weight
64 lbs
Size of package
26x31x9 mm
Quantity of all packages
1pcs
Size of package(-s)
37*28*10
Width
24 in
Depth
35 in (900mm)
Rail-to-rail max distance
31 in (788mm)
Front door
Mesh
Side panels
Mesh
Color
Height
12U
• Height of the enclosure: 12U
• Width (External): 24″(600mm);
• Depth (External): 35″(900mm)
Framework:
• Prefabricated profile sections.
Cable input:
• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors
• Active – by setting in the top fan module (all models)
IP protection:
• IP20: Mesh front door and mesh side panels
Capacity:
• Static load not exceeding 133 lbs (on casters) or 250 lbs (on feet).
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005

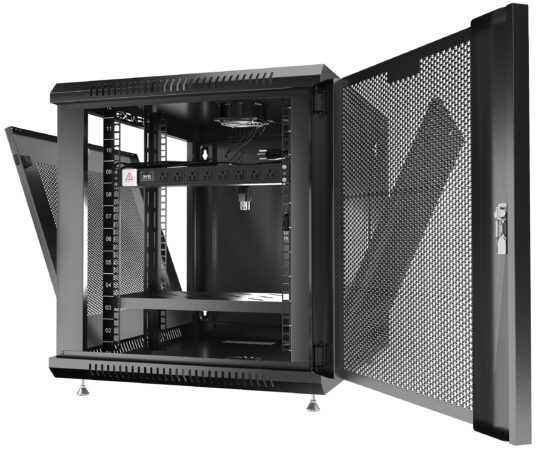

Kit contents: 1 fan, 2 Brush cable entries, 1 PDU,1 fixed shelf, 4 casters, 4 feet, 3 latch locks, set of cage nuts and bolts (20 pcs).
The server room cabinet is a good space-saving solution and feels well-built. However, cable management can be a bit tricky if you have a lot of equipment. Once everything is in place, it keeps things organized and ventilated.
