It is strongly recommended using the cabinet as a floor (free) standing unit, although the structure allows mounting the cabinet on vertical surfaces. Using the cabinet as wall mount unit is the user's responsibility. For this reason, the cabinet is supplied with a set of castors
Availability
In Stock
Weight
64 lbs
Size of package
26x31x9 mm
Width
24 in
Depth
35 in (900mm)
Front door
Glass
Height
12U
Color
Quantity of all packages
1pcs
Rail-to-rail max distance
31 in (788mm)
Size of package(-s)
37*28*10
Clear and simple installation

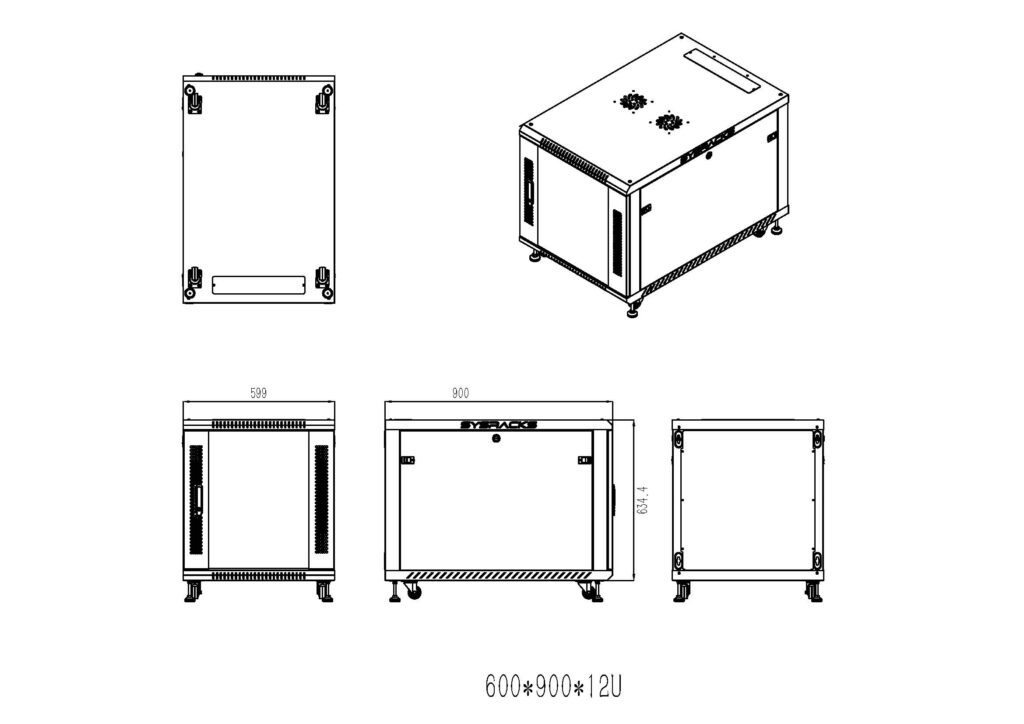

• Height of the enclosure: 12U
• Width: 24″(600mm);
• Depth: 35″(900mm)
Framework:

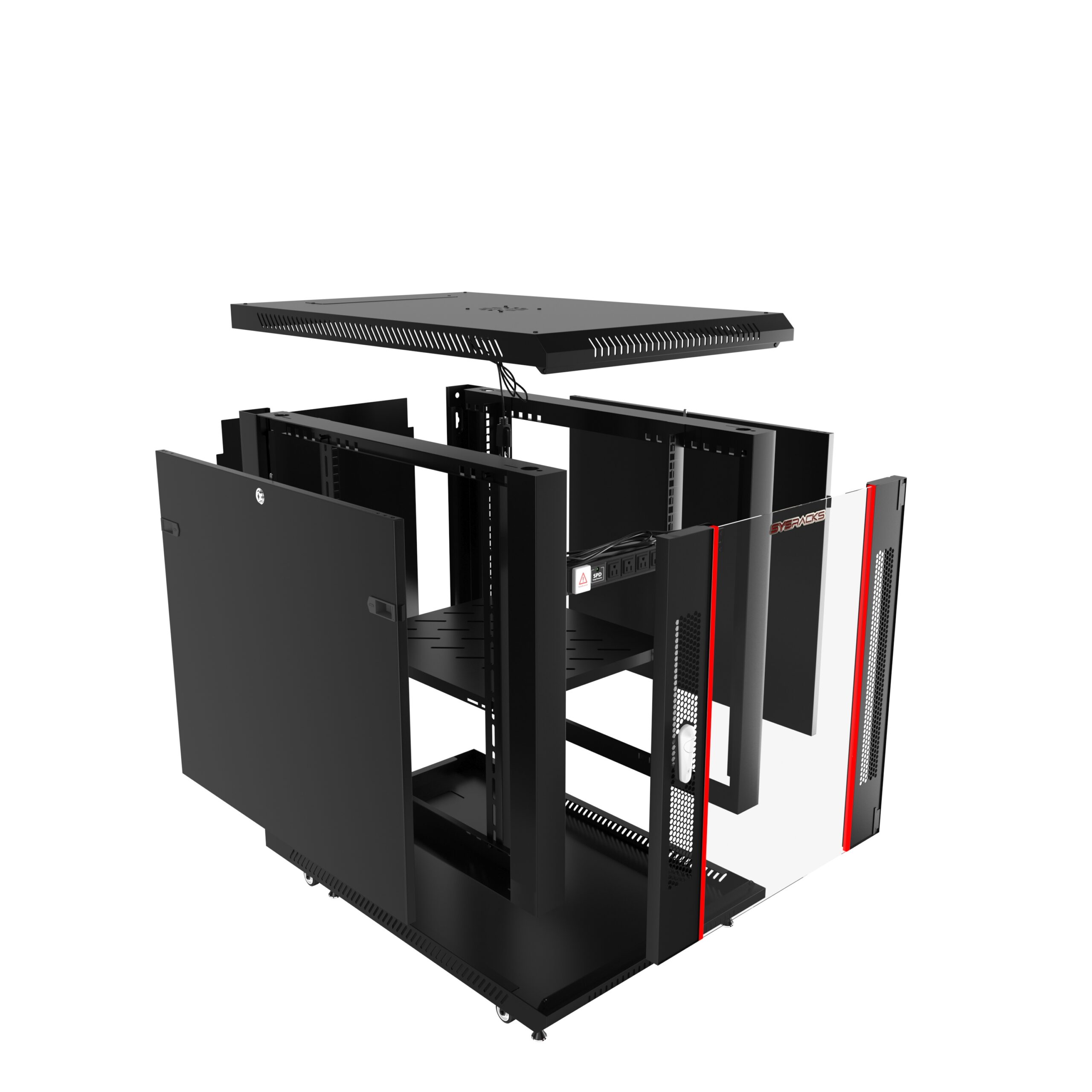

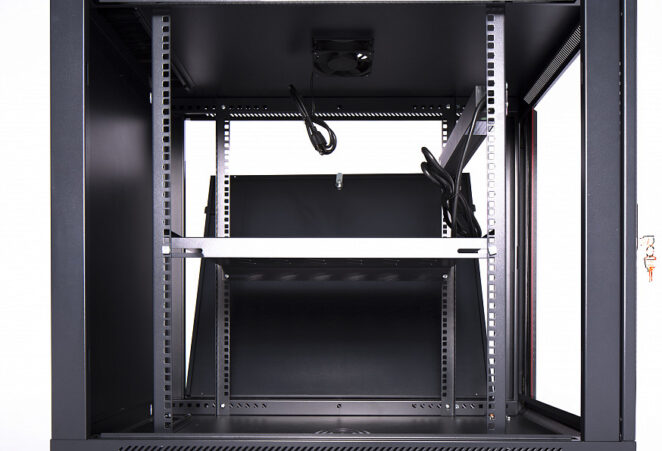

• Prefabricated profile sections.
Cable input:

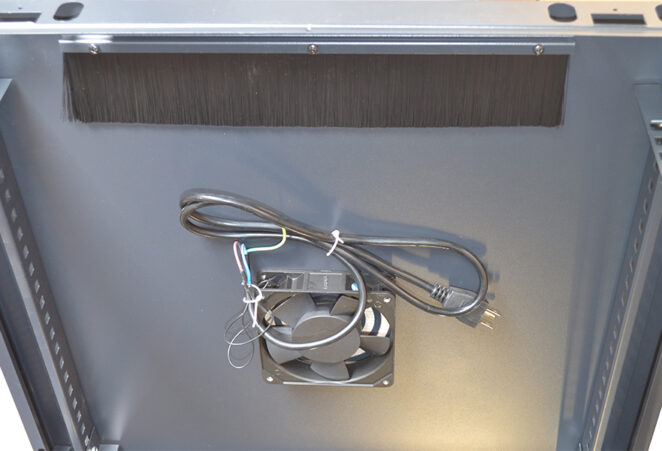

• Top and bottom have 2 dust-tight brush panels with cable managers.
Active ventilation:
• Passive – convection heat flow due to perforation front and rear doors

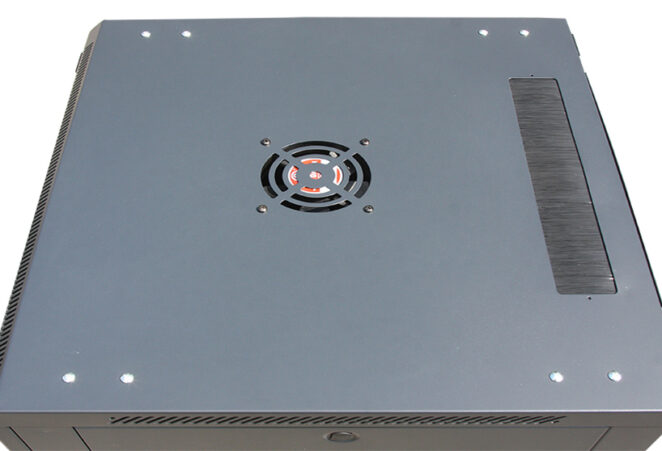

• Active – by setting in the top fan module (all models)
IP protection:
• IP41: glass/perforated door
• IP20: solid metal door
Capacity:
• Static load not exceeding 133 lb.
Material:
• Rolled steel profile
• Frame thickness 1.5mm; 19” profiles 1.5mm; other components parts 1.0-1.2mm.
Coating:
• Powder paint with degreasing and anticorrosive phosphate
Color:
• Black: RAL9005

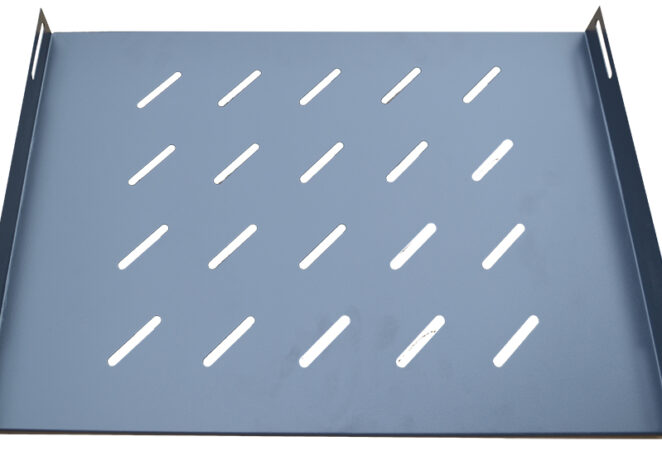

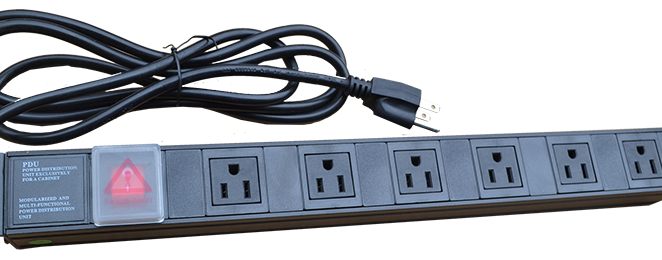

Kit contents: (1 fans, 2 Brash cable entry, 1 PDU,1 fix shelf, 4 castors, 1 Latch locks, set of screws and nuts(20 pcs)
